INPUT HA/INSERT function
258 PM5D/PM5D-RH Owner’s Manual Reference section
INPUT HA/INSERT function
Here you can make settings for internal HAs (PM5D-RH
model only) or external HAs assigned to input channels.
A +48V
B HPF (High Pass Filter)
C Cutoff frequency
D GAIN
E Input port
These items are the same as in the OUTPUT INSERT
function INSERT IN MIX1-24 screen and INSERT IN
MATRIX/STEREO/MONITOR screen (➥ p.224).
F Channel
This area shows the number and name of the channel
you are editing. Two paired channels are indicated by a
heart symbol displayed between them.
Note
• Items
1
–
4
are not shown for channels to which nothing is
patched, or for channels patched to an input port that does
not have a HA. Items
2
and
3
are not shown for channels
patched to a port that has no high pass filter.
• To assign input ports to input channels, use the INPUT
PATCH screen (INPUT PATCH function).
• HA settings are not linked even if two channels are paired.
However, the GAIN knob setting is linked for HAs whose
GANG button is turned on in the HA screen (SYS/W.CLOCK
function).
G LIBRARY button
This button displays the HA LIBRARY screen
(➥ p.208), where you can store/recall internal HA or
external HA settings as library items.
Hint
The HA settings you edit in this screen are also reflected in
the HA screen (SYS/W.CLOCK function).

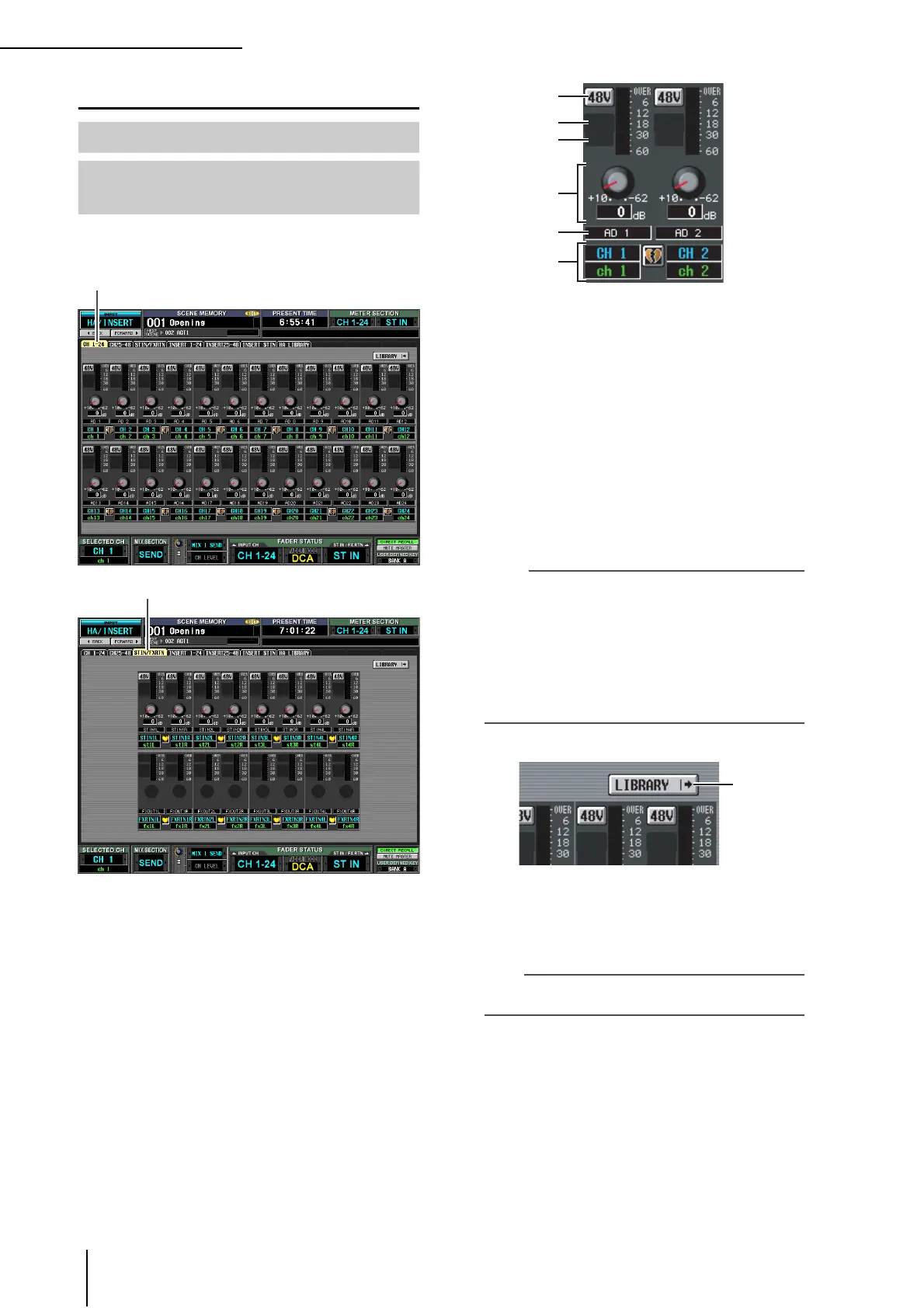

CH 1-24 (Input channel 1-24) screen
STIN/FXRTN (ST IN/FXRTN channel)
screen
CH 1-24
STIN/FXRTN
1
2
3
5
6
4
7
To Next Page
