PM5D/PM5D-RH Owner’s Manual Reference section 213
Information shown
in the display
Function
menu
Global
functions
Output
functions
Input
functions
Appendices

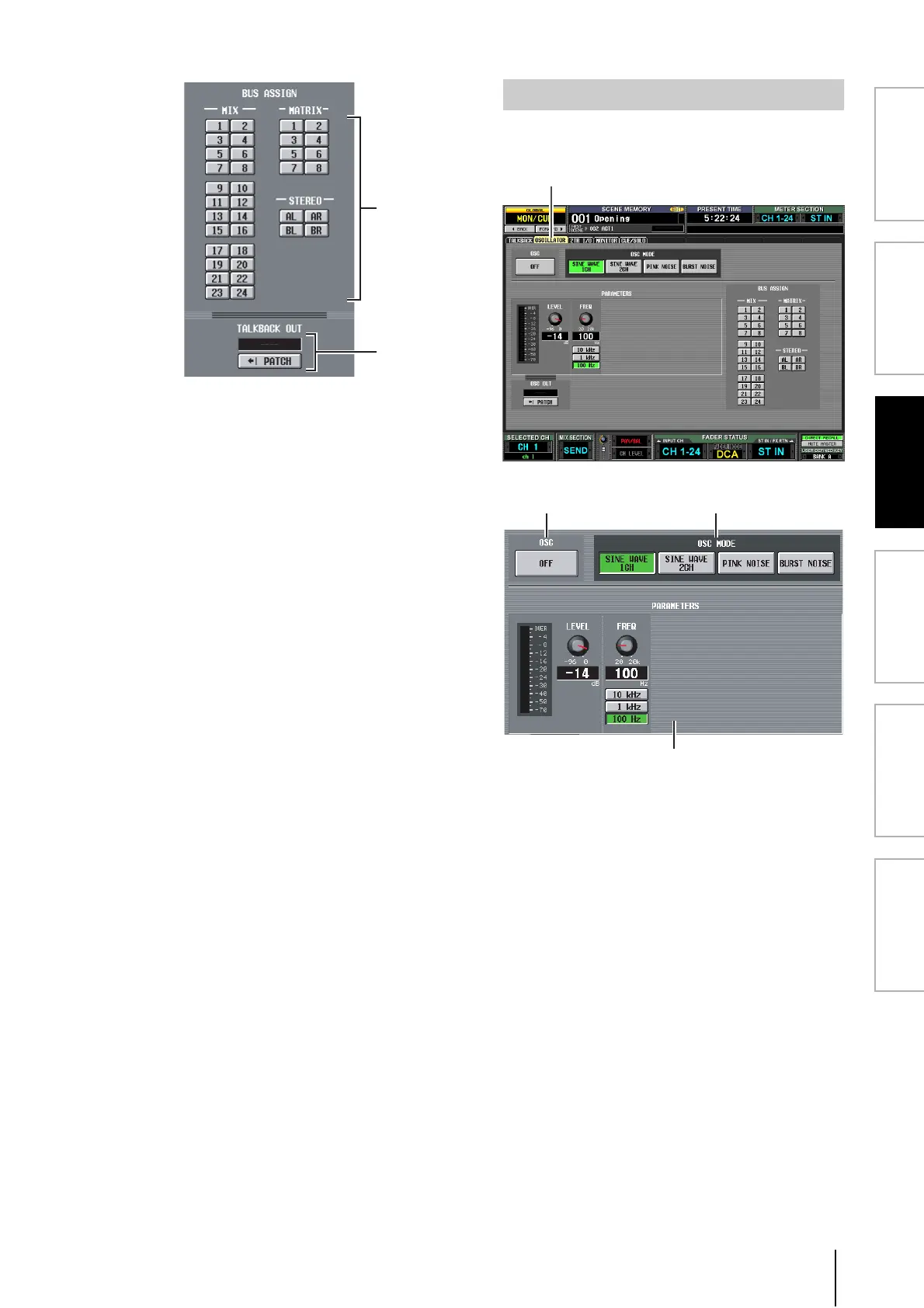

I BUS ASSIGN
Here you can select the bus(es) or output jack(s) from
which the talkback signal will be sent. (Multiple selec-
tions are allowed.)
MIX 1–24 . . . . . . . . MIX bus 1–24
MATRIX 1–8 . . . . . MATRIX bus 1–8
ST A L/R . . . . . . . . . STEREO A bus L/R channels
ST B L/R . . . . . . . . . STEREO B bus L/R channels
J TALKBACK OUT (Talkback direct output)
This indicates the channel of the output jack / slot that
is selected as the output destination for direct output of
the talkback signal. If more than one output destina-
tion is patched, “...” will be displayed following the
name of the output destination that was found first. If
you want to change the output destination, click the
PATCH button to access the OUTPUT PATCH screen.
’Here you can make settings and perform operations
related to the internal oscillator.
A OSC ON/OFF (Oscillator on/off)
Turns the Oscillator on/off. This is linked with the
OSCILLATOR [ON] switch of the top panel.
B OSC MODE (Oscillator mode)
These buttons select the waveform or type of noise pro-
duced by the oscillator.
SINE WAVE 1CH . Sine wave x 1 channel
SINE WAVE 2CH . Sine wave x 2 channels
PINK NOISE . . . . . Pink noise
BURST NOISE . . . . Burst noise (repeated output of
pink noise)
C PARAMETERS
Here you can set various items according to the selec-
tion in (
2).
9
J
OSCILLATOR screen
3
To Next Page
