Here you can make settings for LCR mode, which allows
three-channel playback by adding a CENTER channel to
the L/R channels of the STEREO bus.
Except for the fact that the send-sources are input chan-
nels, the display and operations are the same as in the
MATRIX/ST function LCR screen. Refer to p.242.

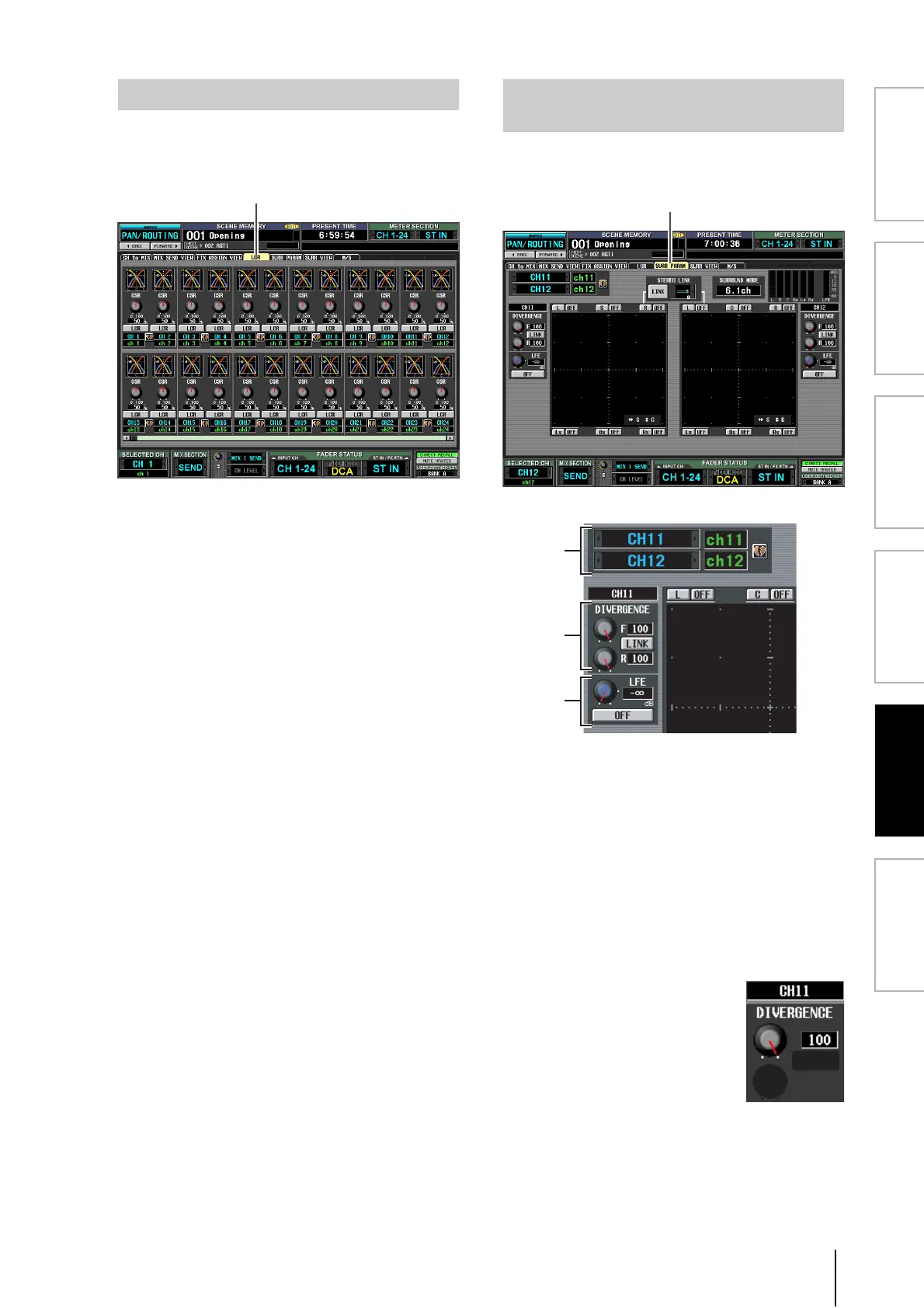

Here you can perform realtime control of surround pan-
ning for the two currently selected input channels.
A Channel selection
Select the two adjacent odd-numbered/even-num-
bered input channels (or ST IN channel L/R) that you
want to control. The names of these channels are dis-
played at the right.
B DIVERGENCE
These controls specify the proportion at which the sig-
nals are sent to each surround bus when the input
channel is positioned in the center. Depending on the
currently selected surround mode, the displayed
parameters will differ as follows.
❏ If Surround Mode = 3-1ch/5.1ch
A knob for controlling the front
divergence is displayed. Use this
knob to specify the proportion (0–
100) at which a signal positioned
in the center will be sent to the
center bus (C) and the left/right
buses (L, R). With a setting of 0
the signal will be sent only to the
left/right buses, and with a setting
of 100 it will be sent only to the center bus. With a set-
ting of 50, the signal will be sent at the same level to the
left/right and center buses.
