Here you can recall, store, rename, or delete items in the
output patch library.
A EDIT
When you click this button, the OUTPUT PATCH
screen will appear.
B Patch information for the current scene
This area shows the output patch settings for the cur-
rent scene.
C RECALL
Recalls the output patch library item selected in the list
into memory.
D STORE
Stores the current settings of the OUTPUT PATCH
screen into the location selected in the list. When you
click this button a window will appear, allowing you to
name and save the settings.
E TITLE EDIT
Edits the title of the library item selected in the list.
When you click this button a window will appear,
allowing you to edit the title.
F CLEAR
Deletes the library item selected in the list. When you
click this button, a confirmation message will appear.
Note
Library items with an “R” displayed in the right column of the
list are read-only. Read-only items cannot be stored,
renamed, or deleted.
G Patch settings of the library item
Displays the settings of the library item selected in the
list.
H Library list
Use the scroll bar to select the library item on which
you want to perform an operation. The selected library
item will move to the center, and will be highlighted.

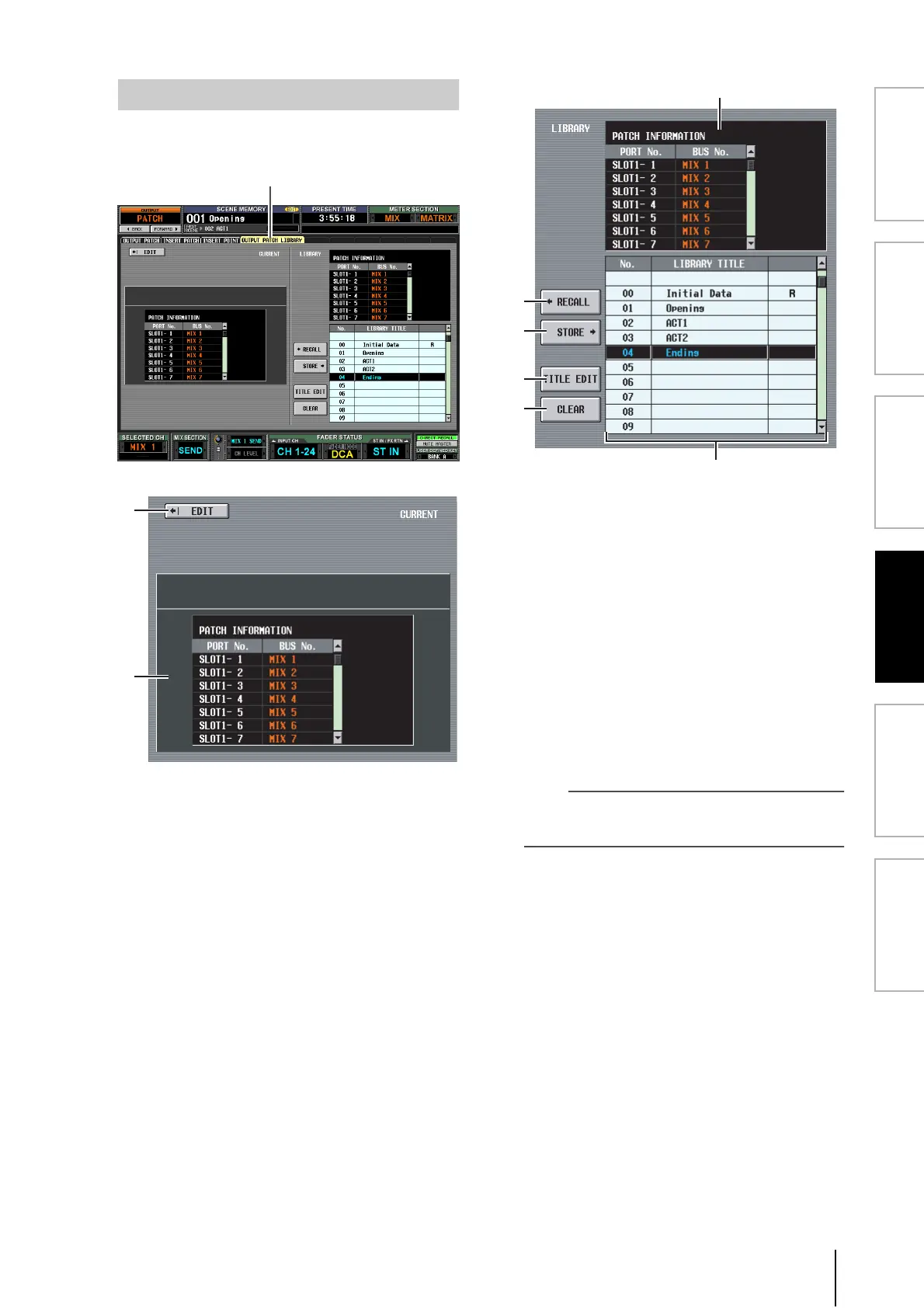

OUTPUT PATCH LIBRARY screen
