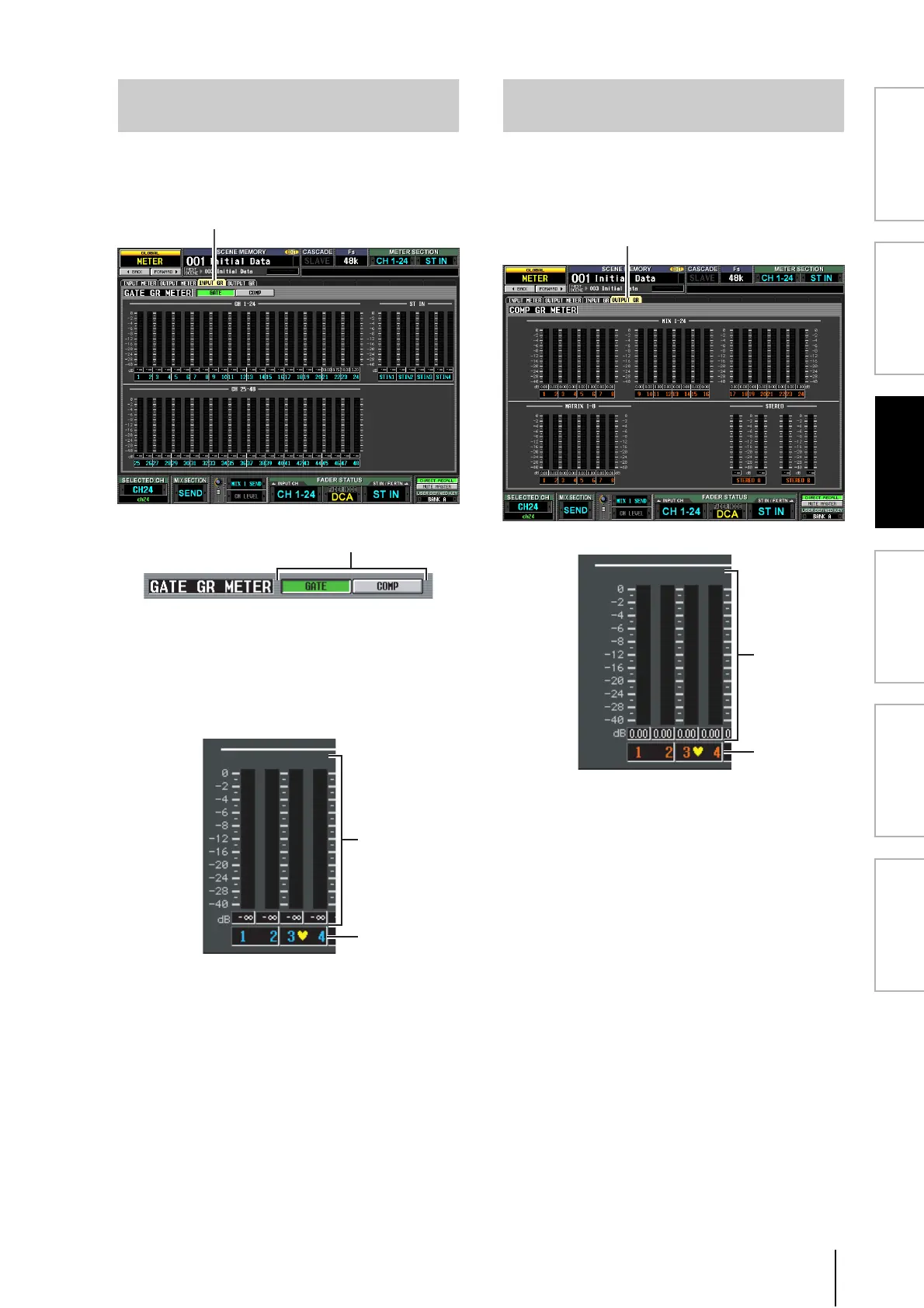

This screen contains meters that show the amount of gain
reduction produced by the gate/compressor for each input
channel (input channels 1–48, ST IN channels 1–4).
A GATE/COMP (Gate / Compressor)
These buttons select either Gate or Compressor as the
processor whose gain reduction amount is shown by
the meters. The display at the left will change accord-
ing to your selection.
B Meters
These peak level meters indicate the amount of gain
reduction for each channel. The current fader value is
shown in the box below.
C Pair icon
This indicates the pairing status of two adjacent odd-
numbered/even-numbered channels.
This screen contains meters that show the amount of gain
reduction produced by the compressor for each output
channel (MIX channels 1–24, MATRIX channels 1–8, STE-
REO A/B channels).
A Meters
These peak level meters indicate the amount of gain
reduction for each channel. The current master level
value is shown in the box below.
B Pair icon
This indicates the pairing status of two adjacent odd-
numbered/even-numbered channels.
INPUT GR (Input Gain Reduction)
screen
INPUT GR
2
3
OUTPUT GR (Output Gain Reduction)
screen
1
2
