INPUT ø/EQ function
260 PM5D/PM5D-RH Owner’s Manual Reference section
This screen is the same as HA LIBRARY in the SYS/
W.CLOCK function (➥ p.208).

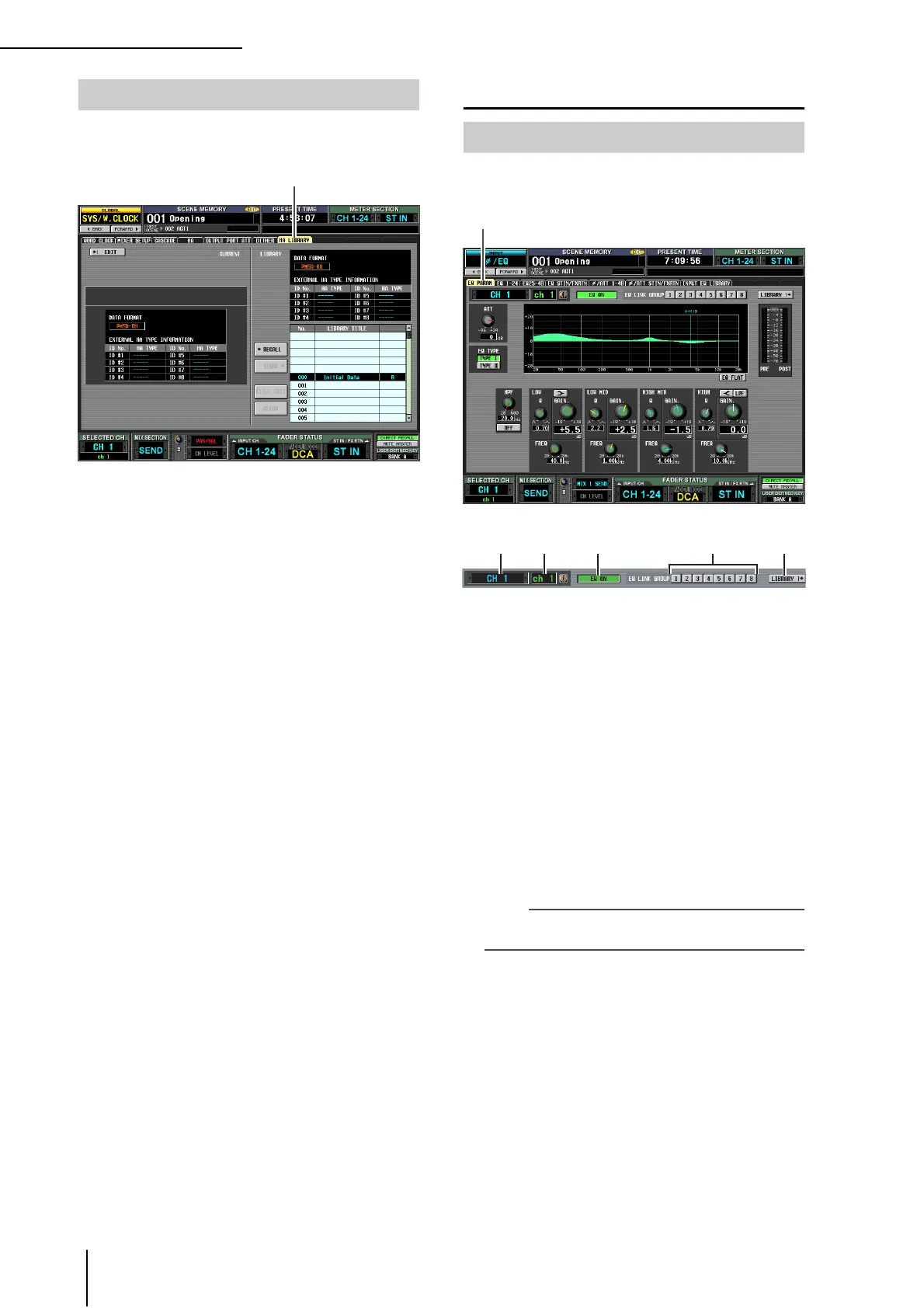

INPUT ø/EQ function
Here you can edit the EQ parameters of the selected input
channel.
A Channel selection
Selects the input channel (input channel 1–48, STIN
channel 1–4 L/R, FXRTN channel 1–4 L/R).
B Name
This is the name of the currently selected input chan-
nel. If the input channel is paired (or if a ST IN channel
or FX RTN channel is selected), a heart symbol is dis-
played at the right. For an input channel, you can click
this symbol to enable/disable pairing.
C EQ ON/OFF
Turns the EQ on/off for that channel.
D EQ LINK GROUP
Selects the EQ link group (1–8) to which the EQ of that
channel belongs. EQ parameters are linked for input
channels belonging to the same group.
Note
The input channel EQ link groups are independent from the
output channel EQ link groups.
E LIBRARY
This button accesses the INPUT EQ LIBRARY screen
(➥ p.263), where you can store/recall input channel
EQ library settings.
HA LIBRARY screen
HA LIBRARY
EQ PARAM (EQ parameter) screen
EQ PARAM
1 2 3 54

Yamaha PM5D Specifications

General

Type	Digital Mixing Console
Sampling Frequency	44.1kHz, 48kHz
EQ	4-band parametric EQ per channel
A/D Conversion	24-bit
D/A Conversion	24-bit
Number of Output Channels	24
Internal Processing	32bit
Metering	LED level meters
Frequency Response	20Hz - 20kHz
THD+N	<0.05%
Connectivity	MIDI, Ethernet
Dynamic Processing	Gate, compressor, limiter per channel
Number of Input Channels	48 mono + 4 stereo
Dynamic Range	110 dB typ
