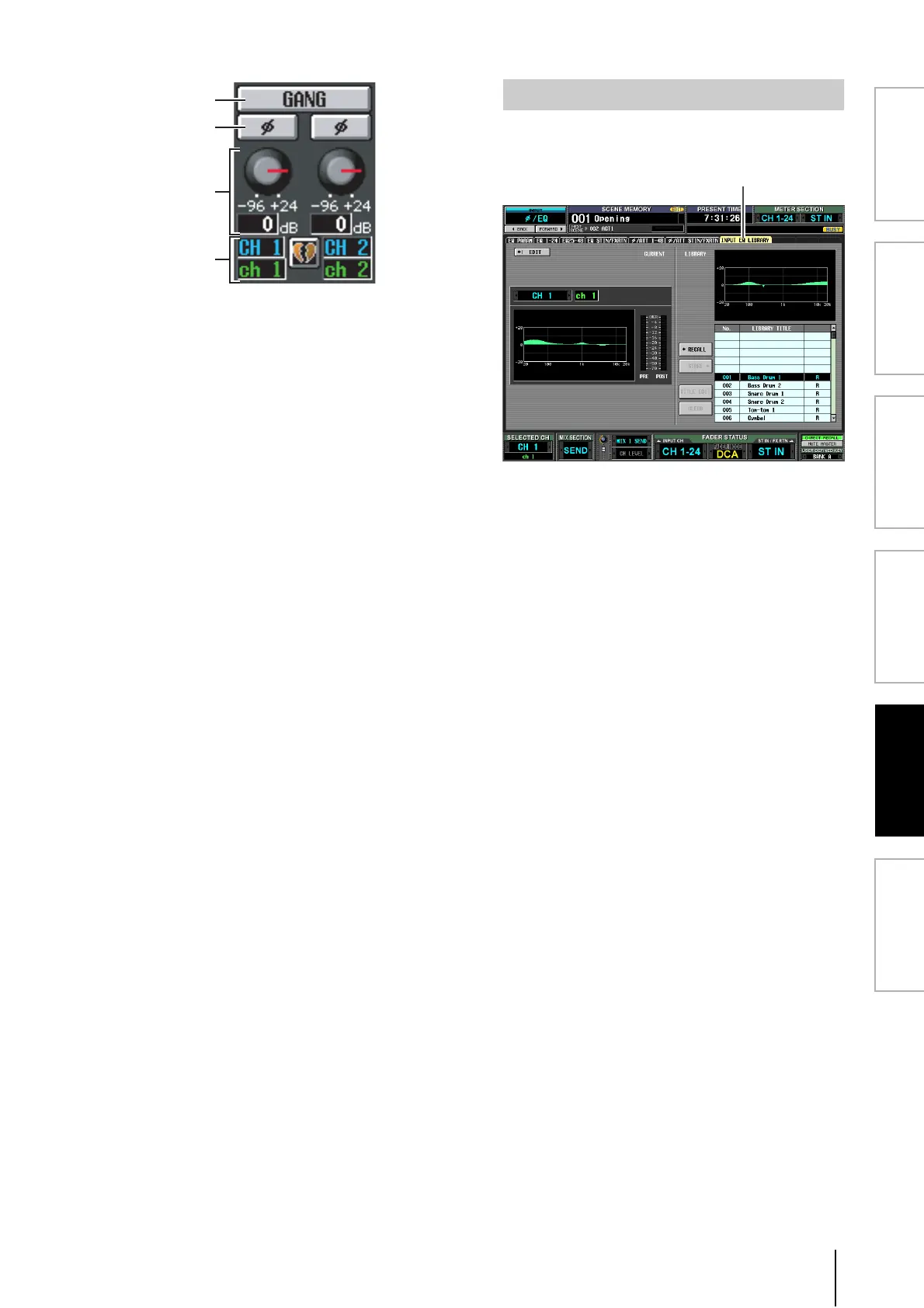

A GANG
When you turn this button on, attenuation/gain set-
tings will be linked for adjacent odd-numbered/even-
numbered channels (or the L/R sides of an STIN/
FXRTN channel).
If the settings are different when you turned the but-
ton on, they will maintain their relative difference
while linked.
B ø (Phase)
This button inverts the phase of each channel’s signal
following AD conversion.
C Attenuation/gain
For each channel, you can adjust the amount of attenu-
ation/gain immediately following AD conversion over
a range of –96 dB to +24 dB. This is linked with the
ATT knob of the EQ PARAM screen. The current value
is displayed in the box located below the knob.
D Channel
This is the number and name of the channel. If two
adjacent odd-numbered/even-numbered channels are
paired (or if a STIN channel or FXRTN channel is dis-
played), a heart symbol is displayed between the two
channels.
Here you can recall, store, rename, or delete items in the
input EQ library.
Except for the fact that these are EQ settings for the input
channels, display and operations are the same as in the
OUTPUT EQ function OUTPUT EQ LIBRARY screen.
Refer to p.228.
