Yamaha PM5D User Manual

4 Connections and setup
28 PM5D/PM5D-RH Owner’s Manual Operating section
MIX OUT jacks 1–24, MATRIX OUT jacks 1–8, and STE-
REO OUT A/B jacks respectively output the signal from
MIX channels 1–24, MATRIX channels 1–8, and the STE-
REO A/B channels.
The MONITOR OUT jacks output the monitor signal that
is selected in the top panel MONITOR section.
The CUE OUT jacks output the cue monitor signal of the
channel that is currently selected by its [CUE] key.

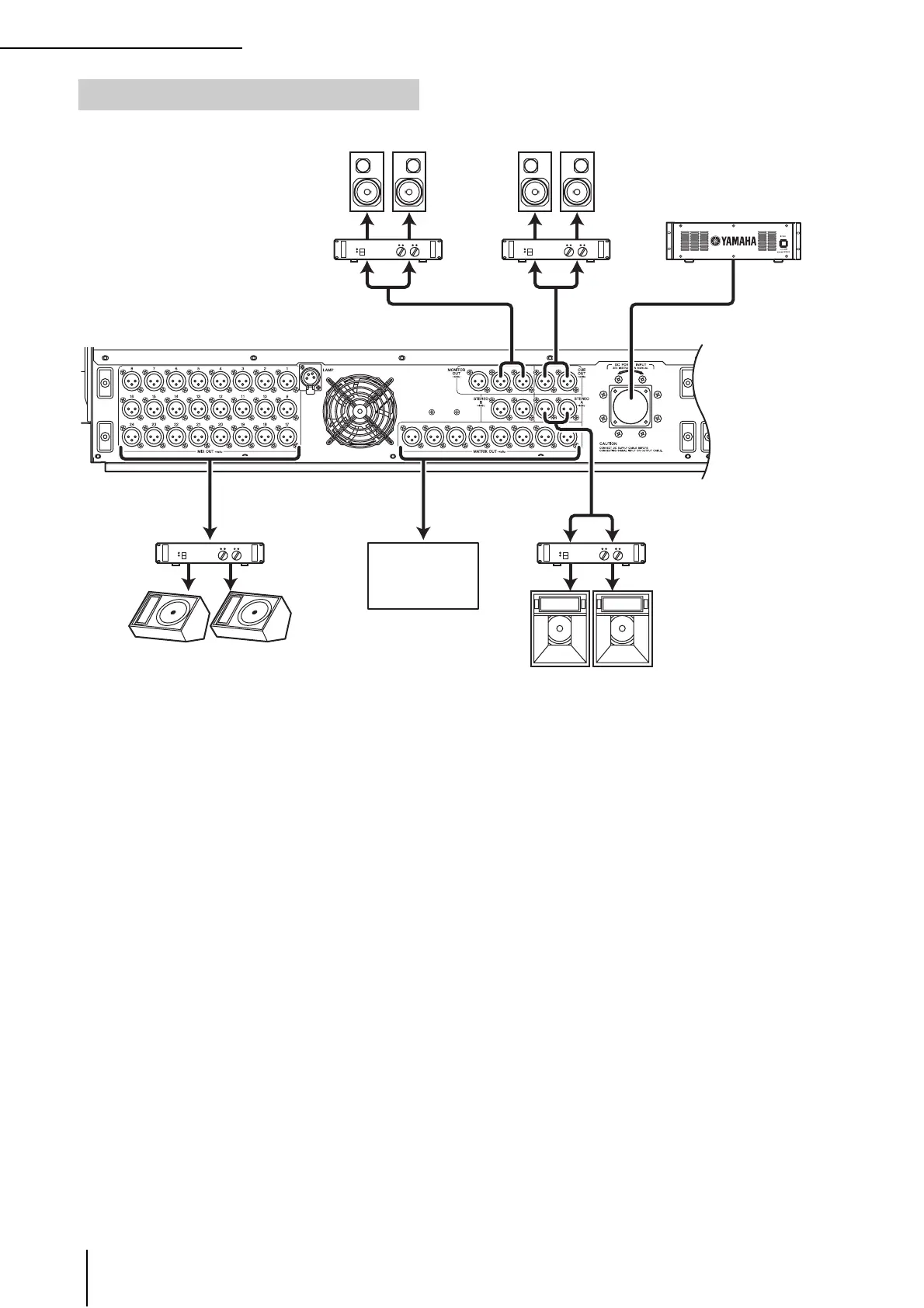

Analog output connections
L
A
C
RLRL
RLRL
87654321
MIX OUT MATRIX OUT
MONITOR OUT DC POWER INPUTCUE OUT
STEREO OUT
Monitor speakers Monitor speakers
PW800W power supply
Monitor speakers
(foldback)
Main speakers
Recorder, relay
vehicle, etc.

Yamaha PM5D Specifications

General

Type	Digital Mixing Console
Sampling Frequency	44.1kHz, 48kHz
EQ	4-band parametric EQ per channel
A/D Conversion	24-bit
D/A Conversion	24-bit
Number of Output Channels	24
Internal Processing	32bit
Metering	LED level meters
Frequency Response	20Hz - 20kHz
THD+N	<0.05%
Connectivity	MIDI, Ethernet
Dynamic Processing	Gate, compressor, limiter per channel
Number of Input Channels	48 mono + 4 stereo
Dynamic Range	110 dB typ
