PM5D/PM5D-RH Owner’s Manual Operating section 47
6
Output channel operations
This chapter explains the functions and operation of each section related to output channels.
About the output channels

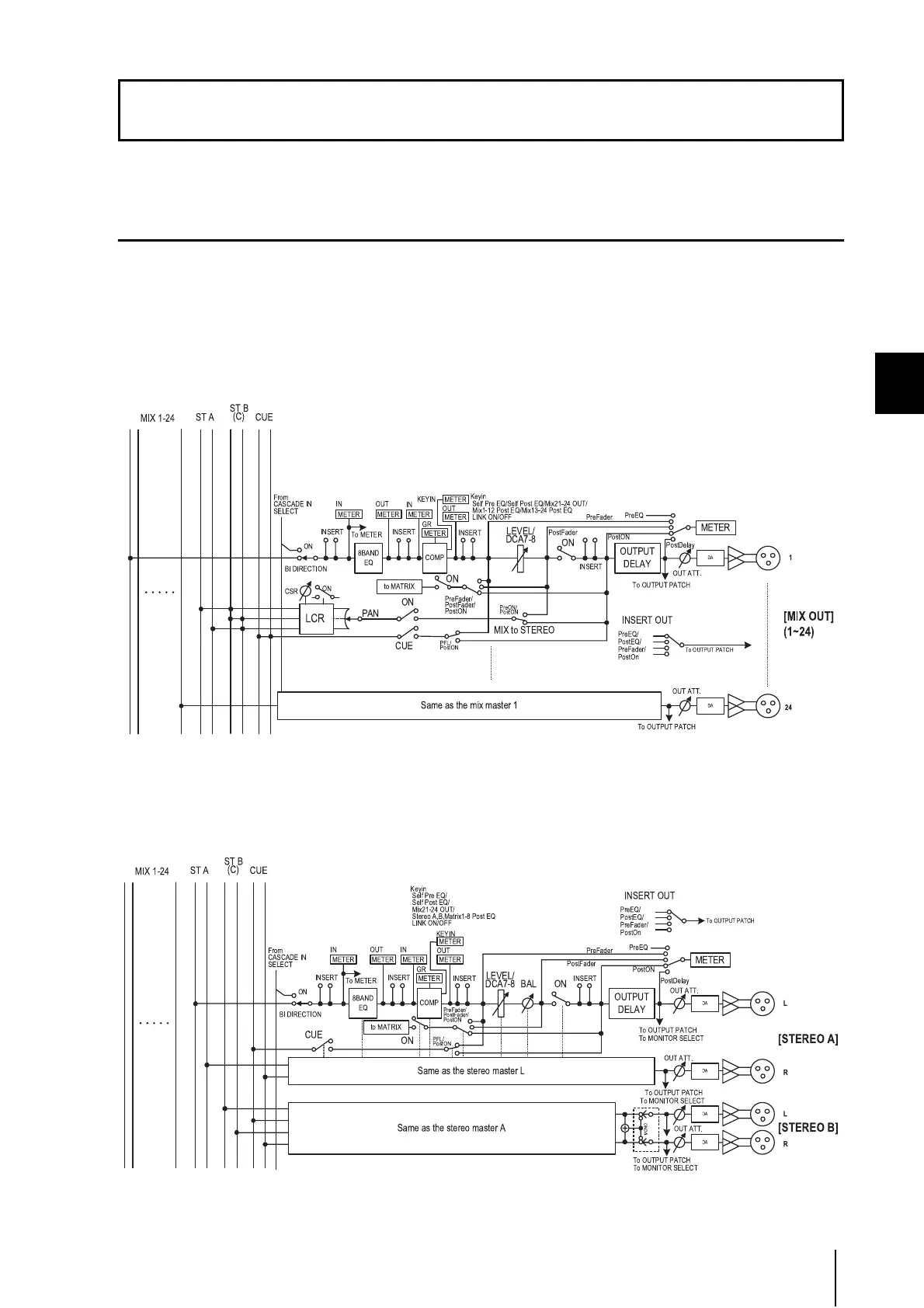

Output channels mix the signals sent from input channels etc., and send them to the corresponding output jacks or output
buses.
There are three types of output channel, as follows.
MIX channels 1–24
The signals sent from input channels to MIX buses are sent via these channels to MIX OUT jacks 1–24 or the STEREO/
MATRIX buses.
STEREO A/B channels
The signals sent from input channels or MIX channels are sent via these channels to STEREO OUT jacks A/B.
