Input channel operations
This chapter explains the functions and operation of each section related to input channels.
About the input channels

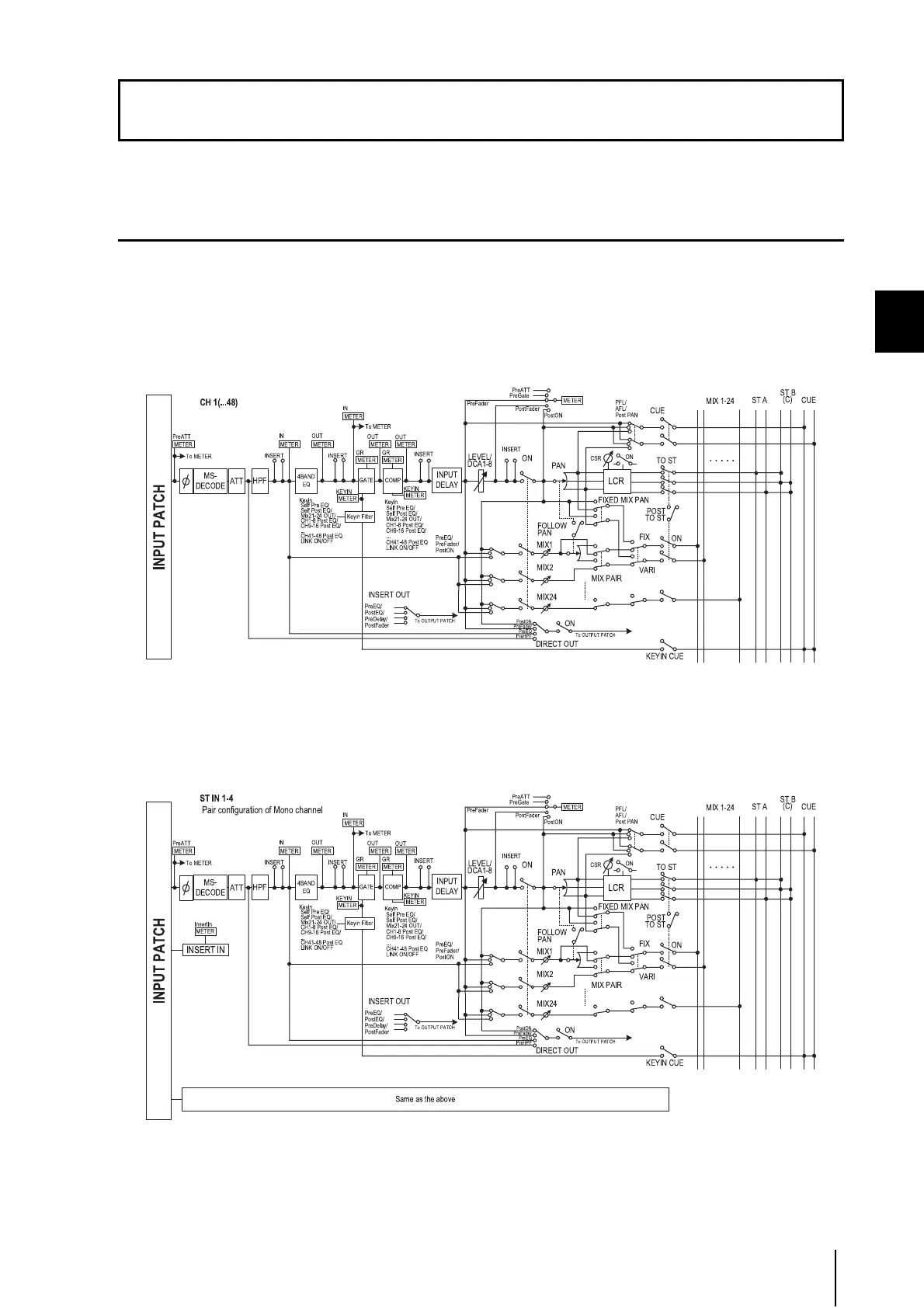

The input channel section processes the signals that are input via the input patch section, and outputs them to the STEREO
buses or MIX buses. There are three types of input channel, as follows.
Input channels 1–48
These channels are used to process monaural signals. When the input patching is in the default state, the input signals from
INPUT jacks 1–48 are assigned to these channels.
ST IN channels 1–4
These channels are used to process stereo signals. When the input patching is in the default state, the input signals from ST IN
jacks 1–4 are assigned to these channels.
