Introduction
Differences between the PM5D model and the PM5D-RH
model

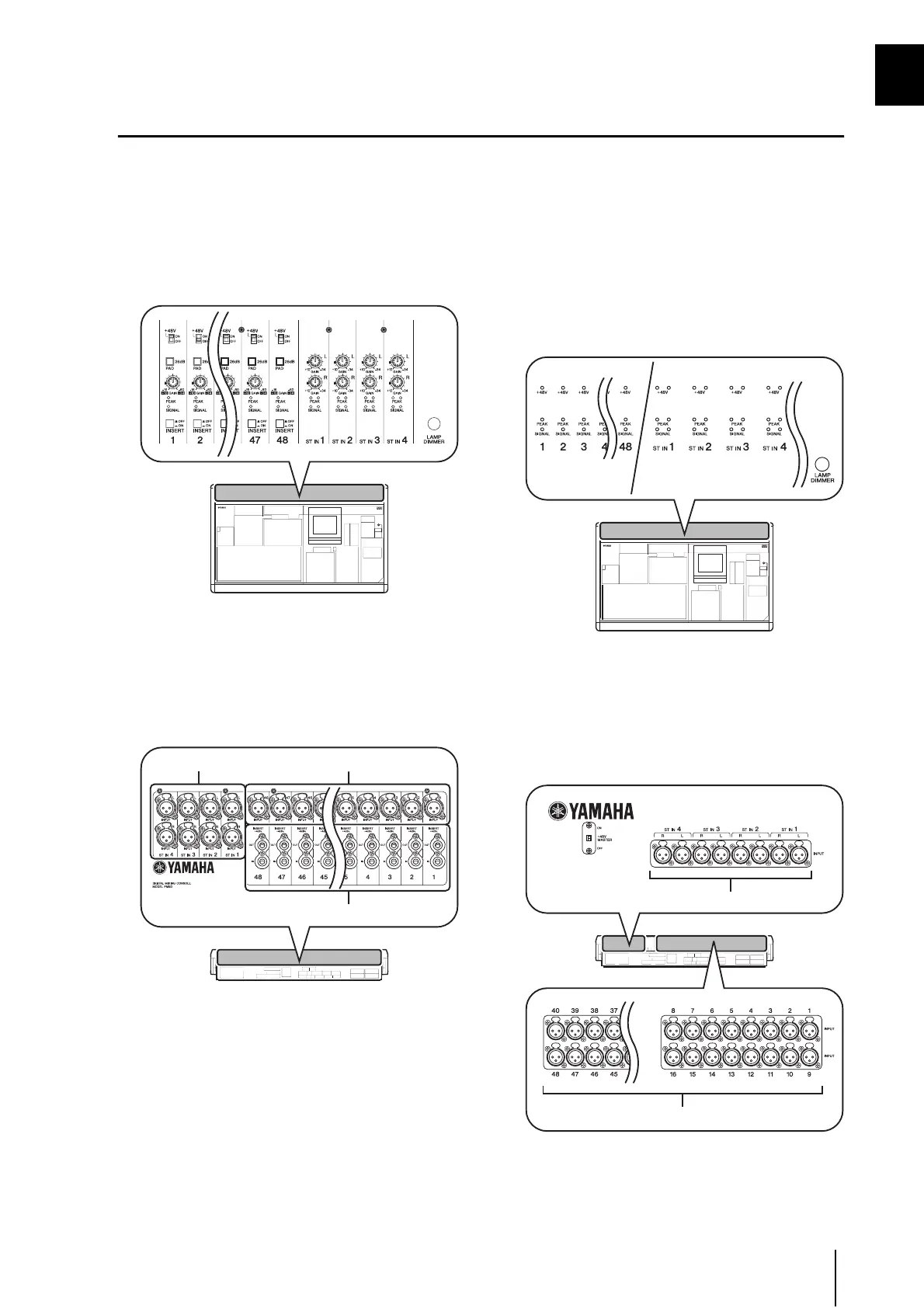

The PM5D is available as the standard PM5D model or as the PM5D-RH model which allows internal head amp settings to be
programmed. These models differ as follows.
❏ PM5D model
• Head amp adjustments (input sensitivity settings,
phantom power (+48V) on/off) for the analog inputs
(INPUT jacks 1–48, ST IN jacks 1–4) are performed
manually, using the controls of the top panel.
• Insert jacks (INSERT IN/OUT jacks) for the monaural
analog inputs (INPUT jacks 1–48) are provided on the
rear panel, allowing external effect processors to be
inserted in the analog domain.
• ST IN jacks 1–4 are only for line level.
• There is no +48V MASTER switch.
❏ PM5D-RH model
• Head amp adjustments (input sensitivity settings,
phantom power (+48V) on/off) for the analog inputs
are controlled from within the screen via software. For
this reason, the top panel does not have head amp con-
trols; instead, indicators showing the presence or
absence of a signal are provided. Head amp settings can
be saved in a library and recalled at any time.
• Insert jacks for the analog inputs are not provided.
• ST IN jacks 1–4 support mic levels through line levels.
Phantom power can also be supplied to ST IN jacks 1–
4.
• The +48V MASTER switch turns all phantom power
(+48V) on/off.
INPUT jacks 1–48ST IN jacks 1–4
INSERT IN/OUT jacks 1–48
INPUT jacks 1–48
ST IN jacks 1–4
To Next Page
