INPUT VIEW function
286 PM5D/PM5D-RH Owner’s Manual Reference section
INPUT VIEW function
This screen lists the mix parameters of the currently
selected input channel. In this screen you can also edit the
principal parameters and access other screens.
A Channel
This is the number of the input channel you are edit-
ing. If the input channel is paired (or if a ST IN channel
is selected), a heart symbol is displayed at the right.
You can click this symbol to enable/disable pairing for
the input channel.
B HA (Head Amp)
This area indicates the input port that is patched to the
input channel, the setting of the internal head amp
(PM5D-RH model only) or external head amp, and the
input level. In this screen you can also adjust the head
amp gain and switch phantom power (+48V) on/off.
C ATT (Attenuation)
This area shows the attenuation and ø (phase) settings.
You can also adjust the attenuation and switch the
phase from this screen.
D EQ
Refer to the explanation of the OUTPUT VIEW func-
tion CH VIEW screen (➥ p.245).
E GATE
This area shows the amount of gain reduction and the
output level of the gate, a mini-graph showing the
approximate response of the gate, and the gate on/off
status. You can also switch the gate on/off from this
screen. If you click the mini-graph, the GATE PARAM
screen for that channel will appear.
F COMP (Compressor)
Refer to the explanation of the OUTPUT VIEW func-
tion CH VIEW screen (➥ p.246).
G DELAY
In this area you can view and edit the delay time of the
internal delay and its on/off status.
H TO MIX
In this area you can specify the send level, output posi-
tion, and on/off status of the signals sent from the
corresponding input channel to MIX buses 1–24.
(Operation is the same as in the TO MATRIX area of
the OUTPUT VIEW function CH VIEW screen.) Refer
to p.246.
I TO STEREO
Here you can specify the on/off status, pan, and FOL-
LOW PAN settings of the signal sent from the
corresponding input channel to the STEREO bus.

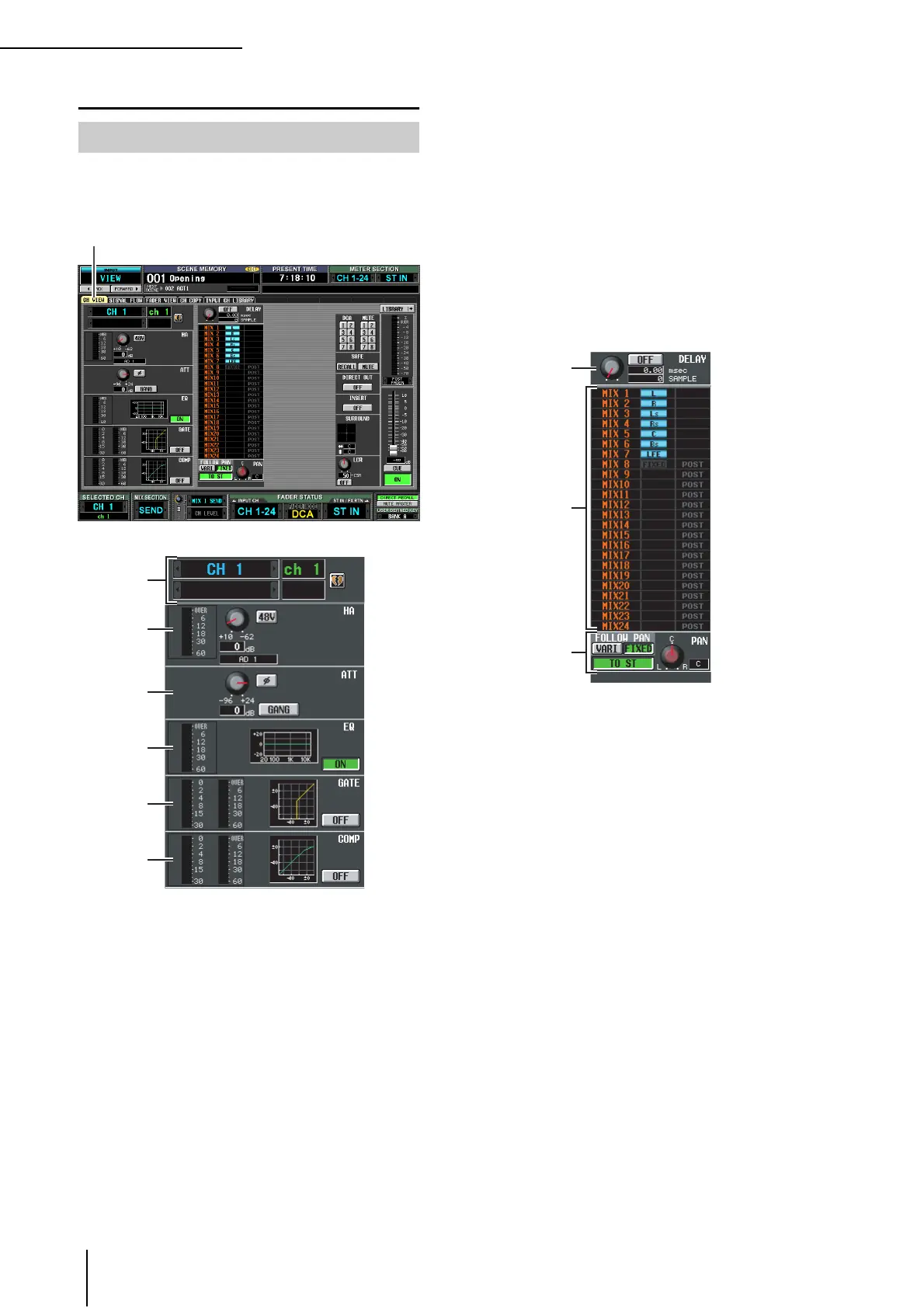

CH VIEW (Channel view) screen
CH VIEW
2
3
4
5
6
1
7
9
8
To Next Page
