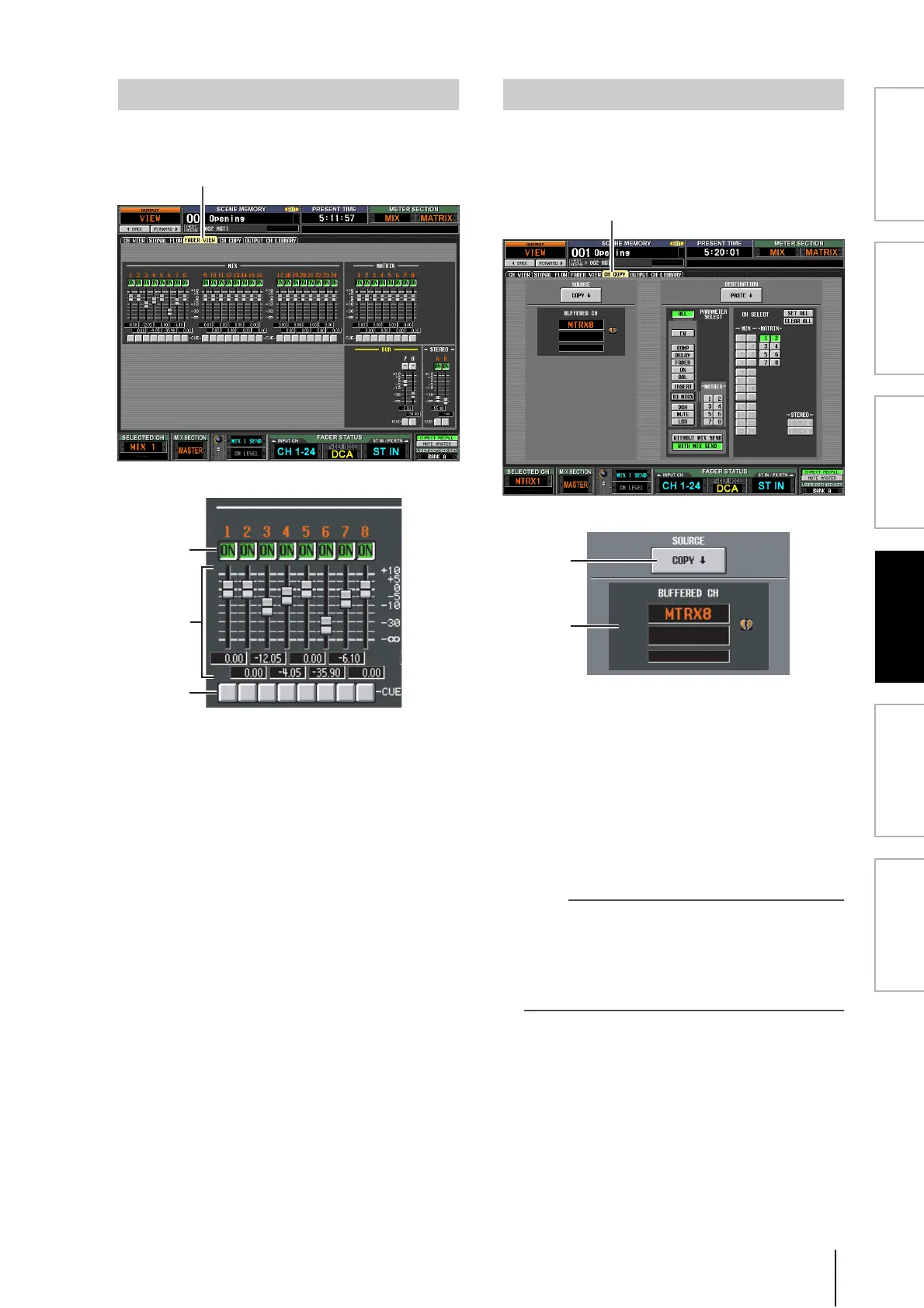

This screen shows the on/off status, level, and cue monitor
status of the output channels and DCA groups.
A ON/OFF (On/off)
Here you can switch output channels on/off, and
switch DCA group muting on/off. These settings are
linked with the [ON] keys of the corresponding chan-
nels and the [MUTE] keys of the DCA groups.
B Level
Here you can adjust the level of the output channels
and DCA groups. The current value is shown in the
box immediately below. These are linked with the
encoder or fader of the corresponding channel or DCA
group.
C Cue
Here you can switch cue monitoring on/off for output
channels and DCA groups. These are linked with the
[CUE] key of the corresponding channel or DCA
group.
In this screen you can copy the desired parameter(s) from
the selected output channel into a memory buffer, and
paste them to the same type of channel (you may select
more than one paste-destination).
A COPY
When you click this button, the settings of the cur-
rently selected channel will be copied to a temporary
memory buffer.
If the corresponding MIX/MATRIX channel is paired
(or if a STEREO A/B channel is selected), a heart sym-
bol is displayed at the right.
B BUFFERED CH (Channel in the buffer)
This shows the channel that is currently copied into
buffer memory.
Note
• The same buffer memory is used to copy channel settings
for both input channels and output channels.
• If input channel settings have been copied to the buffer
memory, a message of “TYPE CONFLICT!” is displayed
below, and you cannot paste to an output channel.
• The contents of the buffer memory are erased when the
PM5D is powered-off.
