INPUT PATCH function
254 PM5D/PM5D-RH Owner’s Manual Reference section
E Output port
From the top, this area indicates the type of output
port, the ID number, the output channel number, and
the number of input channels assigned. The following
types of output port can be selected.
Hint
• The port number is grayed-out for ports that are currently
unavailable.
• For SLOT OUT ports that are also being output to the CAS-
CADE connector, the port number of the CASCADE
connector is displayed in yellow instead of the SLOT OUT
port number.
F LIBRARY button
This button accesses the INPUT PATCH LIBRARY
screen (➥ p.257), where you can store/recall input
channel patch library settings.
Note
To enable direct output from the selected port, you will need to
make settings in the INSERT/DIRECT OUT POINT screen
(INPUT PATCH function) to turn on direct output for the corre-
sponding input channel (
➥
p.256.

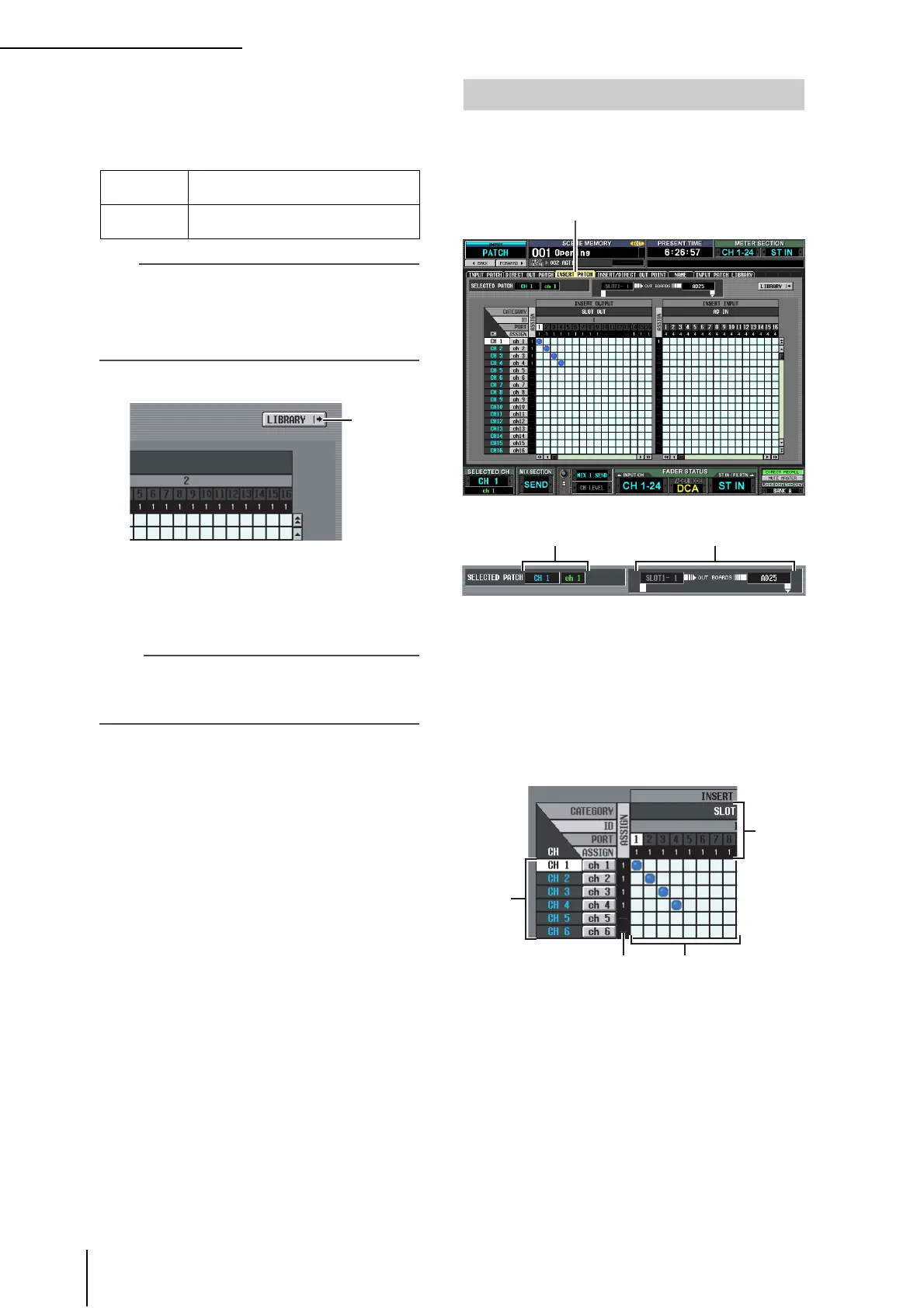

In this screen you can patch the input/output ports by
which external devices will be inserted into each input
channel. Select the output port in the left side of the screen,
and the input port in the right side of the screen.
A SELECTED PATCH
This indicates the number and name of the input chan-
nel at which the cursor is located in the grid.
B Insert in/out
This indicates the input/output ports that are patched
as insert in/out for the input channel at which the cur-
sor is located.
C CH (Input channel)
This area shows the number and name of each input
channel (input channel, ST IN channel L/R). The
channel number at which the cursor is located will be
highlighted. If you click the name, a window will open
allowing you to assign a name to the channel.
D ASSIGN
For each input channel, this indicates the number of
output ports that are currently assigned as insert-out.
SLOT OUT
Output channels of an I/O card installed in
slots 1–4
2TR OUT
L/R channels of 2TR OUT DIGITAL jacks
1–3
6
INSERT PATCH screen
INSERT PATCH
6
3
4 5
To Next Page
