SYS/W.CLOCK function
208 PM5D/PM5D-RH Owner’s Manual Reference section
In this screen you can recall, store, rename, or delete items
in the HA library.
A EDIT
When you click this button, the HA screen will appear.
B DATA FORMAT
Indicates the model name (PM5D-RH or PM5D).
C EXTERNAL HA TYPE INFORMATION
This area shows the model names (AD8HR/AD824) of
the external head amp devices (ID numbers= 1–8)
connected to the PM5D’s [HA REMOTE] connector.
D RECALL
Recalls the HA library item selected in the list into
memory.
E STORE
Stores the current settings of the HA screen into the
location selected in the list. When you click this button
a window will appear, allowing you to name and save
the settings.
F TITLE EDIT
Edits the title of the library item selected in the list.
When you click this button a window will appear,
allowing you to edit the title.
G CLEAR
Deletes the library item selected in the list. When you
click this button, a confirmation message will appear.
Note
Library items with an “R” displayed in the right column of the
list are read-only. Read-only items cannot be stored,
renamed, or deleted.
H DATA FORMAT
Indicates the data format (PM5D-RH or PM5D) of the
library item selected in the list.
I EXTERNAL HA TYPE INFORMATION
This area indicates the model name (AD8HR/AD824)
of the external head amps (ID numbers= 1–8) for
which data is stored in the library.
J Library list
Use the scroll bar to select the library item on which
you want to perform an operation. The selected library
item will move to the center, and will be highlighted.
Note
• If PM5D format data is recalled to the PM5D-RH, the inter-
nal head amp settings will not change. If PM5D-RH format
data is recalled to the PM5D, the internal head amp settings
will be ignored.
• If the recall-source and recall-destination head amp devices
have the same ID number but are assigned to different slots/
channels, the data will not be recalled to head amps of those
ID numbers.
• AD8HR data can be recalled into an AD824, and AD824
data can be recalled into an AD8HR. However when AD8HR
data is recalled to an AD824, the gain settings of each chan-
nel will be converted into 6 dB units in order to match the
specifications of the AD824.

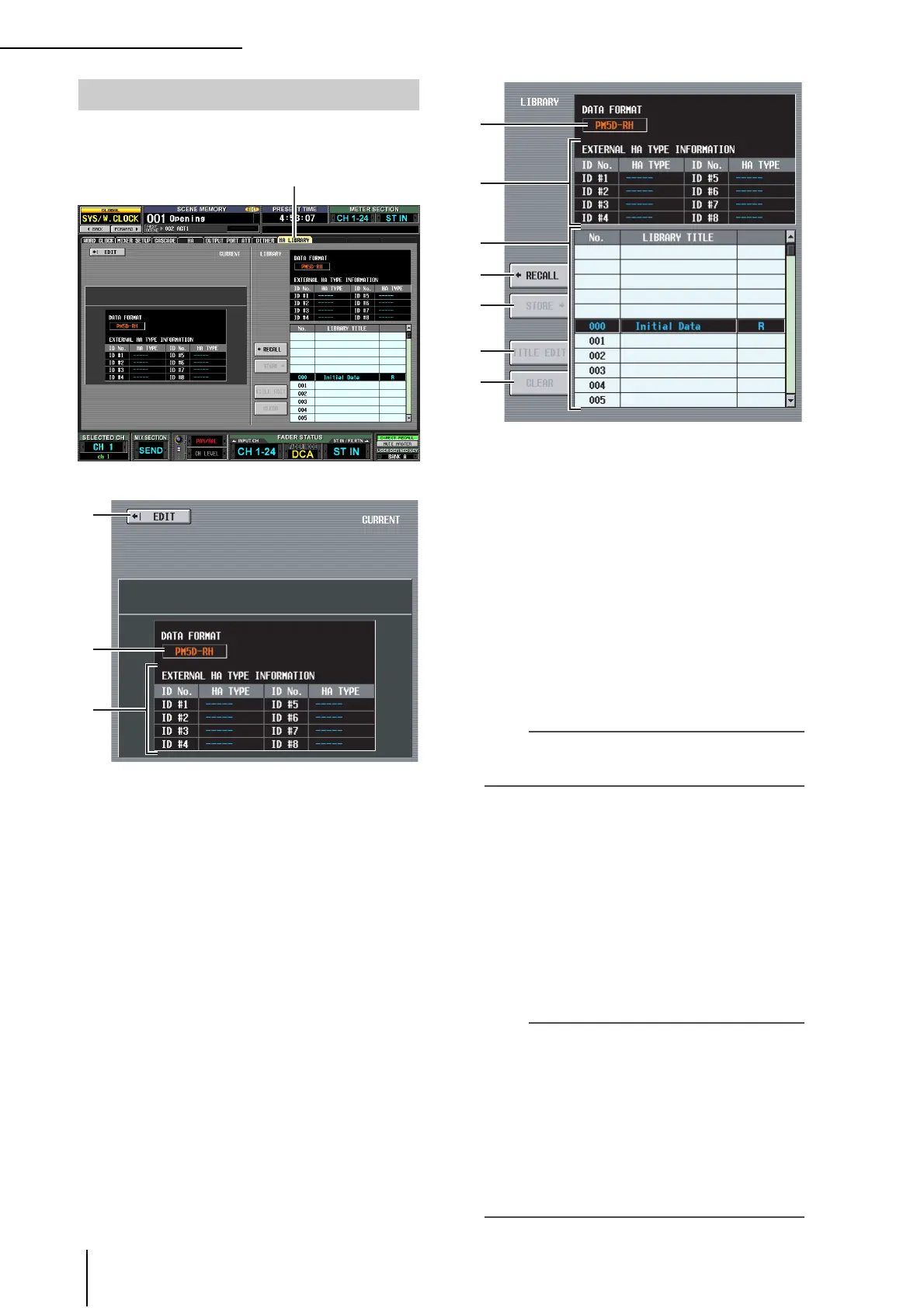

HA LIBRARY screen
HA LIBRARY
3
1
2
9
J
8
4
5
6
7
To Next Page
