PM5D/PM5D-RH Owner’s Manual Operating section 29
4
Connections and setup
Use 2TR IN DIGITAL jacks 1–3 to connect digital sources
such as CD players or DAT recorders. (To input analog
output signals from a CD player or DAT recorder, use 2TR
IN ANALOG jacks 1/2.)
Use 2TR OUT DIGITAL jacks 1–3 to send the STEREO A/
B channel signals to a DAT recorder or other digital device.
By installing separately sold mini-YGDAI I/O cards in slots
1–4 you can add analog input/output jacks to the PM5D or
allow connection of digital devices such as digital MTR or
HDR units.
The following types of I/O card can be used.
Refer to the Yamaha Pro Audio global website for the most
recent information on I/O cards.
http://www.yamahaproaudio.com
Note
• In order to send or receive digital audio via the 2TR IN DIGI-
TAL jacks, 2TR OUT DIGITAL jacks, or slots 1–4, the word
clock data of the respective signals must be synchronized
(
➥
p.31).
• In order to assign input signals from the 2TR IN DIGITAL
jacks, 2TR IN ANALOG jacks, or slots 1–4 to input channels
or ST IN channels, you will need to change the input patch-
ing (
➥
p.66).

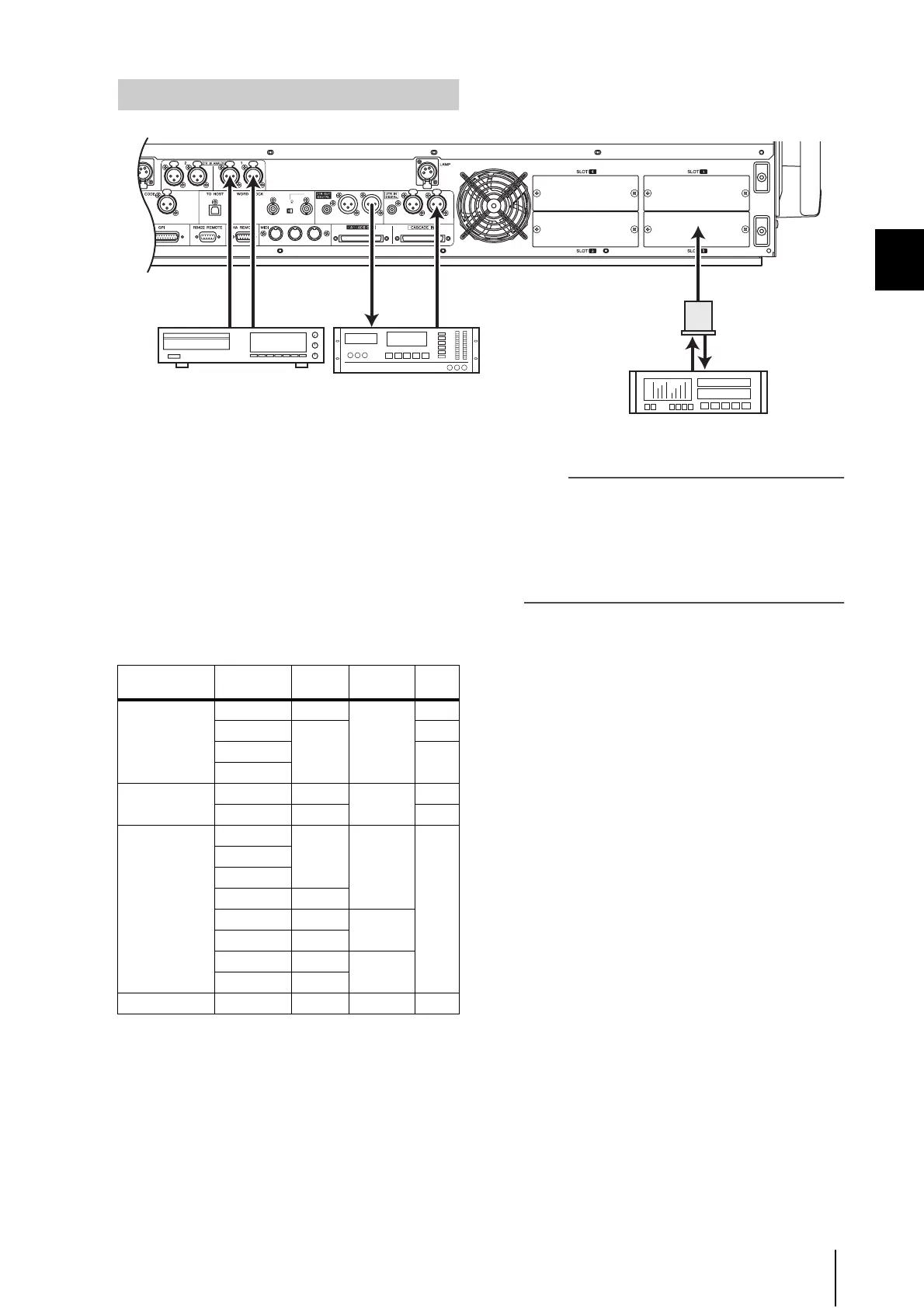

Digital input/output connections
R
L
R
L
SMPTE
USB
OUT IN
75
ON OFF
21
COAXIAL COAXIALAES/EBU AES/EBU AES/EBU AES/EBU
3
21
3
THRU OUT IN
DAT
00.00.00.00
2TR IN
ANALOG
2TR OUT
DIGITAL
2TR IN
DIGITAL
SLOT
CD player DAT recorder
Digital MTR/HDR
Digital I/O card
Card type Model
Number of
channels
Digital
format
Bit
depth
AD card
MY4-AD 4
—
24 bit
MY8-AD
8
20 bit
MY8-AD24
24 bit
MY8-AD96
DA card
MY4-DA 4
—
20 bit
MY8-DA96 8 24 bit
Digital I/O card
MY8-AE
8
AES/EBU
24 bit
MY8-AE96
MY8-AE96S
MY16-AE 16
MY8-AT 8
ADAT
MY16-AT 16
MY8-TD 8
TASCAM
MY16-TD 16
CobraNet card MY16-C 16 CobraNet 24 bit
To Next Page
