Here you can recall, store, rename, or delete items in the
output channel library.
A EDIT
When you click this button, the CH VIEW screen
(OUTPUT CH VIEW screen) for the currently selected
output channel will appear.
B Channel
This is the number of the channel you will store or
recall.
Note
• Channel library store/recall operations are performed in units
of one channel.
• If the channel selected by the [SEL] key is paired (or if a
STEREO A/B channel is selected), the operation will apply
to only one of the currently selected channels (in the case of
STEREO A/B, only the L or the R channel).
• When you recall a channel library item into one of a pair of
MIX/MATRIX channels (or into L or R of the STEREO A/B
channel), any linked parameters will be copied to the other
channel.
C LIBRARY TYPE (Channel type)
Indicates the type of the currently selected channel. If a
MIX or STEREO A/B channel is selected, the pairing
configuration of MATRIX buses 1–8 is shown immedi-
ately below.
D RECALL
Recalls the channel library item selected in the list into
memory.
If the channel selected in (
1) is of a different type than
the channel selected in the list, this button is grayed-
out and the Recall operation is unavailable. (However,
Initial Data can be recalled to any output channel.)
E STORE
Stores the settings of the currently selected output
channel into the location selected in the list. When you
click this button a window will appear, allowing you to
name and save the settings.
F TITLE EDIT
Edits the title of the library item selected in the list.
When you click this button a window will appear,
allowing you to edit the title.
G CLEAR
Deletes the library item selected in the list. When you
click this button, a confirmation message will appear.
Note
Library items with an “R” displayed in the right column of the
list are read-only. Read-only items cannot be stored,
renamed, or deleted.
H LIBRARY TYPE
Displays the type of channel for the library item
selected in the list. If the channel selected in (
1) is of a
different type than the channel selected in the list, a
message of “CONFLICT!” is displayed at the right and
the Recall operation is unavailable.
If a MIX or STEREO A/B channel is selected, the pair-
ing configuration of MATRIX buses 1–8 is shown
immediately below.
I Library list
Use the scroll bar to select the library item on which
you want to perform an operation. The selected library
item will move to the center, and will be highlighted.

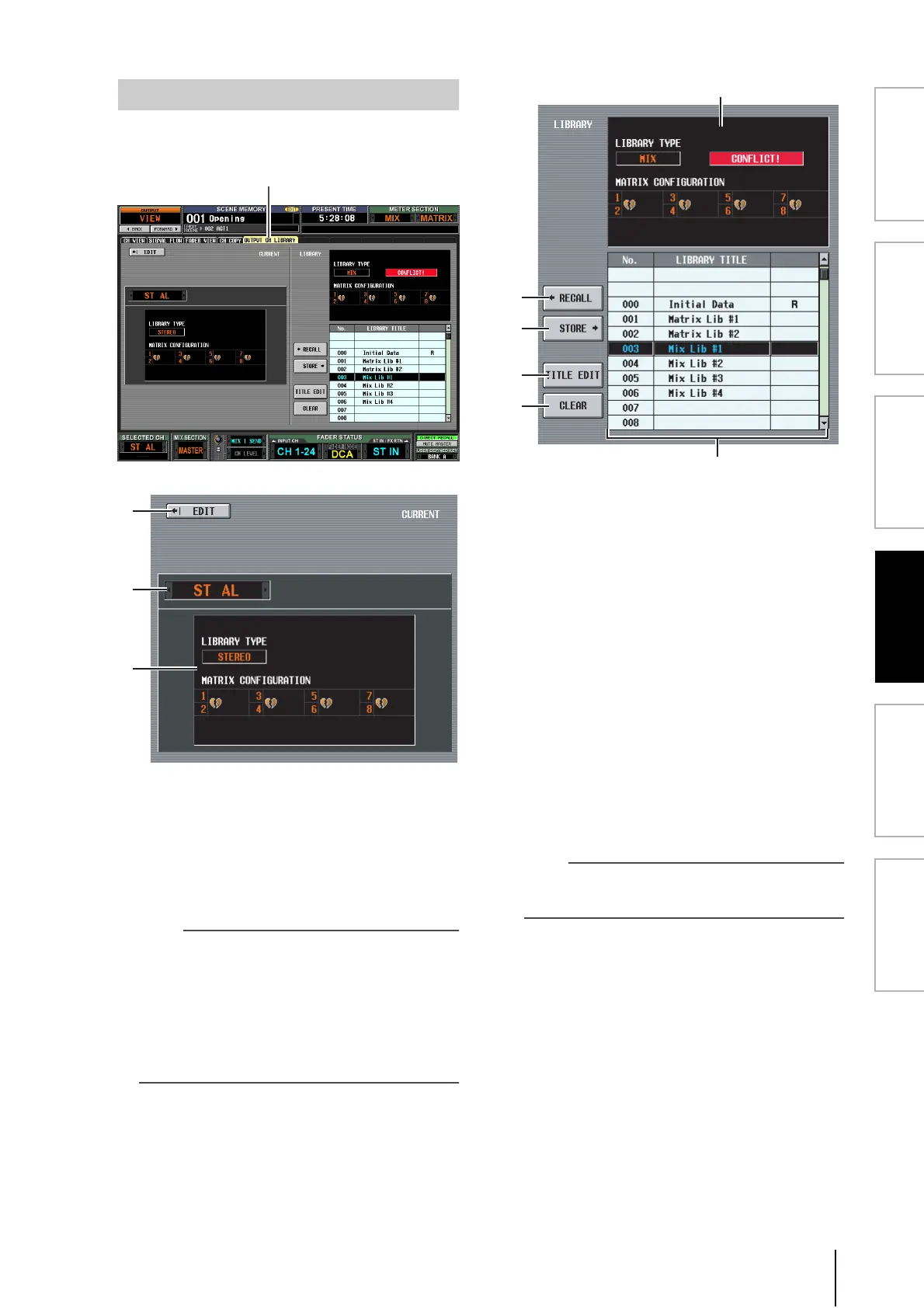

OUTPUT CH LIBRARY screen
OUTPUT CH LIBRARY
1
2
3
4
5
6
7
