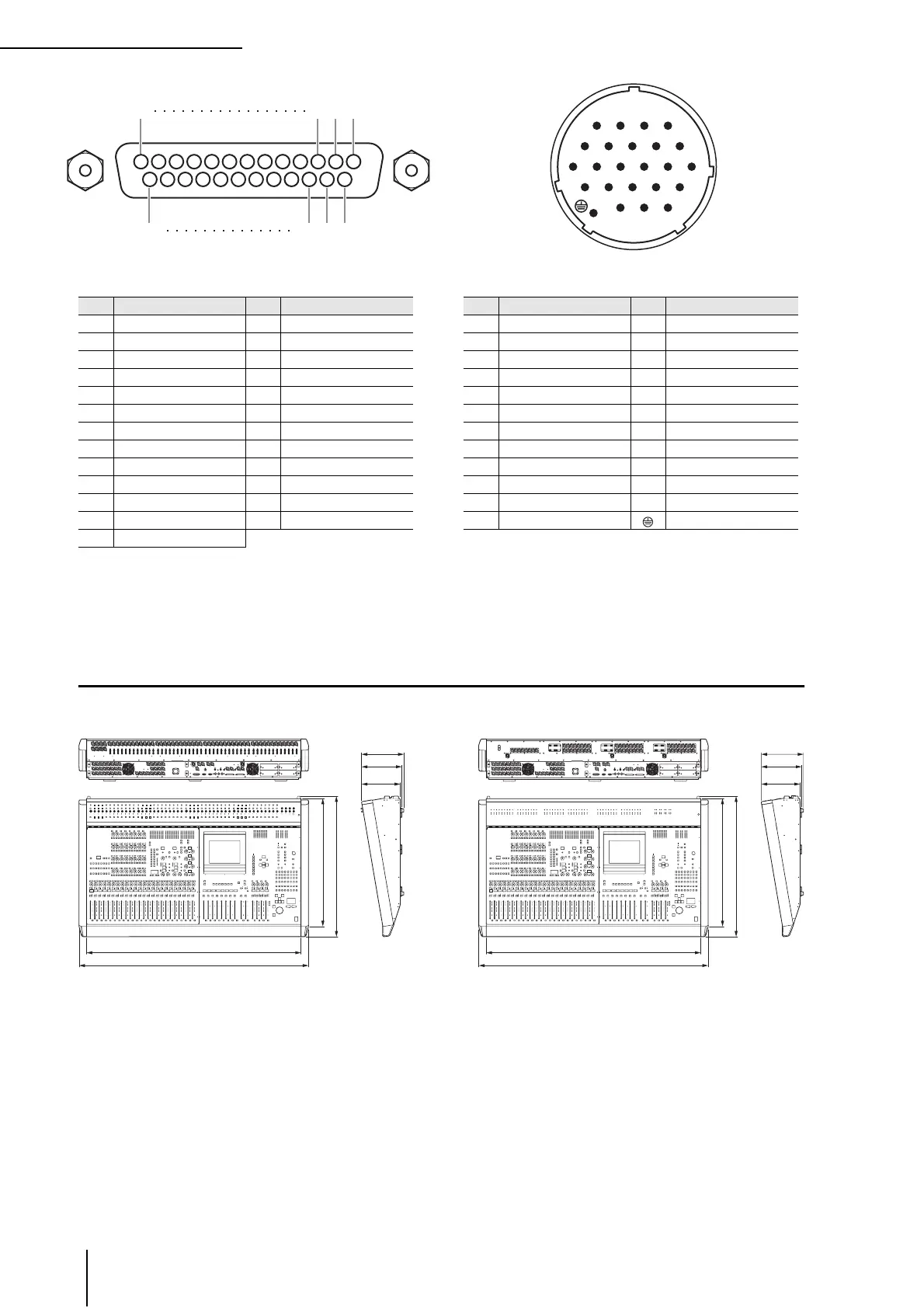

Dimensions
356 PM5D/PM5D-RH Owner’s Manual Reference section
❏ GPI
* For information on maximum permissible current, refer to the
page 351.
❏ DC POWER INPUT
Dimensions
* Specifications and descriptions in this owner's manual are for information purposes only. Yamaha Corp. reserves the right
to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options
may not be the same in every locale, please check with your Yamaha dealer.
European models
Purchaser/User Information specified in EN55103-1 and EN55103-2.
Conforms to Environments: E1, E2, E3 and E4
Pin Signal Name Pin Signal Name
1 GPO1 14 GPO2
2 GPO3 15 GPO4
3 GPO5 16 GPO6
4 GPO7 17 GPO8
5 GND 18 GND
6 GND 19 GND
7 GND 20 GND
8 GND 21 +5V
9 +5V 22 GPI1
10 GPI2 23 GPI3
11 GPI4 24 GPO9
12 GPO10 25 GPO11
13 GPO12
12313
25 1416 15
Pin Signal Name Pin Signal Name
1 +24V 13 GND
2 +24V 14 GND
3 +24V 15 GND
4 +24V 16 GND
5 +24V 17 GND
6 +24V 18 GND
7 +24V 19 CAUTION(+)
8 +24V 20 CAUTION(–)
9 +24V 21 DETECT A
10 GND 22 DETECT B
11 GND 23 DETECT GND
12 GND Frame GND
1
2
3
4
5
6789
10111213
14
15
16
17181920
21
22
23
283
271
260
283
271
260
1551
1450
950 865
1551
1450
950 865
PM5D-RHPM5D
Unit: mm

Yamaha PM5D Specifications

General

Type	Digital Mixing Console
Sampling Frequency	44.1kHz, 48kHz
EQ	4-band parametric EQ per channel
A/D Conversion	24-bit
D/A Conversion	24-bit
Number of Output Channels	24
Internal Processing	32bit
Metering	LED level meters
Frequency Response	20Hz - 20kHz
THD+N	<0.05%
Connectivity	MIDI, Ethernet
Dynamic Processing	Gate, compressor, limiter per channel
Number of Input Channels	48 mono + 4 stereo
Dynamic Range	110 dB typ
