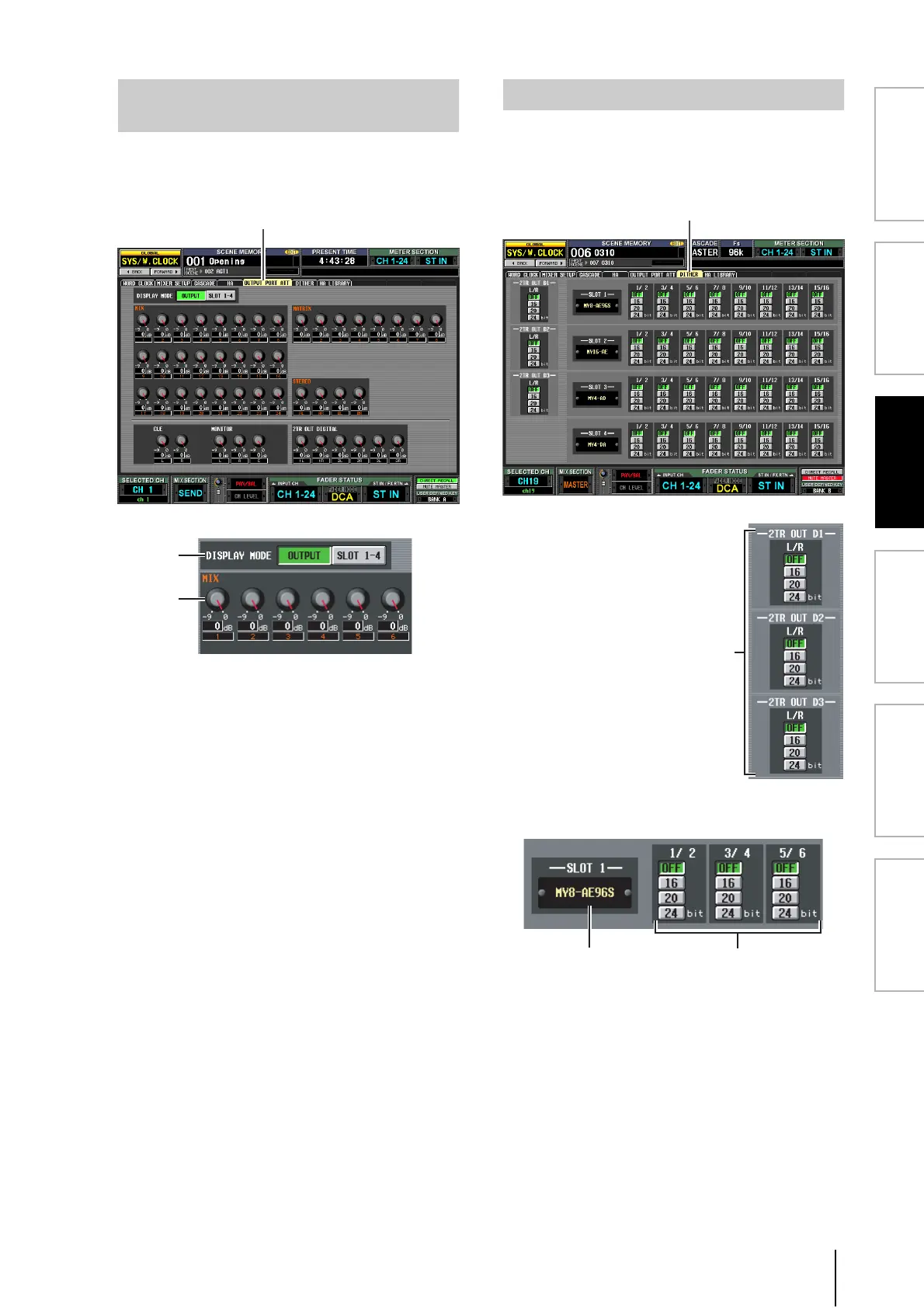

In this screen you can specify the amount of attenuation
for each output channel and for each output channel of an
I/O card.
A DISPLAY MODE
Select the channels that will appear in the display, from
the following choices.
• OUTPUT
The screen will show the amount of attenuation for
output channels (MIX channels 1–24, MATRIX chan-
nels 1–8, STEREO A L/R channels, STEREO B L/R
channels), CUE L/R channels, MONITOR L/R/C chan-
nels, and 2TR OUT DIGITAL 1–3 L/R channels.
• SLOT 1-4
The screen will show the amount of attenuation for
each output channel of the I/O cards installed in slots
1–4.
B ATT (Attenuation)
Adjusts the amount of attenuation for each channel.
Move the cursor to the knob, and turn the [DATA]
encoder to adjust the attenuation in a range of
–9 dB to 0 dB. The current value is shown in the box
below each knob.
In this screen you can turn dithering on/off and specify the
bit depth for dithering. These settings are made individu-
ally for each digital output jack and each output channel of
the digital I/O cards.
A Digital output jack dither
settings
Specify the number of bits (16,
20, 24 bits) used when dither-
ing the output signals from 2TR
DIGITAL OUT jacks 1–3. If you
select OFF, dithering will not be
performed.
B Slots 1–4
This area shows the type of digital I/O card installed in
each slot.
C Digital I/O card dither settings
For each output channel of the digital I/O cards
installed in the slots, specify the number of bits used
when dithering.
OUTPUT PORT ATT (Output port
attenuation) screen
OUTPUT PORT ATT
1
2
DITHER screen
1
To Next Page
