OUTPUT COMP function
232 PM5D/PM5D-RH Owner’s Manual Reference section
Here you can recall, store, rename, or delete items in the
compressor library. The contents of this screen are in com-
mon with the COMP LIBRARY screen of the INPUT
GATE/COMP function.
A EDIT
When you click this button, the COMP PARAM screen
for the currently selected channel will appear.
B Channel selection
Select the channel that you want to edit.
C Compressor graph of the selected channel
This graph shows the approximate response of the
compressor for the currently selected channel.
D Level meters
These meters show the amount of gain reduction (GR),
and the peak levels before the compressor (PRE) and
after the compressor (POST). If the signal clips, the
OVER segment will light.
E RECALL
Recalls the compressor library item selected in the list
into memory.
F STORE
Stores the compressor settings of the currently selected
channel into the location selected in the list. When you
click this button a window will appear, allowing you to
name and save the settings.
G TITLE EDIT
Edits the title of the library item selected in the list.
When you click this button a window will appear,
allowing you to edit the title.
H CLEAR
Deletes the library item selected in the list. When you
click this button, a confirmation message will appear.
Note
Library items with an “R” displayed in the right column of the
list are read-only. Read-only items cannot be stored,
renamed, or deleted.
I Compressor graph of the library item
This graph indicates the approximate response of the
compressor library item selected in the list.
J Library list
Use the scroll bar to select the library item on which
you want to perform an operation. The selected library
item will move to the center, and will be highlighted.

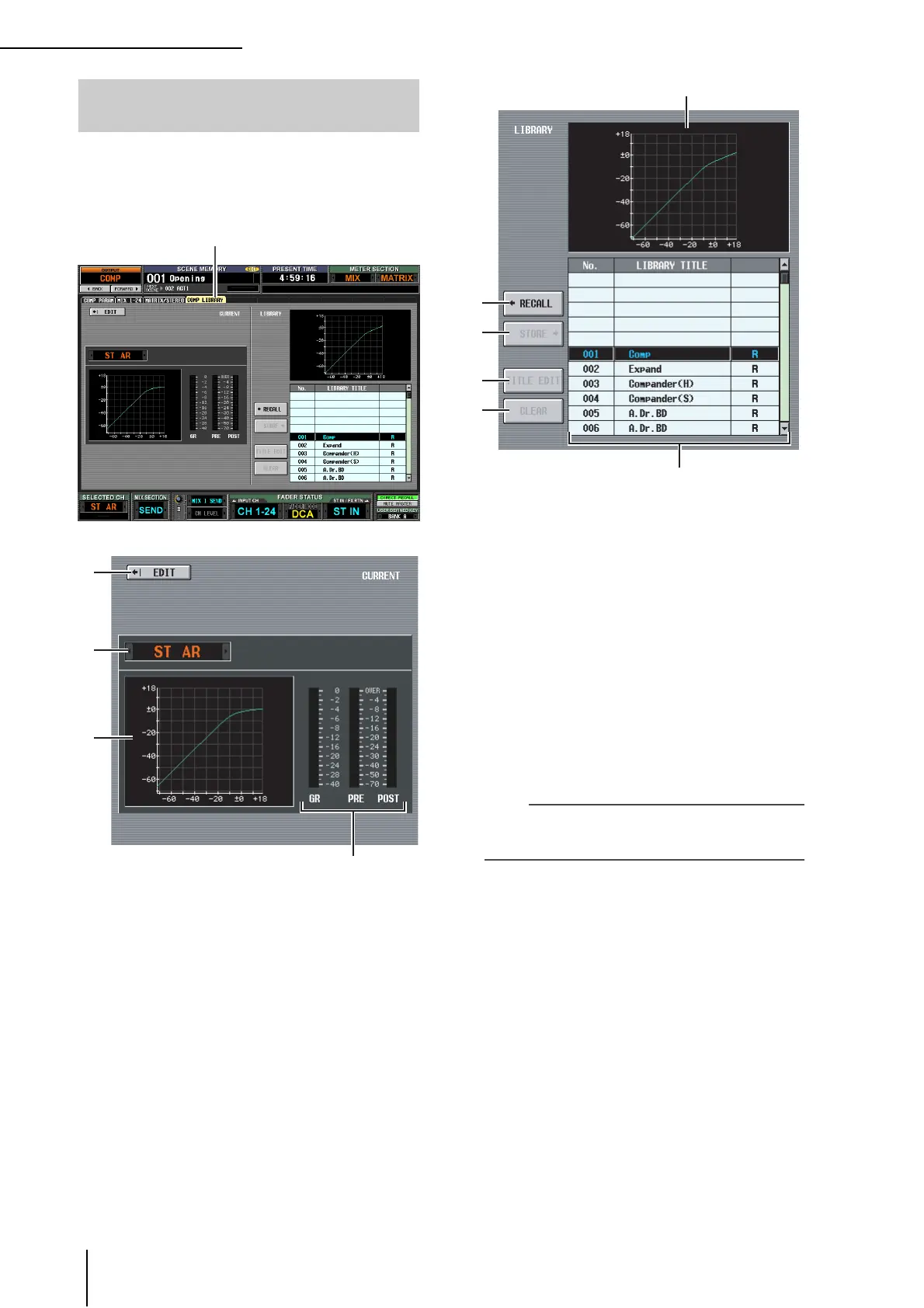

COMP LIBRARY (Compressor library)
screen
