PM5D/PM5D-RH Owner’s Manual Reference section 261
Information shown
in the display
Function
menu
Global
functions
Output
functions
Input
functions
Appendices

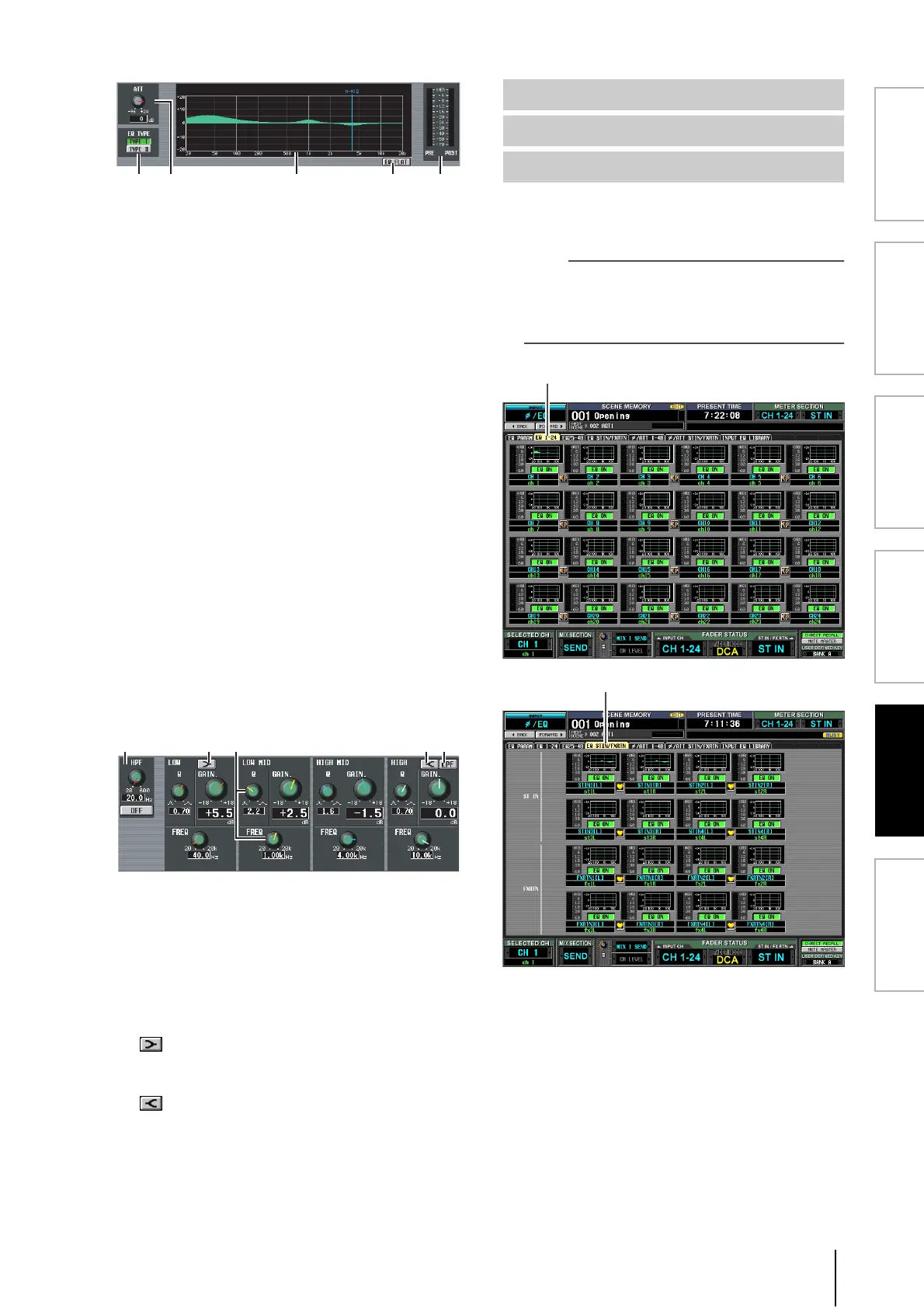

F ATT (Attenuation)
This knob adjusts the amount of attenuation/gain
immediately following AD conversion in a range of
–96 dB to +24 dB. This is linked with the ATT knob in
the ø/ATT 1-48 screen and ø/ATT STIN/FXRTN
screen. The current value is displayed in the box
located below the knob.
G EQ TYPE
Selects the type of EQ. Turning the TYPE I button on
selects the algorithm used in the 02R series. Turning
the TYPE II button on selects a newly developed algo-
rithm. TYPE II reduces the interference between bands.
H EQ graph
This graph shows the approximate response of the EQ
parameters. The colored vertical lines indicate the
FREQ (center frequency) of the band for the parame-
ter at which the cursor is located. (The color of each
line matches the knob markings for each band.) The
response curve will change when you edit the Q or
GAIN of each band.
I Level meters
These meters indicate the peak levels before EQ and
after EQ. If the signal clips before or after EQ, the
OVER segment will light.
J EQ FLAT
This button resets the GAIN parameters of all bands to
the default value (±0.0 dB). When you click this but-
ton, a confirmation message will appear.
K HPF (High Pass Filter)
The high pass filter located after attenuation and before
EQ can be switched on/off, and you can adjust its cut-
off frequency. The cutoff frequency can be adjusted in
a range of 20–600 Hz.
L Knobs
These knobs adjust the Q, FREQ (center frequency),
and GAIN (amount of boost/cut) for each band.
M (LOW shelving)
If this button is on, the LOW EQ will function as a
shelving-type EQ. The Q knob will disappear.
N (HIGH shelving)
If this button is on, the HIGH EQ will function as a
shelving-type EQ. The Q knob will disappear.
O LPF (Low Pass Filter)
If this button is on, the HIGH EQ will function as a
low-pass filter. The Q knob will disappear, and the
GAIN knob is used to switch the LPF on/off.
These screens list the EQ settings for the input channels.
Here you can also copy EQ settings between input
channels.
Note
In some screens that include channel numbers as part of the
screen name, changing the Pair Mode to Vertical Pairing in
the MIXER SETUP screen will change the name of the
screen.
Example: EQ 1-24 screen → EQ 1,25- screen
EQ 1-24 screen
EQ 25-48 switch
EQ STIN/FXRTN screen
