5 Input channel operations
40 PM5D/PM5D-RH Owner’s Manual Operating section
FADER FLIP/ENCODER MODE section
In the FADER FLIP/ENCODER MODE section you can change the parameter that is assigned to the encoders, and exchange
the parameters assigned to the faders and encoders.
A FADER [FLIP] key
If this key is on, the parameters controlled by the fad-
ers and encoders will be exchanged.
B Encoder mode indicator
This indicates the number of the MIX bus (1–24)
selected by the MIX SEND SELECT keys (
6) or the
encoder function selected by keys
3–5.
C [PAN] key
This key selects pan (balance) as the parameter con-
trolled by the encoders. The encoder mode indicator
will indicate “Pn” while this key is on.
D [GAIN/ATT] key
This key selects input sensitivity to the internal head
amp (PM5D-RH model only) or external head amp
device (AD8HR or AD824) or attenuation immedi-
ately after AD conversion as the parameter controlled
by the encoders. The encoder mode indicator will indi-
cate “HA” (if input sensitivity to the head amp is
selected) or “At” (if attenuator is selected) while this
key is on.
E [ALT LAYER] key
This key selects “input level of the channel not
included in the currently selected layer” as the parame-
ter controlled by the encoders. The encoder mode
indicator will indicate “AL” while this key is on.
F MIX SEND SELECT [1]–[24] keys
These keys select the MIX bus (1–24) whose send level
will be controlled by the encoders. When you press one
of these keys, the LED of that key will light, and the
encoder mode indicator will show the number of the
MIX bus.
Hint
If you turn on any key
3
–
6
, the remaining keys will automati-
cally turn off.

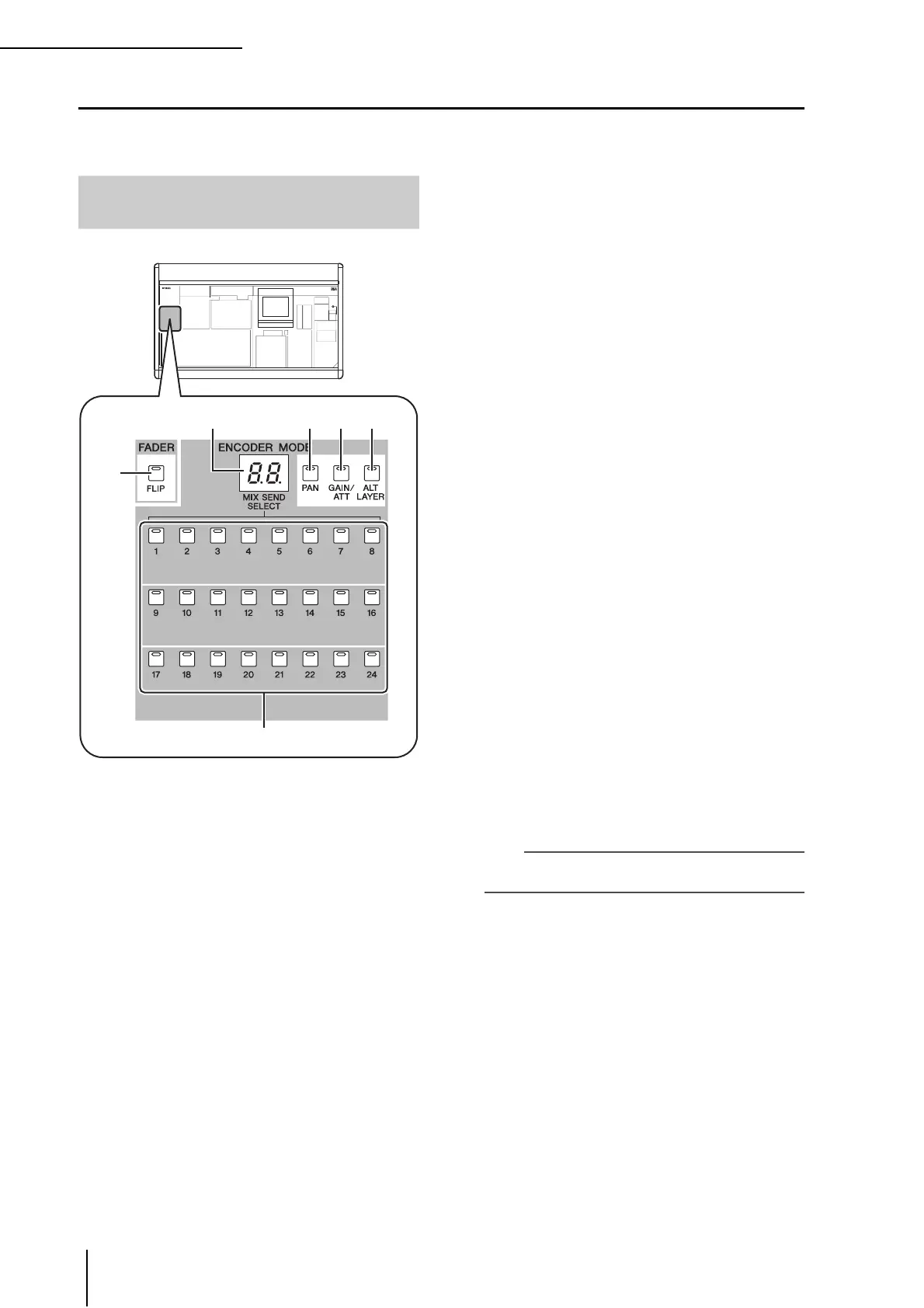

Items in the FADER FLIP/ENCODER
MODE section
6
1
5432
