MON/CUE function
212 PM5D/PM5D-RH Owner’s Manual Reference section
MON/CUE function
In this screen you can switch talkback on/off, and select the
talkback destination.
A Level meter (TALKBACK jack level meter)
This level meter indicates the peak level of the signal
being input from the TALKBACK jack of the top panel.
B +48V (TALKBACK jack phantom power)
This button switches phantom power on/off for the
TALKBACK jack.
Note
The WITH ANALOG VOLUME icon below the button indi-
cates that the LEVEL volume in the TALKBACK section of the
panel will affect only the signal being input from the TALK-
BACK jack.
C Talkback input selection
If you want to use an input jack other than the TALK-
BACK jack for purposes of talkback, you can choose it
here from analog inputs AD IN 1–48. The talkback
input selection is not included in the input patch
library.
D HA (PM5D-RH model only)
Here you can switch phantom power on/off and adjust
the gain for the analog input selected in (
3). The
LEVEL volume in the TALKBACK section of the panel
does not affect the talkback input from the analog
input channel. The HA setting is included in the HA
library.
E Level meter (Analog input level meter)
This level meter indicates the peak level of the signal
being input from the analog input selected in (
3).
F ON/OFF (Analog input on/off)
This button switches the talkback input selected in (3)
on/off.
G ON/OFF (Talkback on/off)
This button switches Talkback on/off. This is linked
with the TALKBACK [ON] key in the TALKBACK sec-
tion of the panel.
H NEVER LATCH
This button selects one of the following as the mode in
which the TALKBACK ON/OFF button and the panel
TALKBACK [ON] key will behave.
• If the NEVER LATCH button is off
Talkback will be switched on/off (Latched operation)
each time you click the ON/OFF button or press the
TALKBACK [ON] key. However if you press and hold
down the TALKBACK [ON] key, talkback will stay on
only while you continue holding down the key; talk-
back will turn off when you release the key (Unlatched
operation).
• If the NEVER LATCH button is on
Talkback will be on only while you click and hold
down the ON/OFF button or press and hold down the
TALKBACK [ON] button; talkback will turn off when
you release the button or key (Unlatched operation).

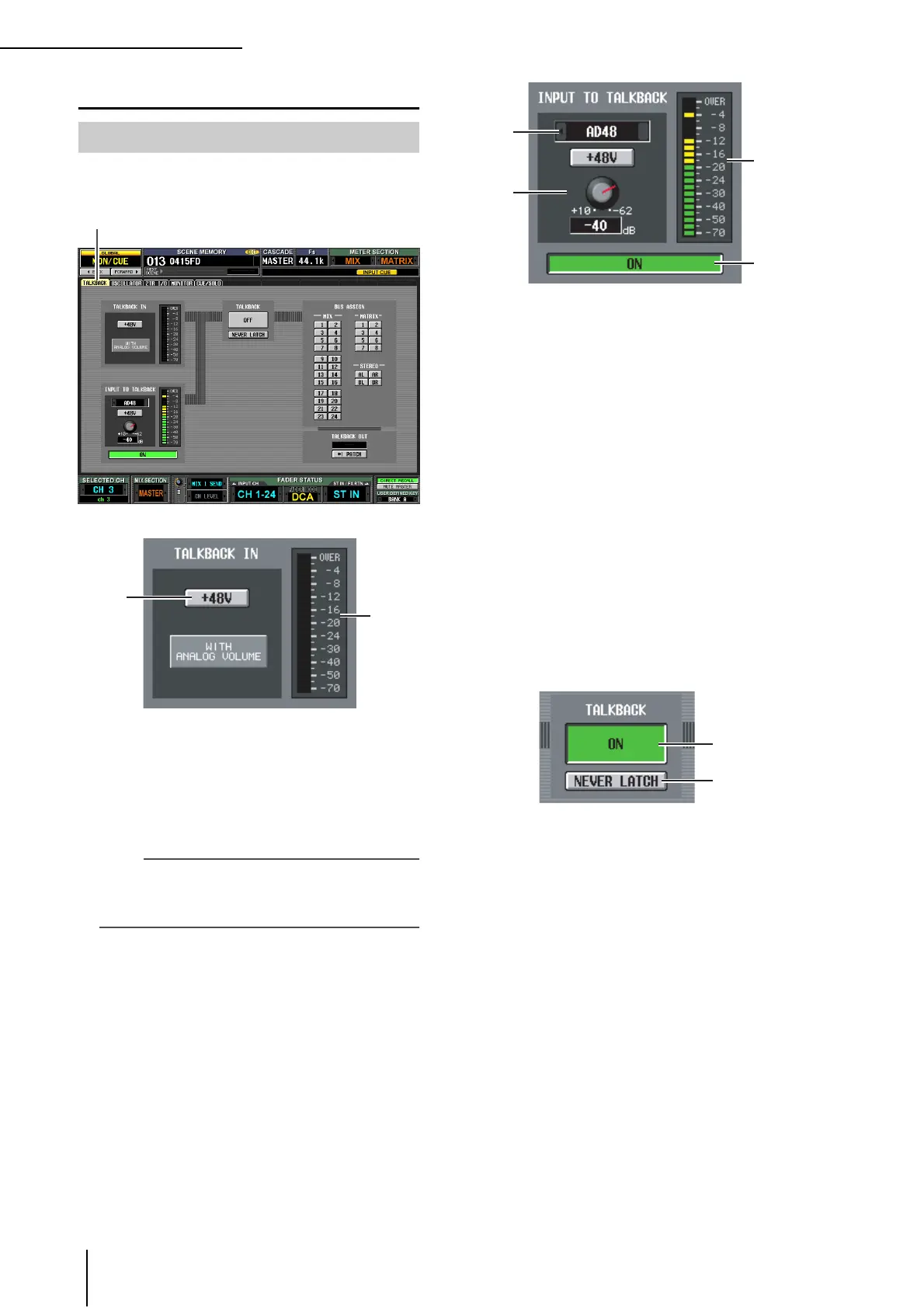

TALKBACK screen
