PM5D/PM5D-RH Owner’s Manual Reference section 153
Information shown
in the display
Function
menu
Global
functions
Output
functions
Input
functions
Appendices

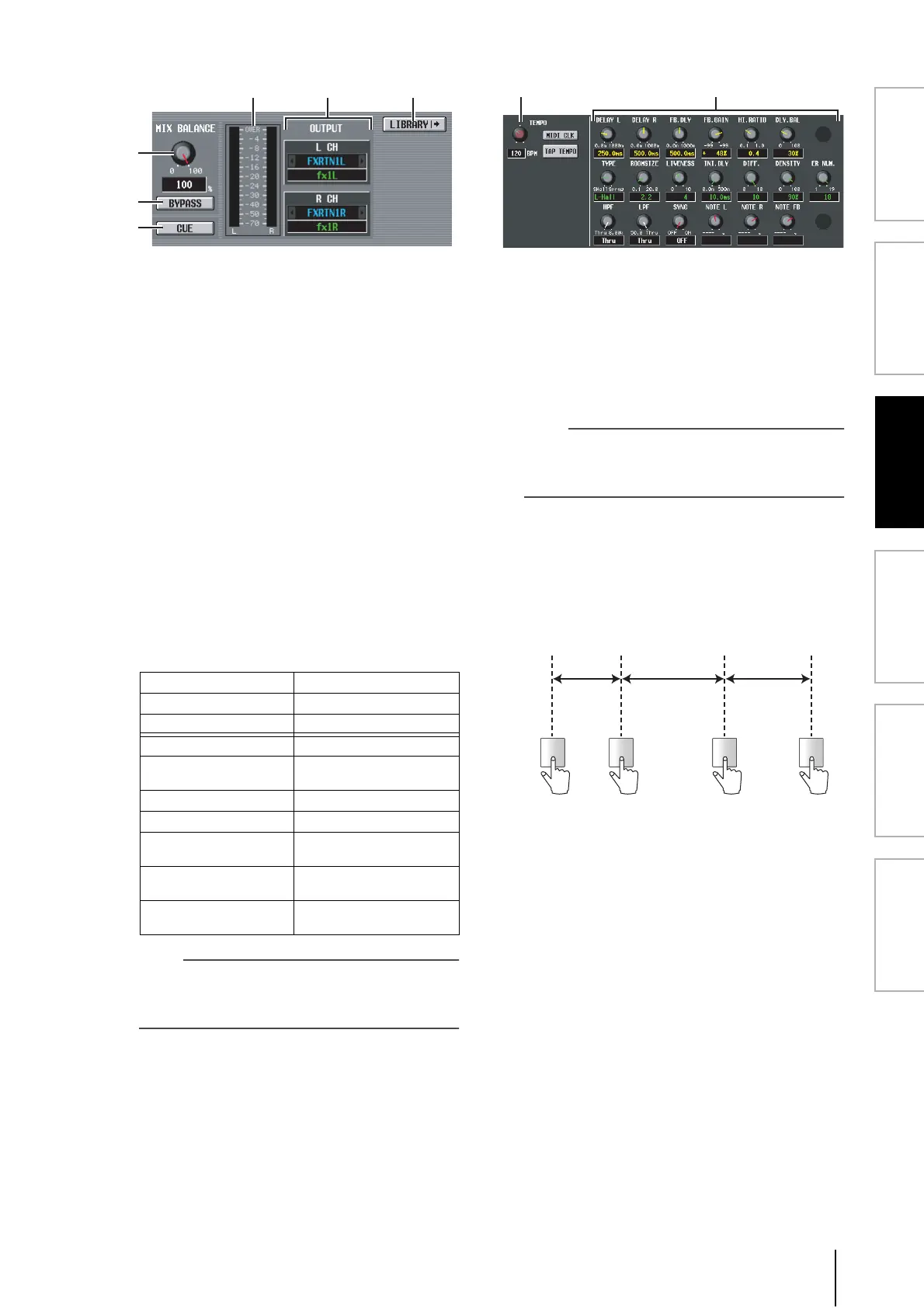

E MIX BALANCE
Adjusts the balance of the effect sound relative to the
original sound.
0 (%) outputs only the original sound, and 100 (%)
outputs only the effect sound.
F BYPASS
This button temporarily bypasses the effect.
G CUE
This button cue-monitors the output of the effect
shown in the screen. Cue is automatically defeated
when you switch to a different screen. (However, cue
will be held if you switch to the EFFECT ASSIGN
screen.)
H Output meter
Indicates the level of the signal being output from the
effect.
I Output patch
This box lets you select the signal path that will be
patched to the L/R output channels of the internal
effect. The selection method is the same as for Input
Patch. You can choose the following signal paths.
Note
Even if you’ve patched multiple channels in the INPUT
PATCH/OUTPUT PATCH function INSERT PATCH screen,
changing the input/output patch in this screen will turn off
patching to other channels.
J LIBRARY
This button accesses the EFFECT LIBRARY screen for
the currently selected effect.
K TEMPO parameter
If a delay-type or modulation-type effect type is
selected, the tempo parameter will be displayed here.
The TEMPO parameter specifies time-related parame-
ters in units of BPM (Beats Per Minute). For a delay-
type effect it sets the DELAY (delay time), and for a
modulation-type effect it sets the FREQ. (modulation
frequency).
Note
For some effect types, a parameter unique to the effect may
be shown instead of the TEMPO parameter. For example if
FREEZE is selected as the effect type, a button for recording/
playing the input signal is shown.
The BPM value can be edited using the on-screen
knob, or by repeatedly clicking the TAP TEMPO but-
ton. (In this case, the average interval between clicks is
detected. If the average value is outside the range of 20–
300 BPM, it will be ignored.)
If the MIDI CLK button is on, the TEMPO parameter
will synchronize to the MIDI timing clock being
received from the MIDI port.
L Effect parameters
This area shows parameters for the currently selected
effect type.
CH1–CH48 Input channel 1–48 input
STIN1–STIN4 (L/R) ST IN channel 1–4 (L/R) input
FXRTN1–FXRTN4 (L/R) FX RTN channel 1–4 input
INS CH1–INS CH48 Input channel 1–48 insert in
INS ST1 (L/R)–INS ST4 (L/
R)
ST IN channel 1–4 (L/R) insert
in
INS MIX1–INS MIX24 MIX channel 1–24 insert in
INS MTRX1–INS MTRX8 MATRIX channel 1–8 insert in
INS ST A (L/R)
STEREO A channel (L/R)
insert in
INS ST B (L/R)
STEREO B channel (L/R)
insert in
INS MON (L/R/C)
MONITOR channel (L/R/C)
insert in
5
6
7
ab c
First tap Second tap Third tap Fourth tap
The average of the intervals is input as the parameter
value (average of a, b, and c)
