Ventilation
148 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
2. Turn the rotary knob to adjust the frequency
value. The T
INSP value is adjusted at the same
time.
3. When the desired frequency value is displayed,
press the rotary knob to set the value. Both the
>Freq.< and the >T
INSP< keys turn green and
the I:E ratio remains constant.
PEEP changes

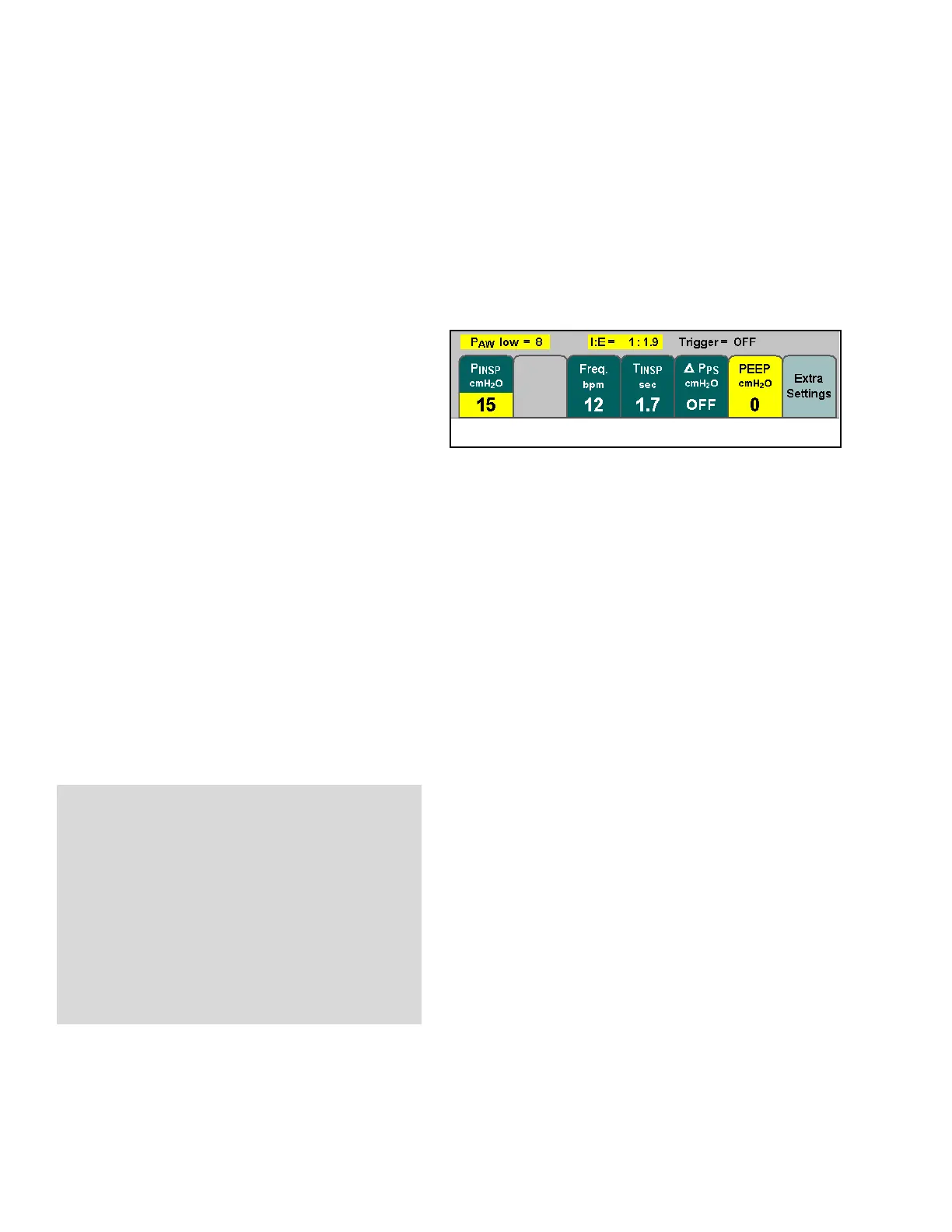

Figure 79. Automatic PEEP/PINSP ChangeDepending on the configuration, the inspiratory
pressure P
INSP can be automatically changed when
the PEEP value is changed in the pressure-
controlled ventilation mode.
To make a combined PEEP/P
INSP parameter
change:
1. Press the >PEEP< button on the Pressure Mode
screen. The key lights up yellow, along with the
value for P
INSP, to indicate that both values will
change (1 in Figure 79).
2. Turn the rotary knob to adjust the PEEP value.
The P
INSP value is adjusted at the same time.
3. When the desired PEEP value is displayed,
press the rotary knob to set the value. Both the
>PEEP< and the >P
INSP< keys turn green.
If so configured, the lower alarm limit for the
airway pressure P
AW will be automatically
changed when the PEEP value is changed.
Auxiliary common gas outlet
(Aux CGO) ventilation (Optional)
1
1
WARNING!
Risk of patient injury
Using a non-rebreathing system may injure the
patient if the following is not observed:
– Only use devices with a breathing bag and/
or pressure relief valve.
– Check the fresh-gas flow and the condition
of the breathing bag.
– Do not use the non-rebreathing system if
the flow is insufficient.
