Dräger Apollo User Manual

Cleaning and Maintenance
246 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
Connecting the breathing hoses

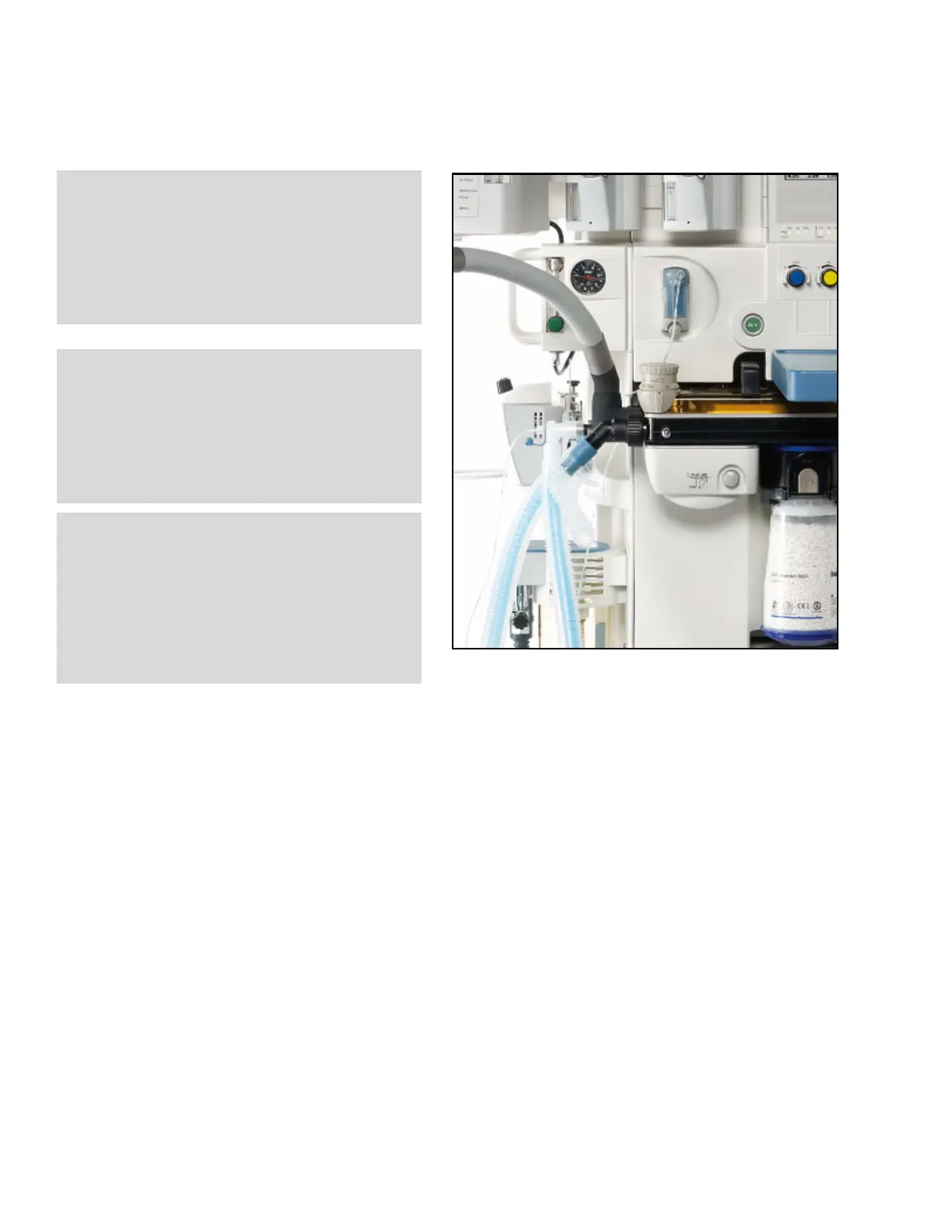

Figure 167. Breathing Hose and Water Trap Connections
1. Connect each breathing hose (1 in Figure 167) to
the inspiratory and expiratory port on the
breathing system (2 in Figure 167).
2. Connect the other end of each breathing hose to
the Y-piece (3 in Figure 167), or to the optional
filter on the Y-piece.
Installing the water trap and sample line
1. Push the new or empty water trap into its holder
on the front of the machine (4 in Figure 167) until
it clicks into place.
2. Connect one end of the sample line to the Luer
fitting on the water trap (5 in Figure 167).
3. Connect the other end of the sample line to the
Luer fitting on the Y-piece (3 in Figure 167).
Ensure that all Luer fittings are securely
connected.
4. Make sure that the sample line is guided
correctly by using the sample line clip. This clip
2
3
5
4
1
WARNING!
Risk of patient injury
If incompatible materials are used in the patient
circuit, metabolic products may build up.
Breathing hoses used on the Apollo must
comply with current ANSI standards.
WARNING!
Risk of burns
Conductive breathing hoses or face masks may
cause burns during HF surgery.
Do not use these types of hoses and masks in
combination with HF surgery.
WARNING!
Risk of patient injury
If the breathing hoses are incorrectly
connected, the patient might be inadequately
ventilated and supplied with fresh gas.
Make sure that all breathing hoses are correctly
connected to the breathing system.
