Monitoring mode

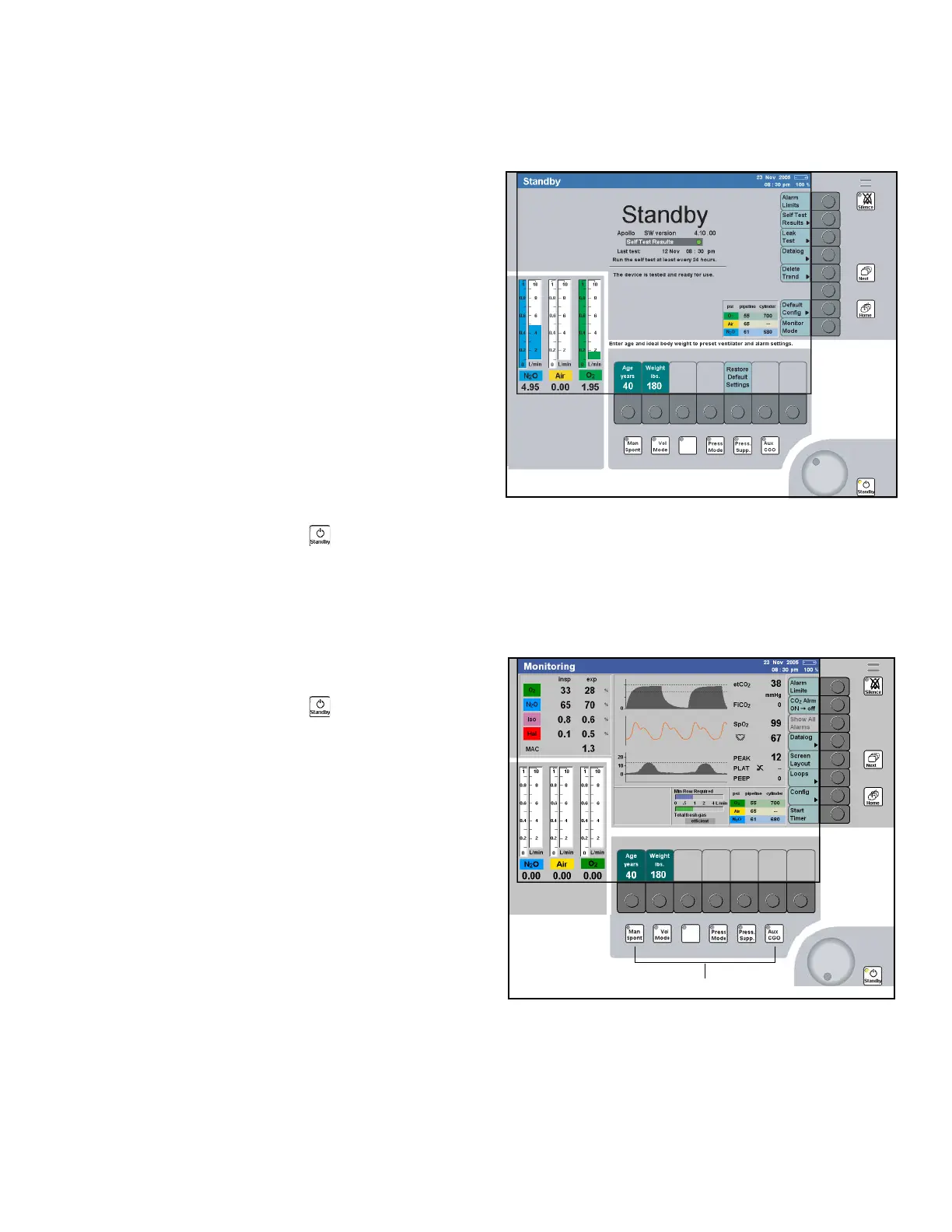

Figure 106. Standby screenThe monitoring mode is a special mode that can be
activated only in Standby and is used for specific
types of monitoring, e.g., sidestream CO
2 monitoring
during supplemental O
2 via nasal cannula with SpO2
monitoring. There is no fresh-gas delivery in
monitoring mode and the machine is not in any
ventilation mode.
The alarms that are active in monitoring mode are
comparable to those in Man/Spont mode (see the
chapter “Alarms” for more information.)
If fresh-gas flow is activated while in monitoring
mode, the system switches to Man/Spont mode.
Start monitoring mode from Standby
1. Press the >Monitor Mode< button on the
standby screen (1 in Figure 106).
or
1. Press the standby key > < (2 in Figure 106).
The monitoring screen appears (see Figure 107). Its
format is the same as the standard screen, but no
ventilation buttons are displayed and the indication
“Monitoring” is shown in the status field.
Figure 107. Monitoring Mode ScreenExit monitoring mode and return to
Standby
1. Press the standby key > < (1 in Figure 107),
and confirm by pressing the rotary knob
(2 in Figure 107).
Exit monitoring mode and begin ventila-
tion
1. Press any of the ventilation keys at bottom of the
display panel (3 in Figure 107), and confirm by
pressing the rotary knob (2 in Figure 107).
