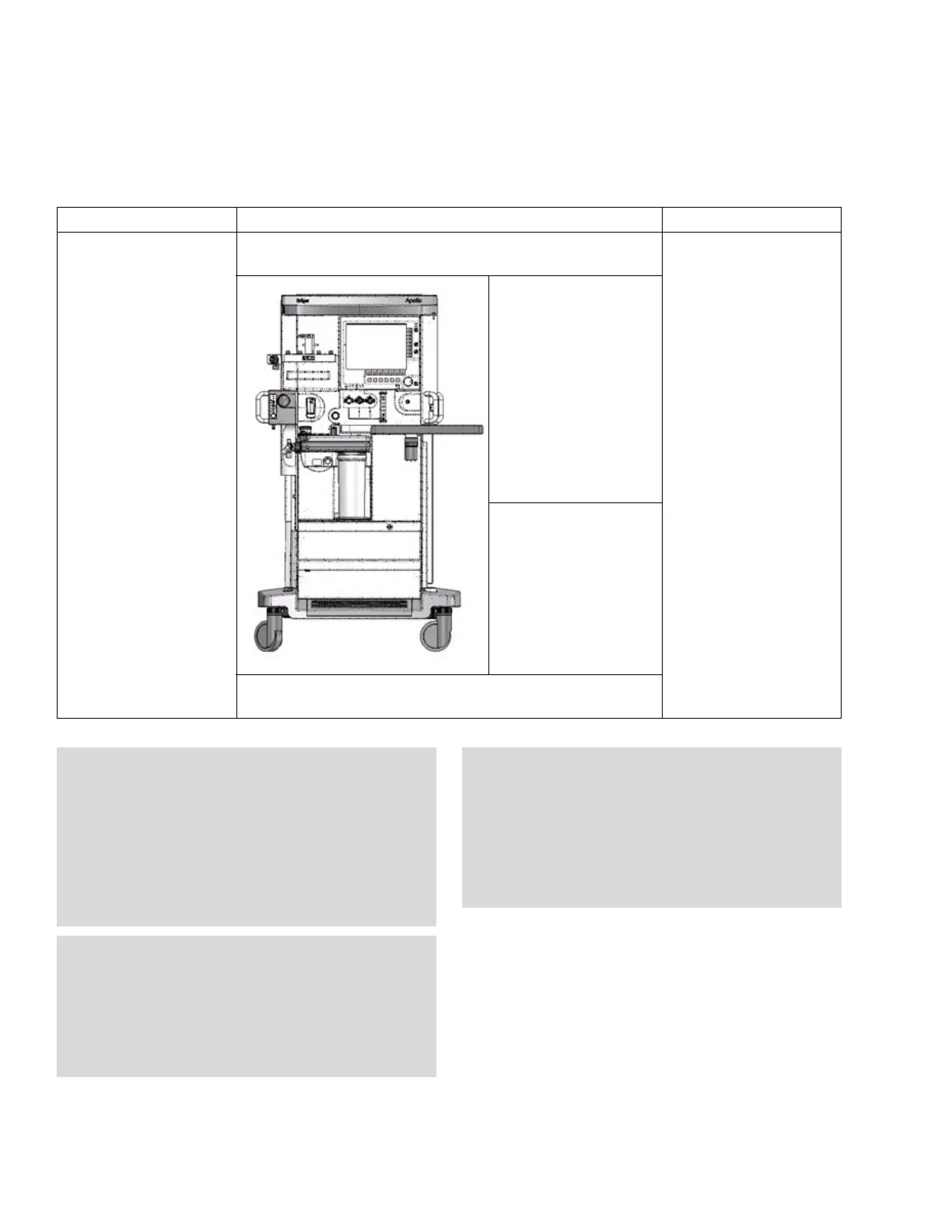

Accessory weight limits
The following figures specify the maximum safe weight
limits for accessories mounted to the Apollo.
Left side Top, front, and rear of device Right side
The maximum
permissible weight of
accessories is 25 kg
(55 lbs).
The maximum permissible weight of accessories on the top
cover of the device is 20 kg (44 lbs).
The maximum
permissible weight of
accessories is 25 kg
(55 lbs).
A maximum load of
15 kg (33 lbs) may be
applied with a clearance
of max. 40 cm (16 in) in
the upper position on the
lateral mounting rail.
Normal writing tray: The
maximum load is 20 kg
(44 lbs).
Large writing tray: The
maximum load is 15 kg
(28 lbs).
A maximum load of
15 kg (33 lbs) may be
applied with a clearance
of max. 40 cm (16 in) in
the upper position on the
lateral mounting rail.
The maximum load on
the lateral standard rail
is 5kg (11lbs).
The remaining weight
must be applied with a
clearance of max. 10 cm
(4 in).
The maximum load on
each drawer is 3 kg
(6.6 lbs).
The remaining weight
must be applied with a
clearance of max. 10 cm
(4 in).
A maximum weight of 35 kg (77 lbs) may be applied to the
rear of the device (gas cylinders, holders and accessories).
CAUTION!
Risk of device failure
If the anesthesia machine is operated when tilted,
components may be damaged or may function
improperly.
Do not operate the anesthesia machine if it is tilted
more than 5°.
CAUTION!
Risk of injury
If mounting accessories exceed the approved limits,
the anesthesia machine may tip over.
Maximum weight per arm = 33 lbs (15 kg).
CAUTION!
Risk of inadvertent movement
If not properly secured, the device may move
inadvertently during operation.
Apply the brakes on the device to ensure it cannot be
moved accidentally during operation.
