Cleaning and Maintenance
Instructions for Use Apollo SW 4.5n 233
Part Number: 9053586, 3rd edition
Removing the anesthetic gas receiving
system AGS (optional)

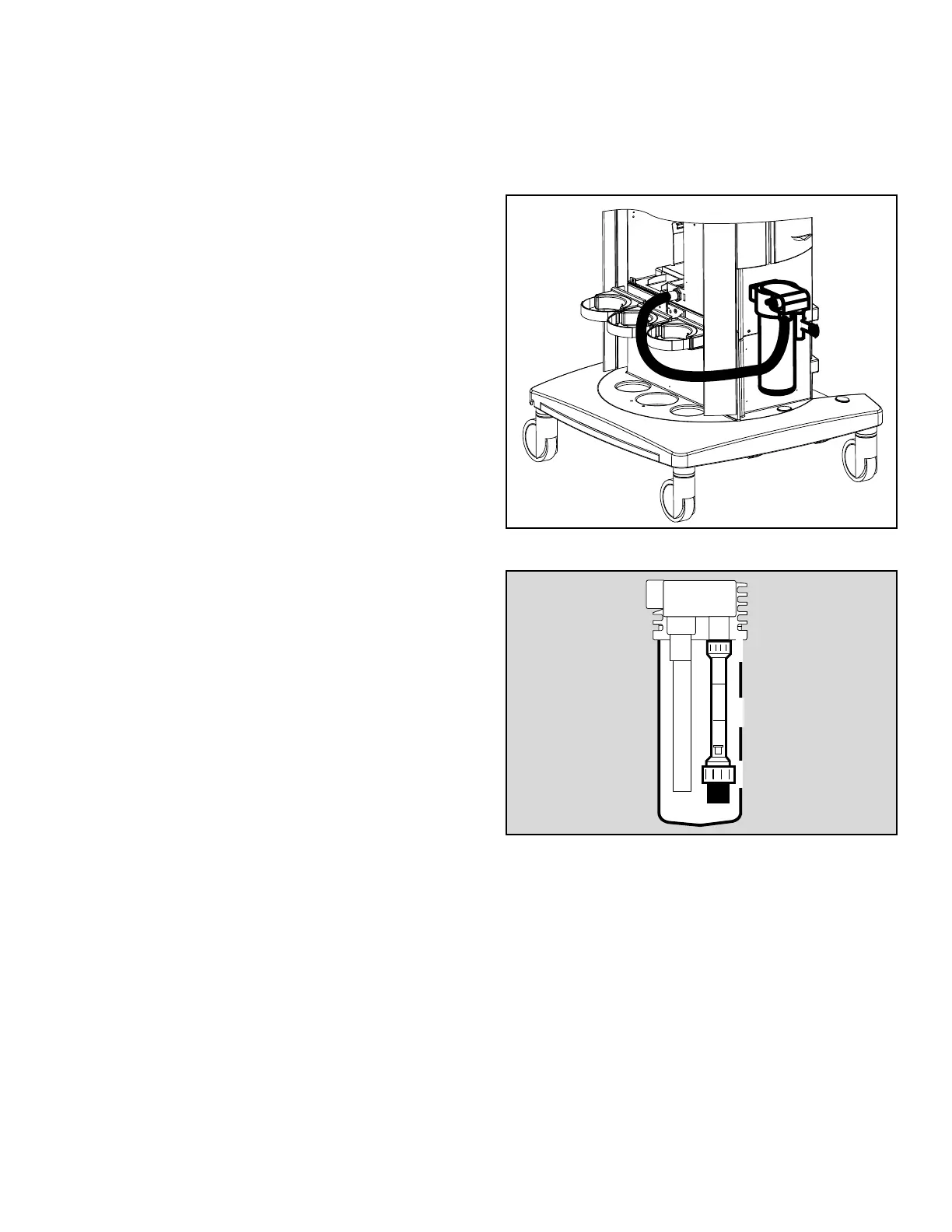

Figure 156. Anesthetic gas receiving system AGS1. Remove the waste-gas vacuum hose connected
between the hospital waste-gas disposal system
and the output connection (3 in Figure 156) on
the receiving system.
2. Remove the transfer hose connected between
the receiving system and the scavenger
connection on the back of the anesthesia
machine (1 and 2 in Figure 156).
3. Remove the receiving system from the machine.
4. Prepare the individual parts for conditioning in a
cleaning and disinfection machine.
Figure 157. AGS disassembly5. Disassemble the anesthetic gas receiving
system:
– Remove the buffer volume container.
– Unscrew the union nut (5 in Figure 157).
– Remove the flow tube (6 in Figure 157).
– Unscrew the union nut and remove the particle
filter (7 in Figure 157).
The particle filter can be disposed of with ordinary
waste after being sealed (see “Inspection” on
page 252).
Note the Instructions for Use of the anesthetic gas
receiving system AGS.
