Alarm displays

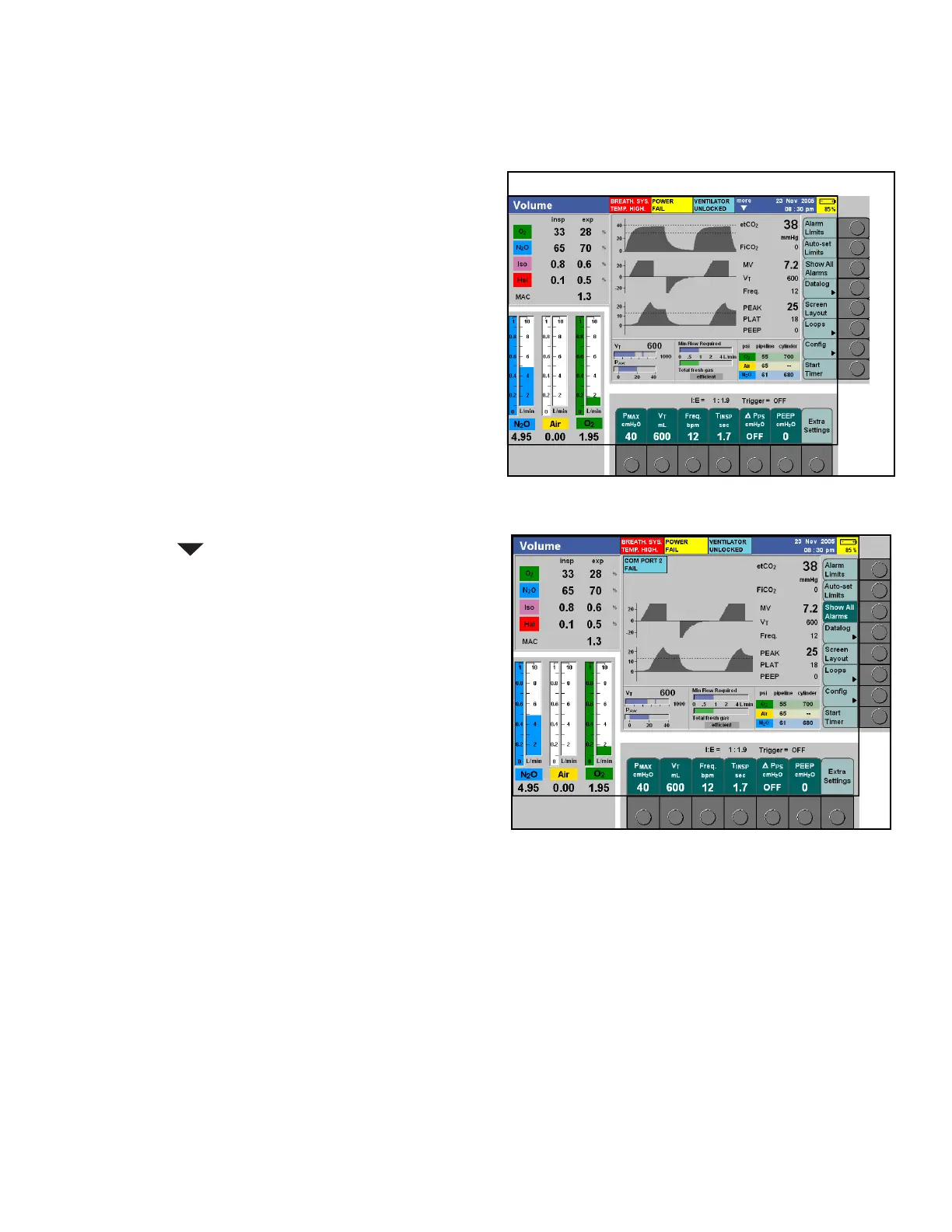

Figure 112. Multiple Alarms DisplayAlarm messages are displayed in the alarm message
field (1 in Figure 112) in order of priority.
All displayed alarms are sorted according to the three
classes defined on page 185. Within these classes,
the alarms are sorted and displayed according to an
internal priority system. A priority of 31 indicates the
highest, a priority of 1 the lowest priority. The priority
numbers are given in the table in the chapter “Alarm -
Cause - Remedy” on page 267. The internal priorities
are not displayed.
Up to three messages can be displayed
simultaneously. In some cases, the corresponding
measured values are highlighted on the screen by a
flashing background in addition to the alarm
message.
Figure 113. Additional Alarm FieldsIf more than three alarms occur simultaneously, the
symbol > < appears to the right of the alarm
message field (2 in Figure 112), and the button
>Show All Alarms< is activated on the right side of
the screen (3 in Figure 112).
When this button is pressed, the upper curve display
is replaced by up to six additional alarm message
fields for 15 seconds (see Figure 113).
If more than nine alarm messages are
simultaneously active, the lowest priority alarms will
not be displayed until the total number of active
alarm messages falls below nine.
The alarm tone sequence accompanying a displayed
alarm message with the highest priority will always
be sounded at least once completely. The alarm tone
sequences of alarm messages with lower priorities
will not sound if a higher priority alarm is activated,
i.e. the tone sequence thereof will sound.
If an alarm message of the same class as an active
alarm message is generated, the alarm tone of the
new alarm only sounds if the priority is higher than
the priority of the previously active alarm.
The upper curve display reappears when the button
>Show All Alarms< is pressed again or when the
15 seconds have expired.
1
3
2
more
