Dräger Apollo User Manual

Monitoring
Instructions for Use Apollo SW 4.5n 155
Part Number: 9053586, 3rd edition
Overview
The Apollo has three basic screens for the display of
monitoring information: standard, data, and trend.
The gas measurement and gas delivery windows
remain displayed in all three screens, but the
information presented in the graphical/numerical
window will change, depending on the selected
screen and user configuration.
This chapter defines all monitoring parameters and
provides instructions for selecting and configuring
monitoring screens and parameters.
Standard screen
The standard screen is automatically displayed
whenever a ventilation mode is selected.

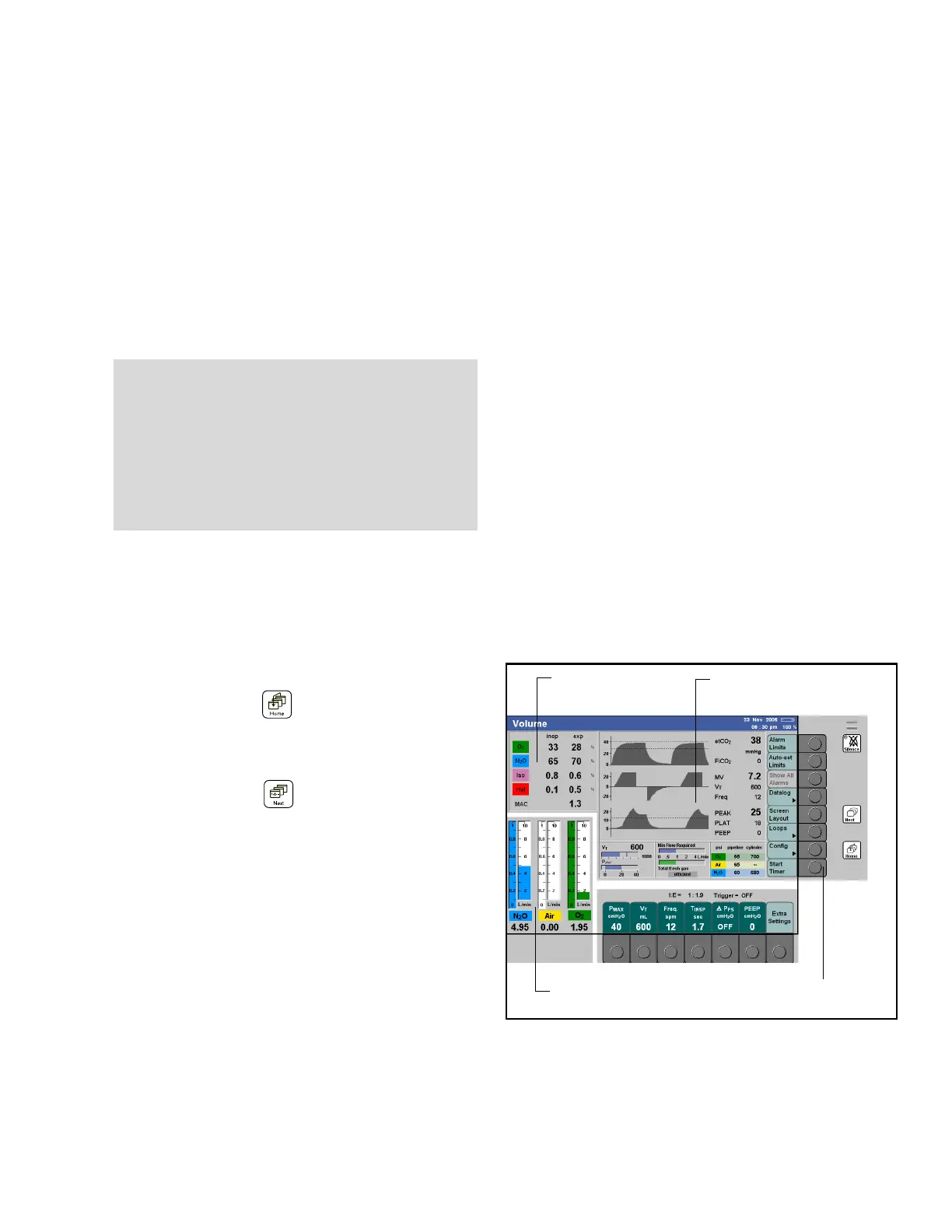

Figure 82. Standard Screen
This screen can always be selected during operation:
1. By pressing the > < key to display the
standard screen directly (1 in Figure 82).
or
1. By pressing the > < key repeatedly until the
standard screen is displayed (2 in Figure 82).
The most important parameters are grouped
together:
The left side of the standard screen displays the Gas
Measurement Display and the Fresh-Gas Delivery
Display which remain displayed on the screen at all
times during operation (refer to Figure 82).
The center of the standard screen displays the
Graphical/Numerical Display, which shows the
majority of the Apollo parameter information and can
be customized by the user for screen layout and/or
content. The top section contains real-time curves
and corresponding numeric values for monitored
parameters, and the bottom section contains
WARNING!
Risk of patient injury
If the display loses patient data, it is possible
that active monitoring is not being performed.
Close patient observation or alternate
monitoring de-vices should be used until
monitor function is restored.
1
2
Gas Measurement
Display
Graphical/Numerical
Display
Fresh-Gas Delivery
Display
Monitoring/Configuration
Buttons
