System Setup
74 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
Connecting the endotracheal aspi-
ration system (Optional)

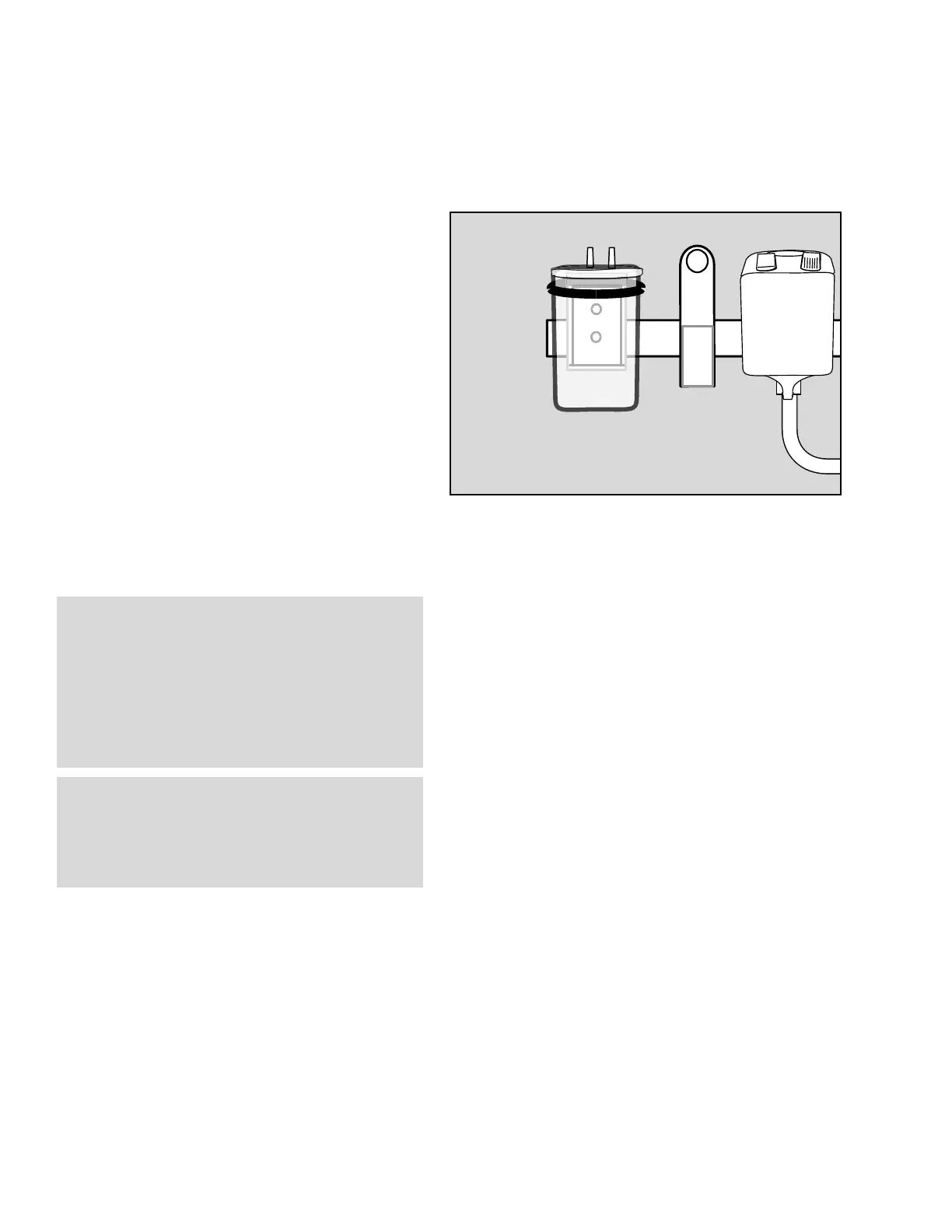

Figure 29. Endotracheal aspiration system Bracket
and Regulator
The optional endotracheal aspiration system for the
Apollo consists of a suction regulator and a bracket
that attaches to the side of the anesthesia machine.
The bracket is used to hold the regulator and a
suction bottle assembly of the customer’s choice.
1. Attach the endotracheal aspiration system
bracket to the side rail on the left side of the
anesthesia machine.
2. Mount the suction regulator (1 in Figure 29) onto
the bracket.
3. Prepare the suction bottle assembly according
the Instructions for Use provided with the bottle.
4. Install the bottle assembly in the slide mount
(2 in Figure 29) on the bracket.
5. Make all necessary connections between the
suction bottle, suction regulator, and piped
vacuum system as specified in the Instructions
for Use provided with the endotracheal aspiration
system..
Installing vaporizers
Install vaporizers as directed in the appropriate
Instructions for Use supplied with the vaporizers
available for use with the Apollo.
12
WARNING!
Risk of patient injury
If not used correctly, the suction unit may injure
the patient.
Prior to use, disconnect the patient from the
ventilator, and pay special attention to the
instructions for use of the suction unit.
WARNING!
Risk of patient injury
Do not apply unregulated suction to the patient
circuit when using this device.
