Cleaning and Maintenance
Instructions for Use Apollo SW 4.5n 245
Part Number: 9053586, 3rd edition
Installing the breathing bag and arm

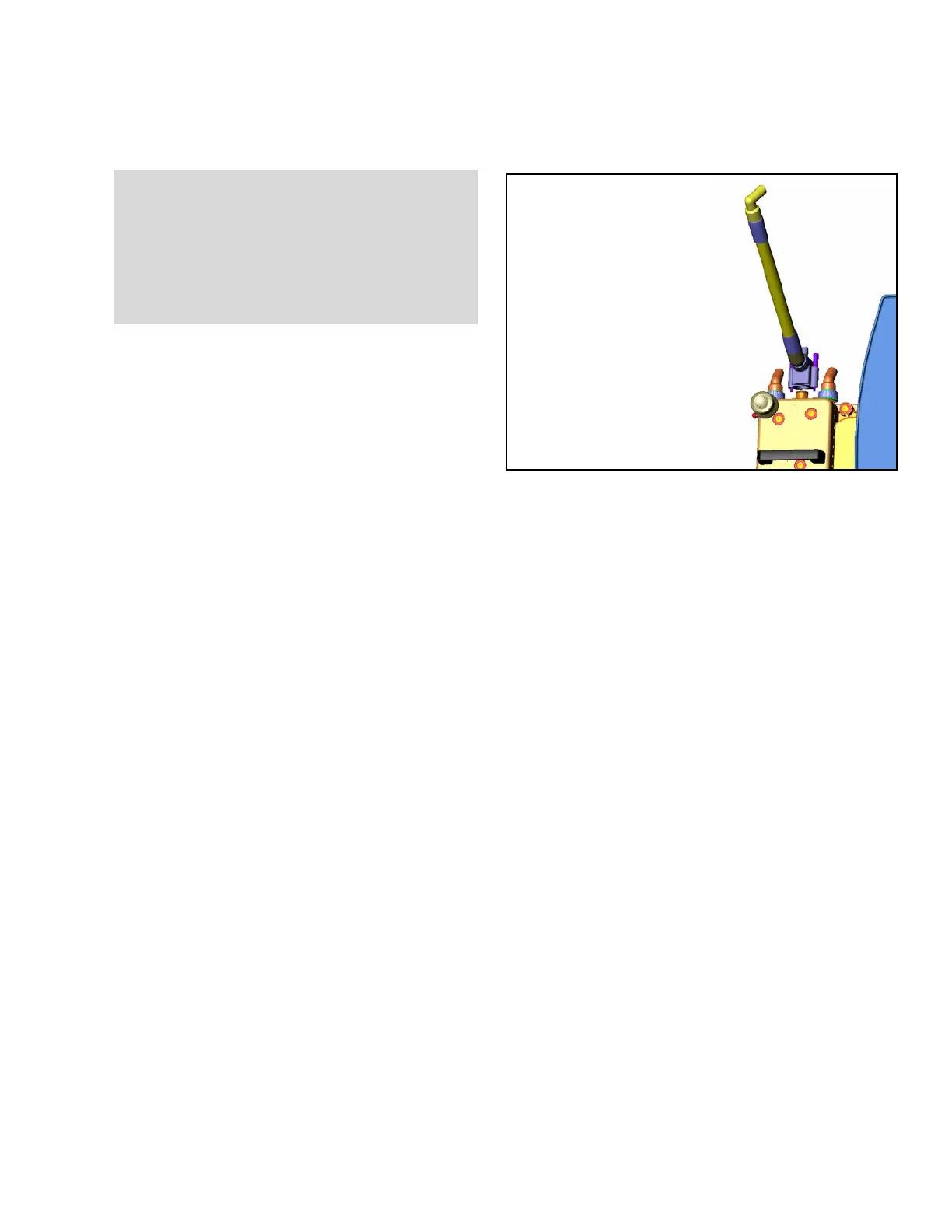

Figure 166. Breathing Bag Arm Connection
1. Slide the bag arm assembly onto the breathing
bag port on the side of the breathing system
(1 in Figure 166).
2. Tighten the two thumb screws (2 in Figure 166)
to secure.
3. Attach the 90° fitting to the end of the bag arm
(3 in Figure 166), and attach the breathing bag to
the other end of the fitting.
WARNING!
Risk of patient injury
If incompatible materials are used in the patient
circuit, metabolic products may build up.
Breathing bags used on the Apollo must comply
with current ANSI standards.
