Dräger Apollo User Manual

Monitoring
Instructions for Use Apollo SW 4.5n 179
Part Number: 9053586, 3rd edition
Connecting the SpO2 sensor to the
Apollo

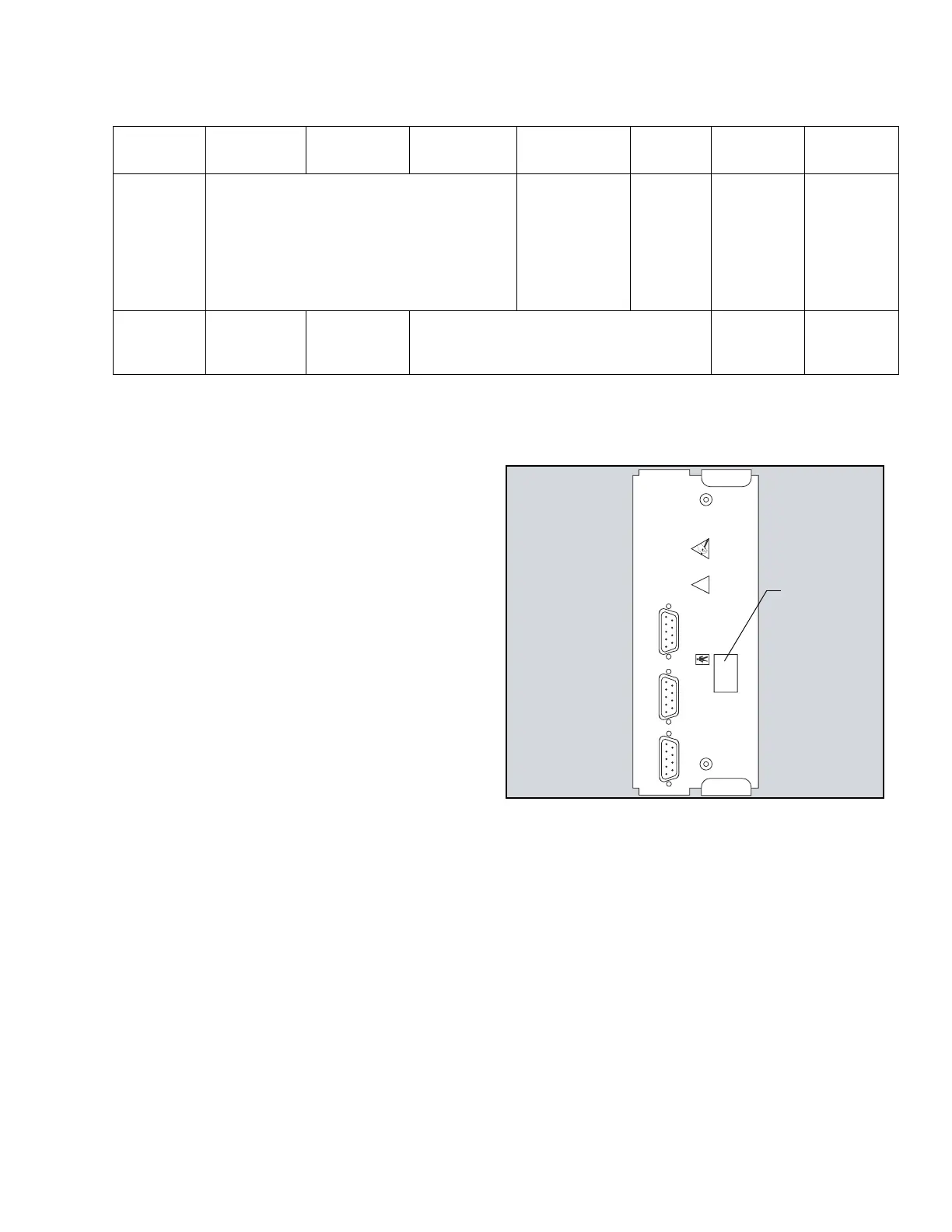

Figure 109. Location of SpO2 Sensor ConnectionAt the back of the machine:
1. Plug the sensor connector into the socket
marked >SpO
2< (see Figure 109).
Mobility of
the patient
Limited activity Inactive
patients only
Limited
activity
Inactive
patients
only, must
be checked
at least
every 8
hours
Limited
activity
Preferred
measuring
point
Ball of the
foot
Toe Finger Nose Forehead
Sensor type
OxiMax
MAX N
OxiMax
MAX I
OxiMax
MAX P
Durasensor
DS-100 A
OxiMax
MAX A
OxiMax™
MAX R
OxiMax
MAX FAST
COM 1 COM 2
IV System
SpO
2
!
Caution! Consult Accompanying Documents
ESD Sensitivity
SpO
2
sensor
socket
