IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
4-16 Section 4-3 - General Procedure
4-3-8 Color Flow Mode Checks
4-3-8-1 Preparations
1.) Connect one of the probes listed in 3-6-6 "Available Probes" on page 3-26, in Chapter 3 Installation
to the System probe connector.
2.) Turn ON the scanner (if it isn’t turned on already).

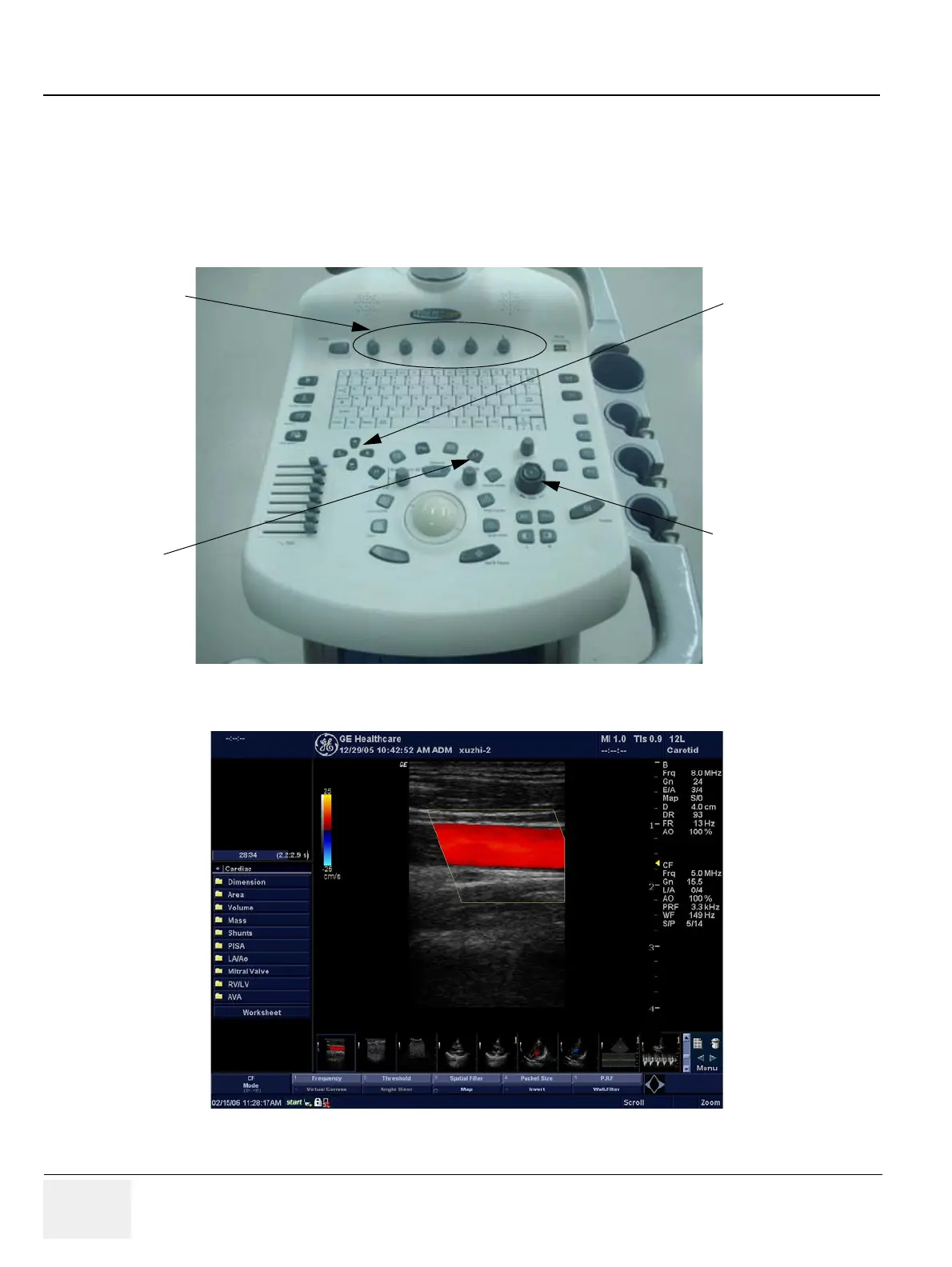

Figure 4-12 Controls available in Color Flow Mode
Figure 4-13 CFM Mode Screen Picture Example
Primary Menu
CF Mode
Secondary Menu
Frequency
Spatial Filter
Angle Steer
Packet Size
PRF
Map
Threshold
Invert
Wall Filter
Baseline
Line Density
Flash Suppression
Transparency Map
Focus Position
Frame Average
Power Output
Gain
