LOGIQ P3 S
ERVICE
M
A
NUAL
5-22
Section 5-3 - Power Diagrams
Section 5-3
Power Diagrams
5-3-1
Overview
The AC Power assy’s main tasks are to isolate and ou
tput to the AC/DC unit
which is inside the system
console. The input of AC power pack w
ill be the
AC outlet, the r
ange is AC 100v Min & 240v Max
configuration support is availabl
e in power pack.

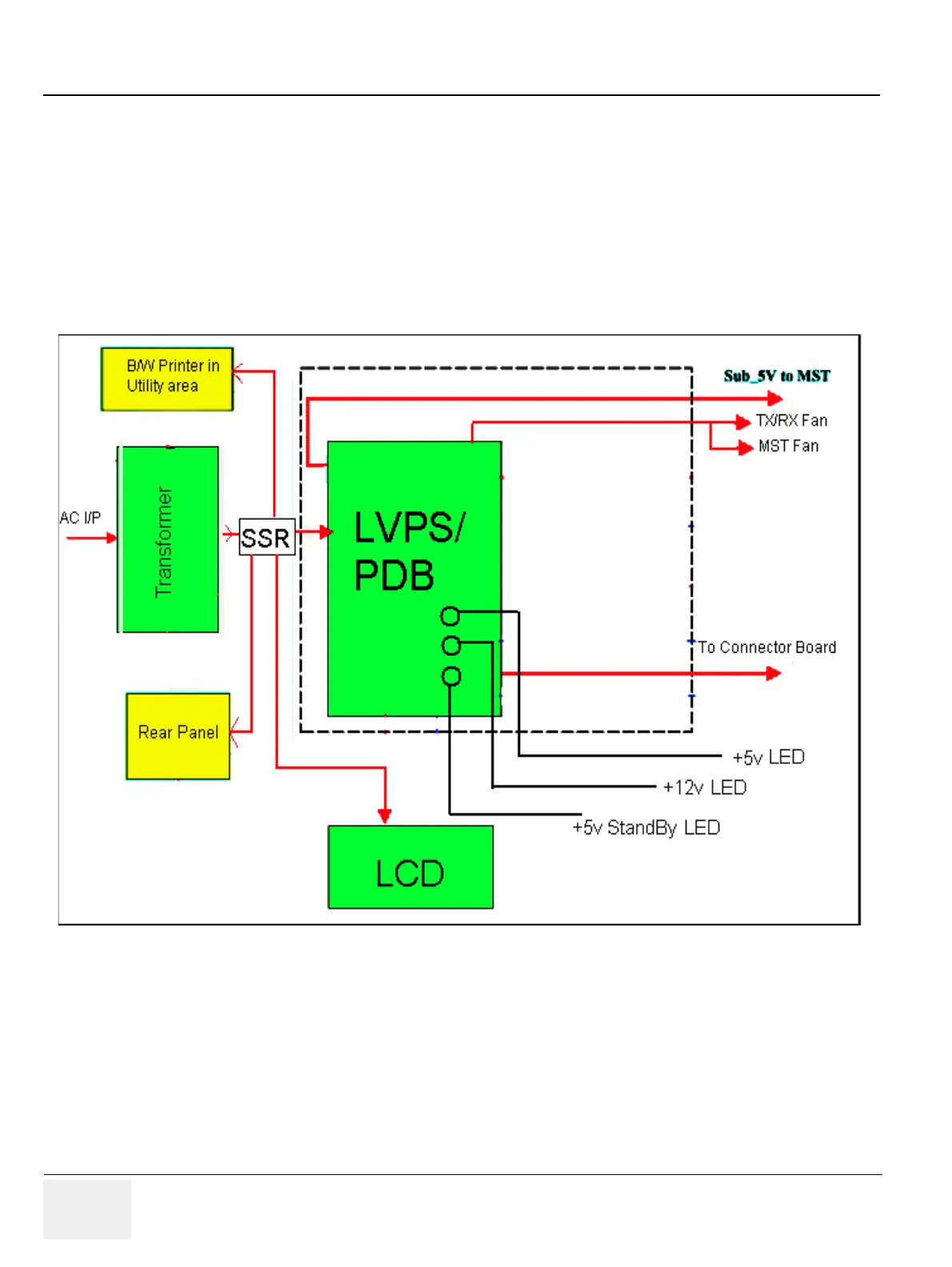

Figure 5-17 AC Power Distribut
ion Block Diagram (L
OGIQ P3)
157
159
