GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-86 Section 8-11 - Video Interface Board (5397507 - LP3 BT)
Section 8-11 Video Interface Board (5397507 - LP3 BT)
8-11-0-1 Tools
Common Philips screwdrivers
8-11-0-2 FRU BOM
This FRU part comes along with the two screws
8-11-0-3 Needed Manpower
1 person,
8-11-0-4 Preparation
Shutdown the system and switch off the main Circuit Breaker at the bottom of the rear side of the
system.
8-11-0-5 Removal Procedure
Remove the left side cover (Refer 8-4-2 on page 8-34 ) and remove the EMI cover (Refer 8-4-9 on page
8-46 ).
In the Video Interface Board, unscrew the two screws and remove all the cables connected to that
board.
8-11-0-6 Mounting Procedure
Install the new parts in the reverse order of removal.
8-11-0-7 Functional Checkout Procedure

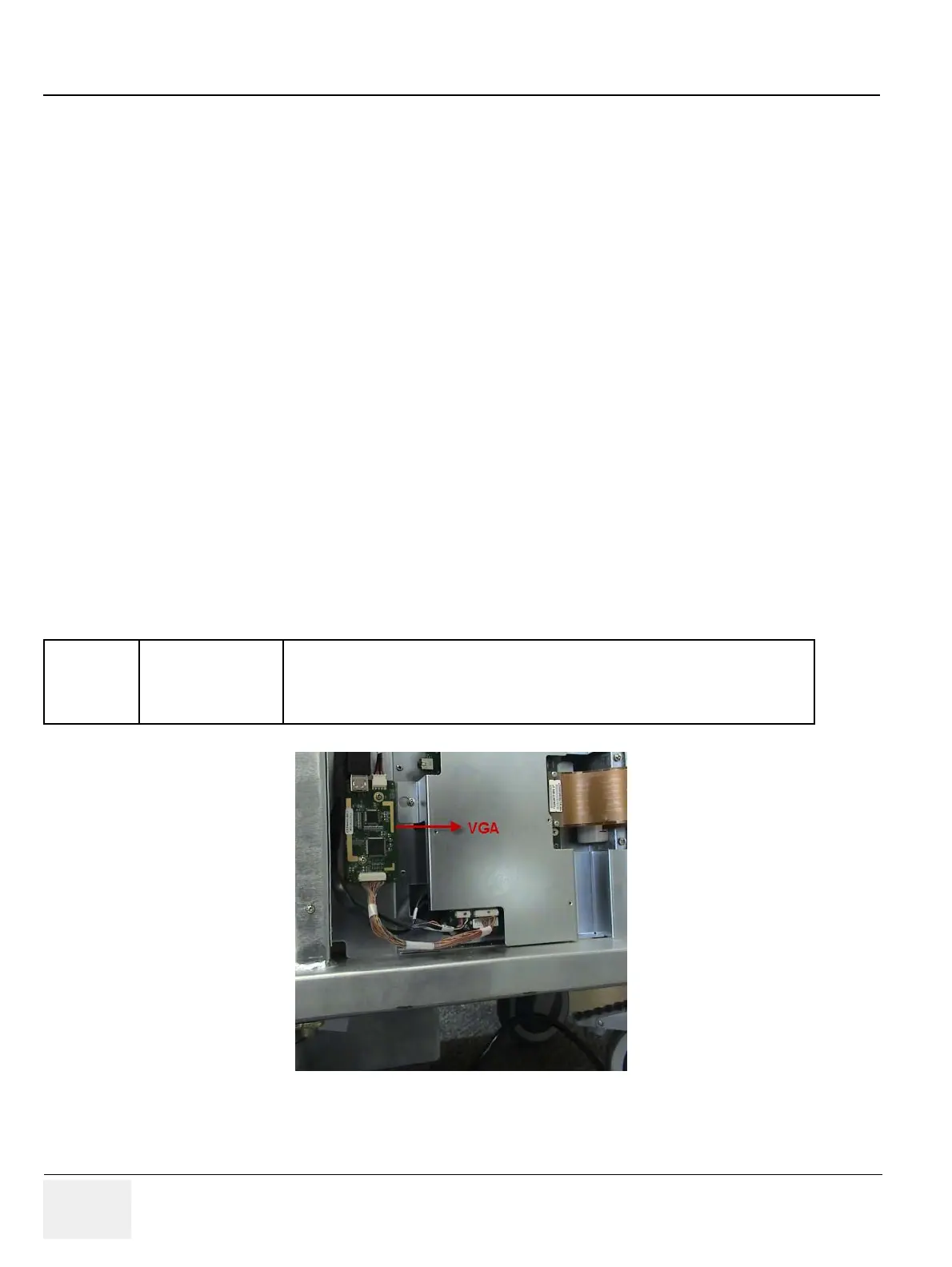

Figure 8-91 Video Interface Board
See Section Functional Test Debrief Script
4-3-1 Power On/Boot Up
Service Manual Direction 5308917-100, Section 8-2-3. Equipment passes all required tests
and is ready for use.
4-3-2
Power Off/
Shutdown
To Next Page
