IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 7 Diagnostics/Troubleshooting 7-17
7-6-1-7 Noise in Color Flow

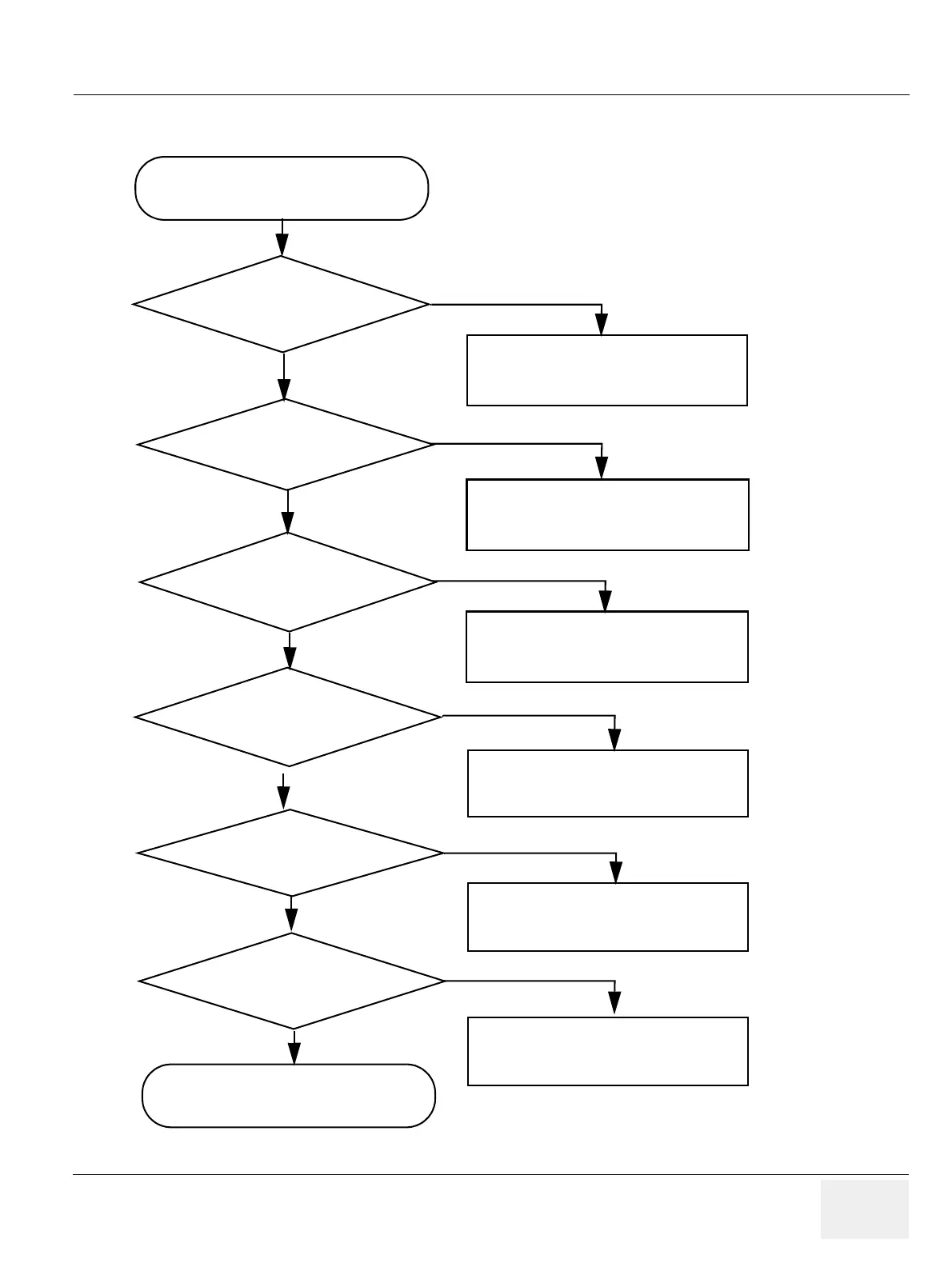

Figure 7-14 Noise in Color Flow
Noise in Color Flow.
Keep the Scanner away from those
electrical devices.
YES
NO
Is there any electrical
devices that affect the
Scanner.
Is the System Ground
taken in right way?
Set the System Ground.
NO
YES
Does the noise vary
according to probe cable
routing?
NO
END
Replace the probe.
YES
Is the TX64, RX64 & Flex
Cables assembled or in-
serted properly?
YES
NO
Re Insert the PWAS & Cables &
Screw the screws.
Is the shielding emi cover
assembled properly?
YES
Are all cable located & In-
serted properly in right
NO
Assemble it properly.
NO
Route it properly.
YES
