GE PROPRIETARY
TO
GE
D
IRECTION
5308917-100, R
EVISION
8
LOGIQ P3 S
ERVICE
M
A
NUAL
5-16
Section 5-2 - PWA Assy Diag
rams
5-2-4
CWD

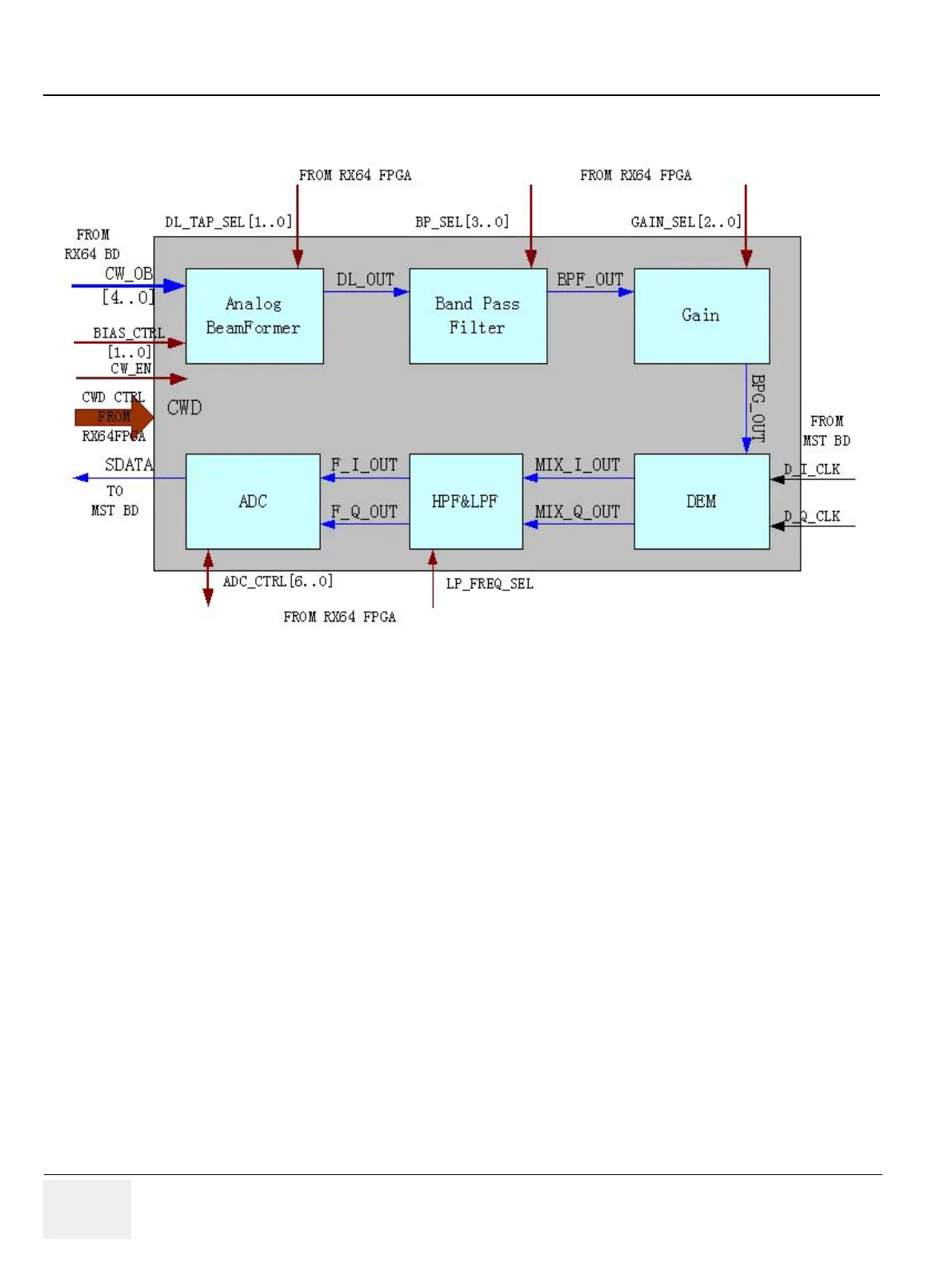

Figure 5-12 CWD Block Diagram
•
CWD: Continue wave dop
pler board
•
DEM: Demodulator
•
HPF: High pass filter
•
LPF: Low pass filter
5-2-4-1
Description
This diagram describe
s LOGIQ P3 CWD board, it resides under RX64 board.
The main
function:
•
Generate continue wave form image data.
151
153
