GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-68 Section 8-5 - USB Cable Set (FRU P/N: 5315039)
8-5-6 TX Board (FRU No. 5389402 - P3/P3BT)/ Flex Cable (Con to Tx) Assy (FRU
No.5315108)
This is a description on how to remove and replace the TX Board or Flex cable.
8-5-6-1 Tools
• Common Phillips screwdrivers
8-5-6-2 Needed Manpower
• 1 person, 30 minutes
8-5-6-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-5-6-4 Removal Procedure
1) Remove the connector board assembly. Refer section 8-5-5 on page 64
2) Loosen the Five screws (1,2,3,4,5,) of TX board from the system. Refer Figure 8-76 on page 8-68
3) Remove the Tx board from the system. Refer Figure 8-76 on page 8-68

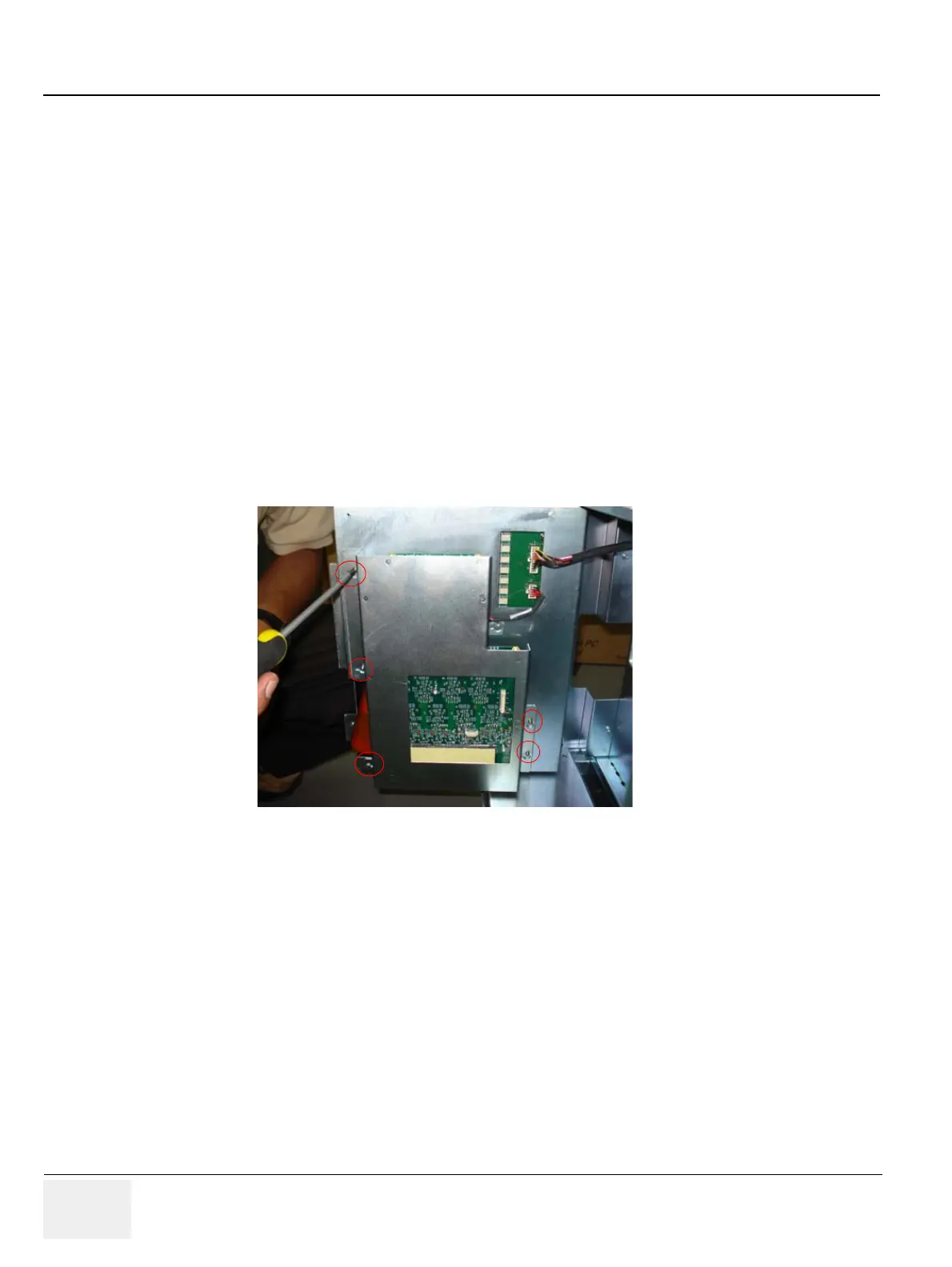

Figure 8-76 TX board Assembly
3) Pull the Tx board from the system as shown below
4) Remove the Tx conn board cable, as shown in figure below
To Next Page
