GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
5-24 Section 5-4 - Common Service Platform
Section 5-4
Common Service Platform
5-4-1 Introduction
The Service Platform contains a set of software modules that are common to all PC backend ultrasound
and cardiology systems. The Common Service Platform will increase service productivity and reduce
training and service costs.
5-4-2 Global Service User Interface (GSUI)
5-4-2-1 Internationalization
The user interface provided by the service platform is designed for GE personnel and as such is in
English only. There is no multi-lingual capability built into the Service Interface.
5-4-2-2 Service Login
Select Utility
->Service. This button links the user or the Field Engineer (FE) to the service login screen.
5-4-2-3 Access / Security
The service interface has different access and security user levels. Each user is only granted access to
the tools that are authorized for their use.
NOTE: A Service Dongle is necessary for use by GE Service when performing proprietary level diagnostics.
OnLine Center access to the scanner requires the password and they must have ‘Disruptive’
permission and customer input to run diagnostics.

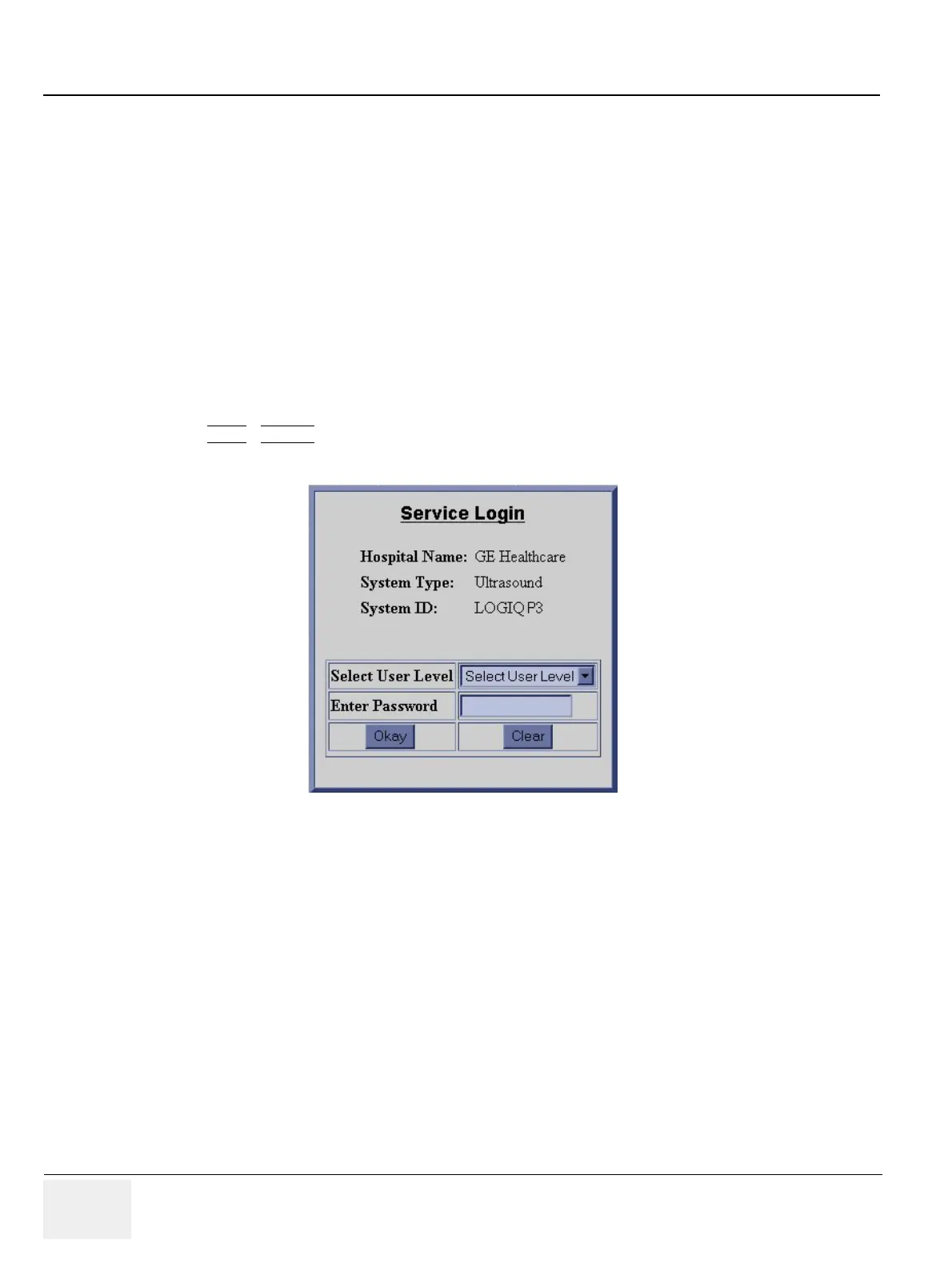

Figure 5-19 Service Login Screen
