8-30 Section 8-3 - Keyboard Rear Cover Assy (FRU P/N: 5315122)
8-3-1 Probe Holder (FRU P/N: 5168500) / Gel Bottle Holder (FRU P/N: 5168636)
This is a description on how to remove and replace the Probe holder Assembly.
8-3-1-1 Needed Manpower
• 1 person, 15 minutes
8-3-1-2 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-3-1-3 Removal procedure
1) Pull the probe holder out by slightly pushing it upwards with your hands.
Refer Figure 8-32 on page 8-30

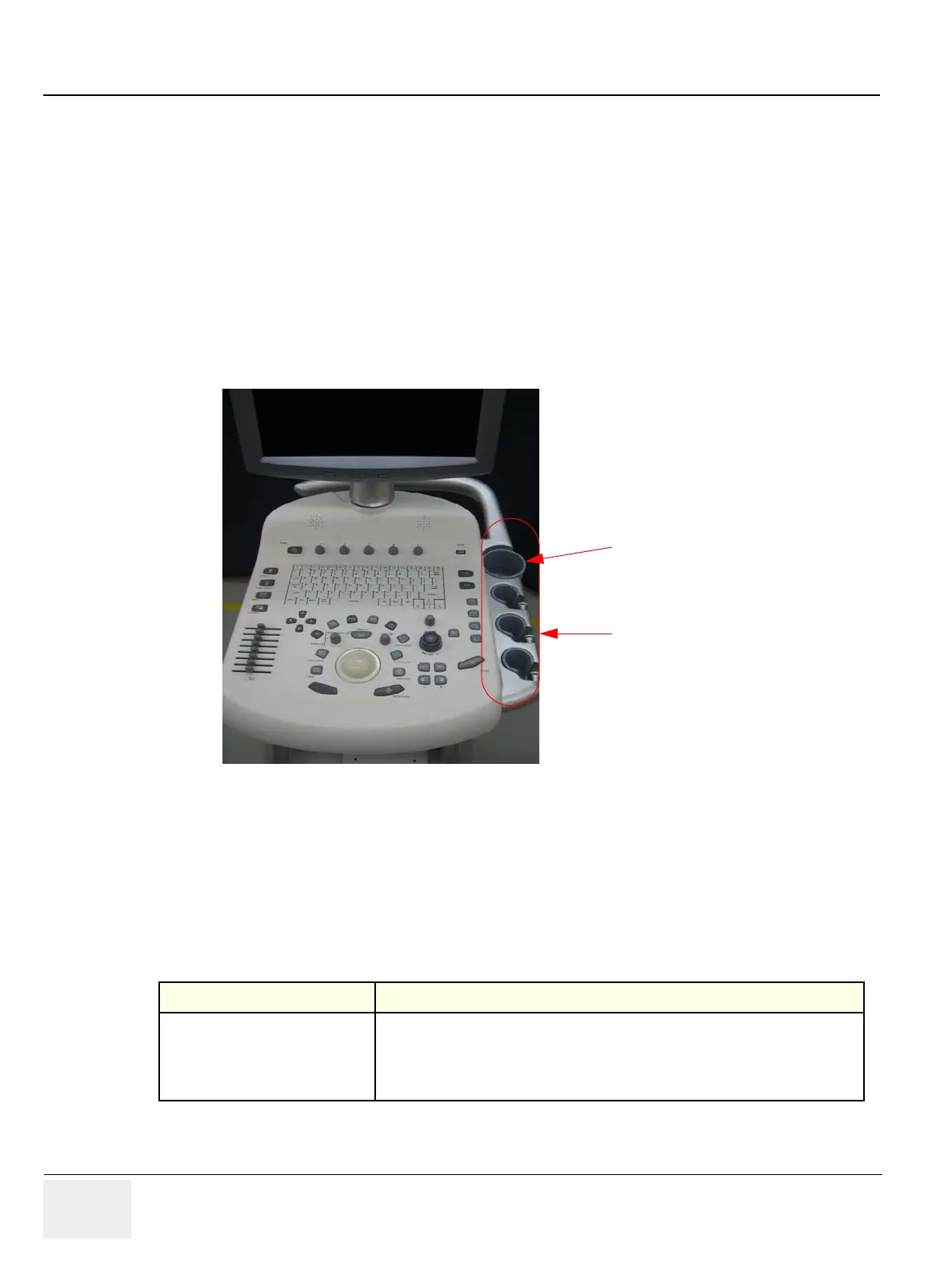

Figure 8-32 Probe Holder
8-3-1-4 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-3-1-5 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
Service Manual Direction 5308917-100, Section 8-3-2. Equipment passes all required
tests and is ready for use.
