GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-61
8-5-4 Rear Panel Assy (FRU P/N: 5313708-1) - LOGIQ P3
Rear Panel Assy (FRU No. 5368251-1) - LOGIQ P3BT10
This is a description on how to remove and replace the Rear Panel Assy.
8-5-4-1 Tools
• Common Phillips screwdrivers
8-5-4-2 Needed Manpower
1 persons, 15 minutes
8-5-4-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-5-4-4 Removal Procedure
1) Remove the rear cover . Refer Refer section 8-4-3 on page 35
2) Loosen the Five screws (1,2,3,4) of rear panel assembly of the system. Refer Figure 8-68 on page
8-61

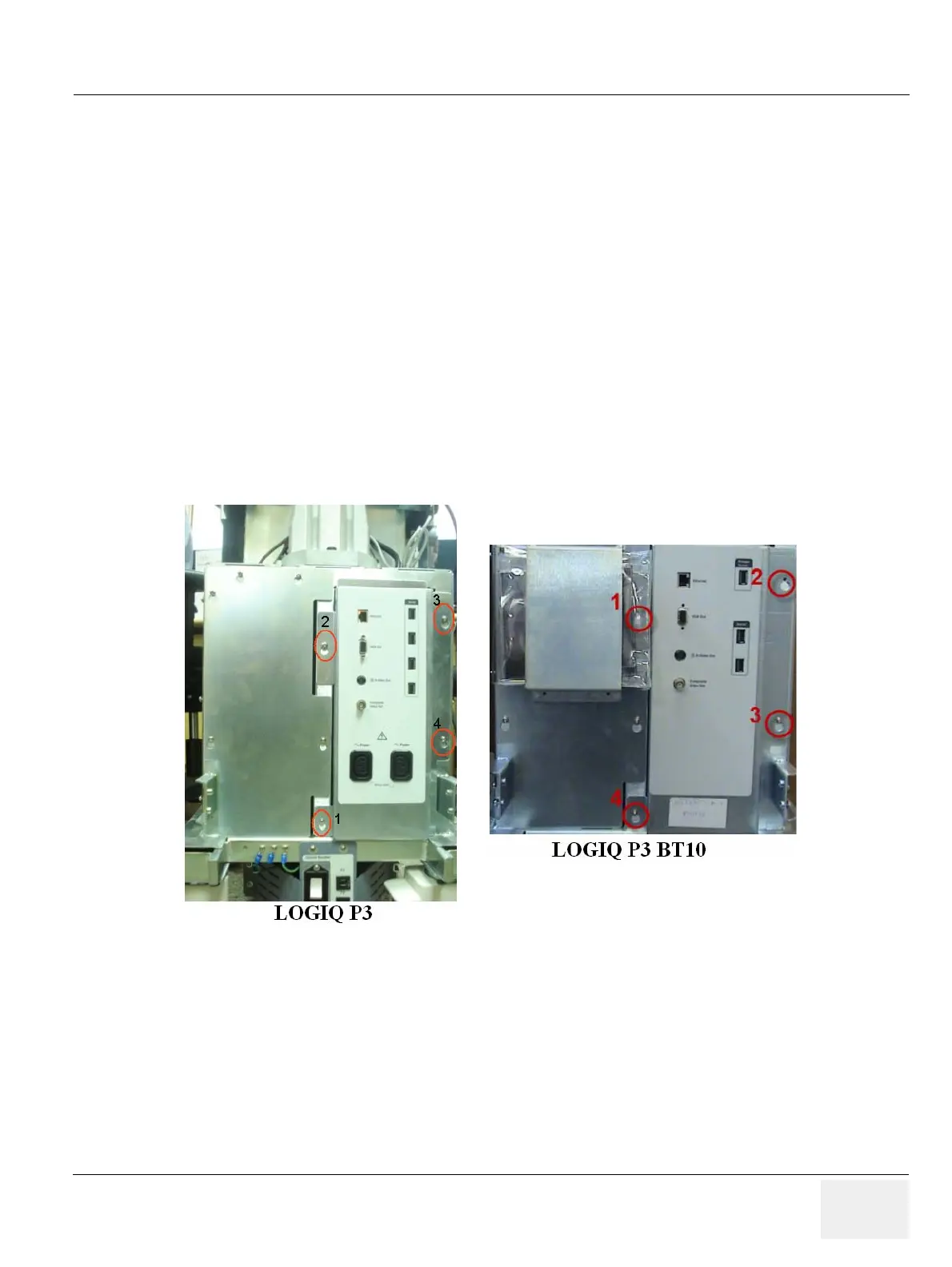

Figure 8-68 Rear pannel Assembly
3) Push upwards & pull out the Rear panel assembly by the slot marked (A,) in the Figure 8-69 on page
8-62
