GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
4-32 Section 4-3 - General Procedure
4-3-14-4 Archiving Images (cont’d)
11.)Press Finish
after Backup/Move complete.
All databases, presets and images should now be saved to removable media.
4-3-14-5 Full Backup
1.) Connect the USB HDD to system.
2.) Select Backup/Restore, then Emergency Repair Disk.
3.) Select “Reminder Dialog Interval Days”.

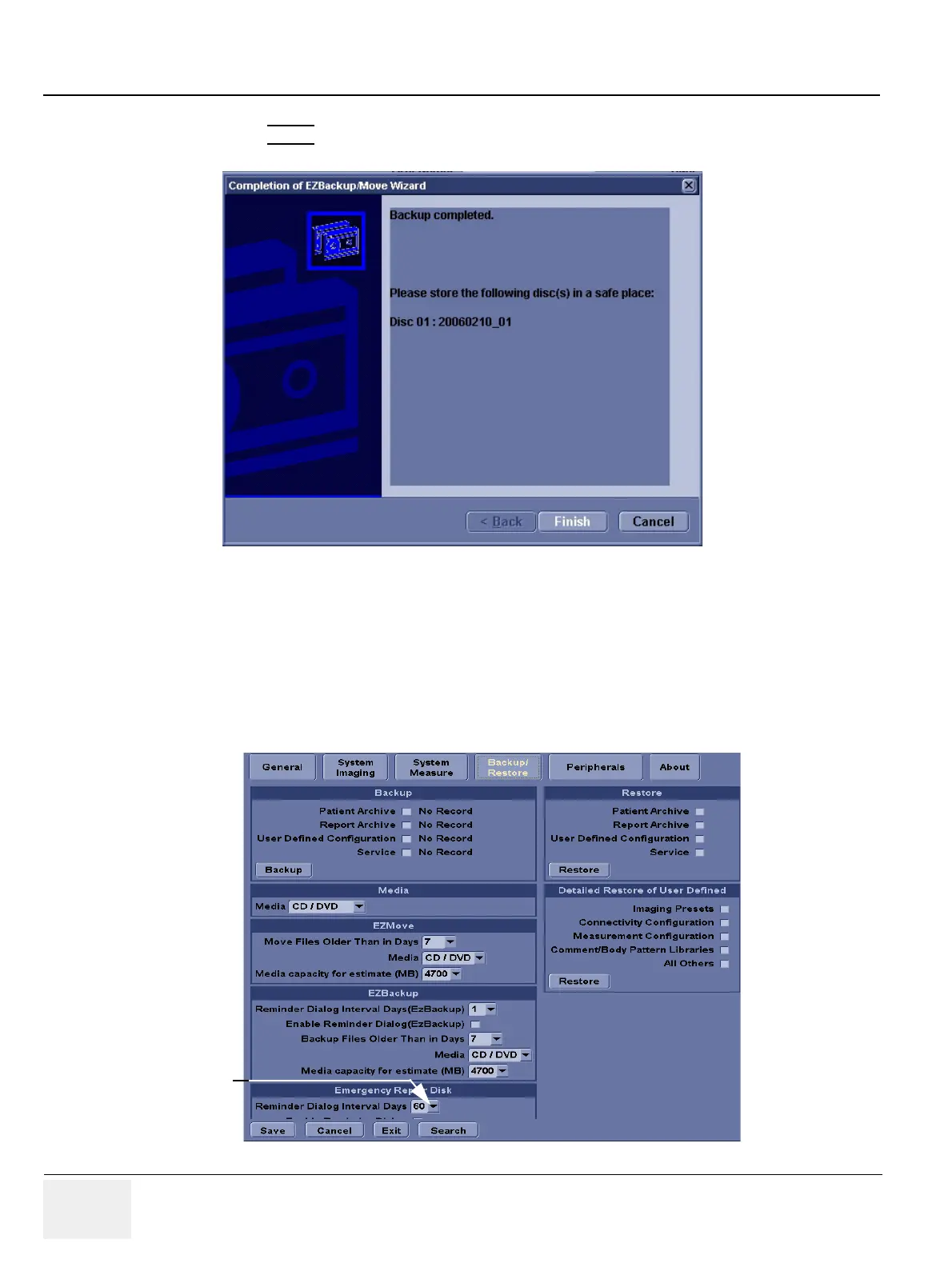

Figure 4-24 EZBackup/Move complete
Figure 4-25 Emergency Repair Disk
Reminder Dialog
Interval Days
To Next Page
