IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 9 Renewal Parts 9-3
Section 9-3
Operator Console Assy
1.) Peripheral Device (Signals I/O Port, Power In)
2.) Three Probe Port
3.) ECG
4.) DVD-RW Drive
5.) Monitor
6.) USB Port
7.) B/W Printer Option
8.) Probe Holder
9.) Gel Holder
10.) VGA Connector
11.) Ethernet Connector
12.) S Video Connector
13.) BNC Connector
14.) USB Ports
15.) Circuit Breaker
16.) Power connector

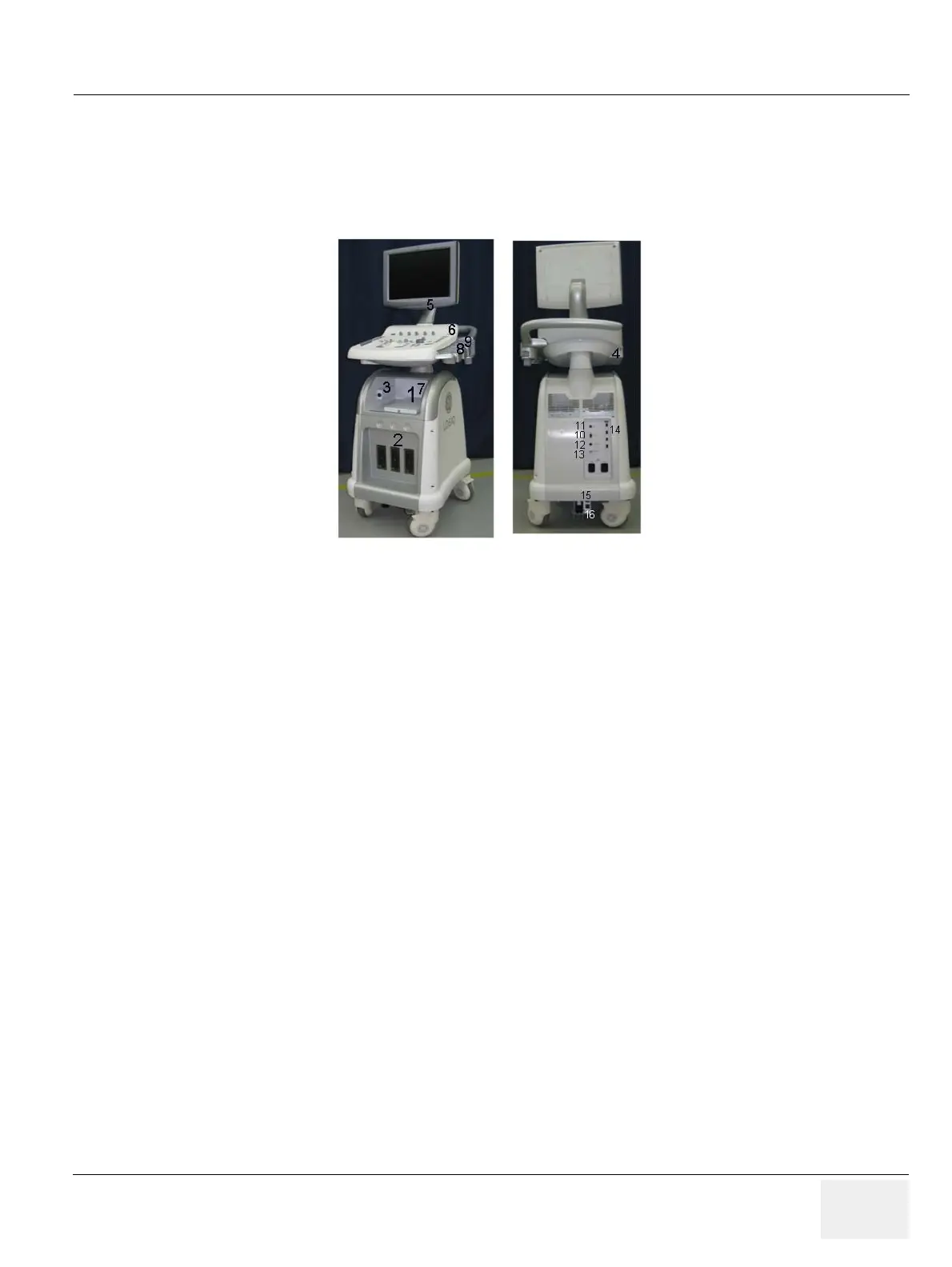

Figure 9-1 OPERATOR CONSOLE ASSY
