IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-10 Section 8-2 - Disassembly/Re-assembly of LOGIQ P3
8-2-7 Keyboard Assembly for P3 (FRU P/N: 5314404)
This is a description on how to remove and replace the keyboard Assembly.
8-2-7-1 Tools
• Common Torx screwdrivers
8-2-7-2 Needed Manpower
• 1person, 10 minutes
Note: The Freeze key is part of Keyboard.
8-2-7-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-2-7-4 Removal Procedure
1) Unscrew the three screws (A,B,C) of keyboard bottom cover of the system.
Refer Figure 8-10 on page 8-10

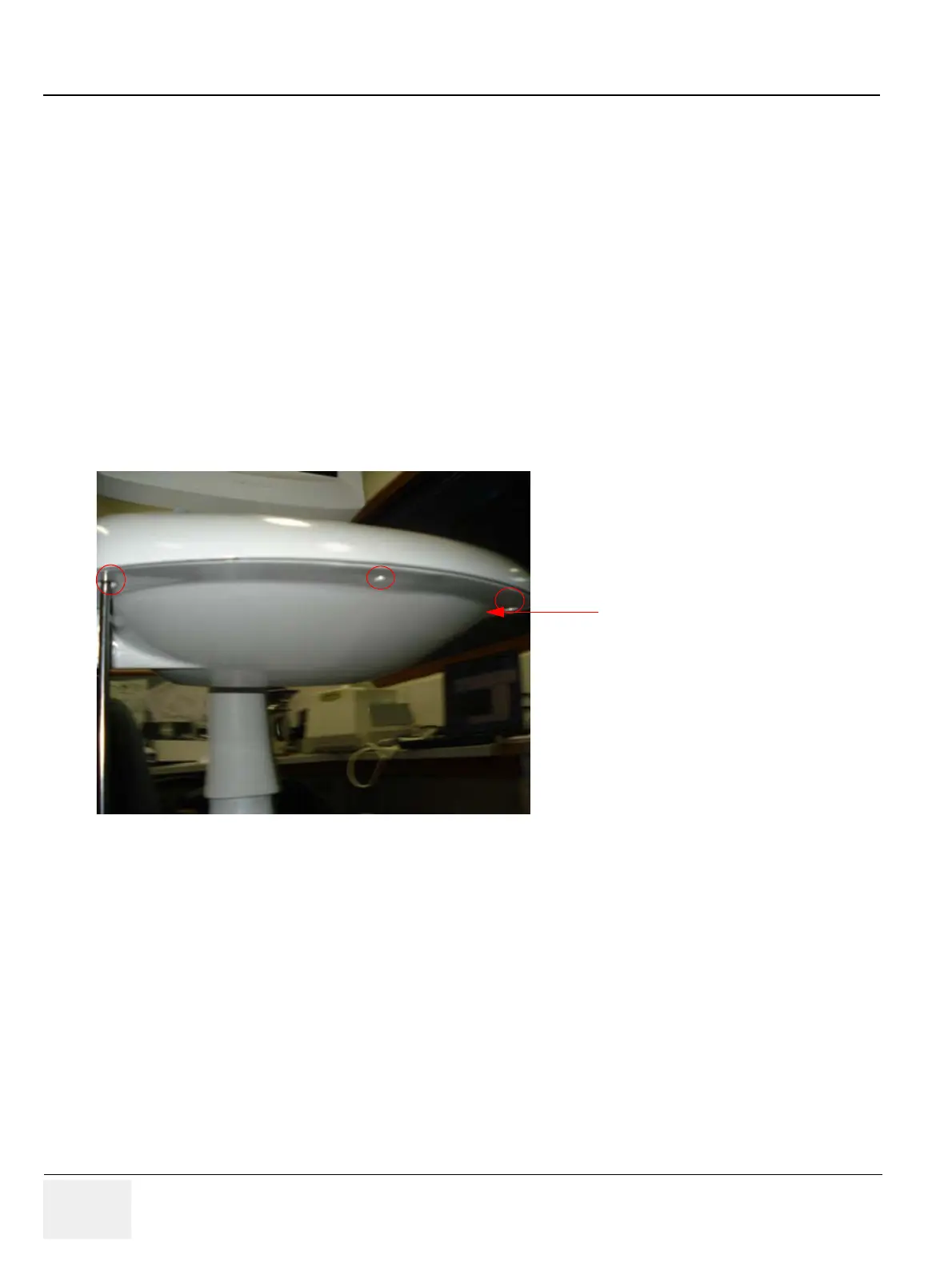

Figure 8-10 keyboard Bottom view
B
C
Remove the three screws as shown.
A
