8-60 Section 8-5 - USB Cable Set (FRU P/N: 5315039)
8-5-3 FAN Assy (FRU No.: 5314414)
8-5-3-1 Tools
Common Philips screwdrivers
8-5-3-2 Needed Manpower
1 person, 15 minutes
8-5-3-3 Preparations
Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-5-3-4 Removal Procedure
To remove MST side FAN
Remove the side cover. Refer section 8-4-2 on page 34 to remove the LH-side cover. Refer Figure 8-
67 on page 8-60 to remove the EMI cover and then MST.

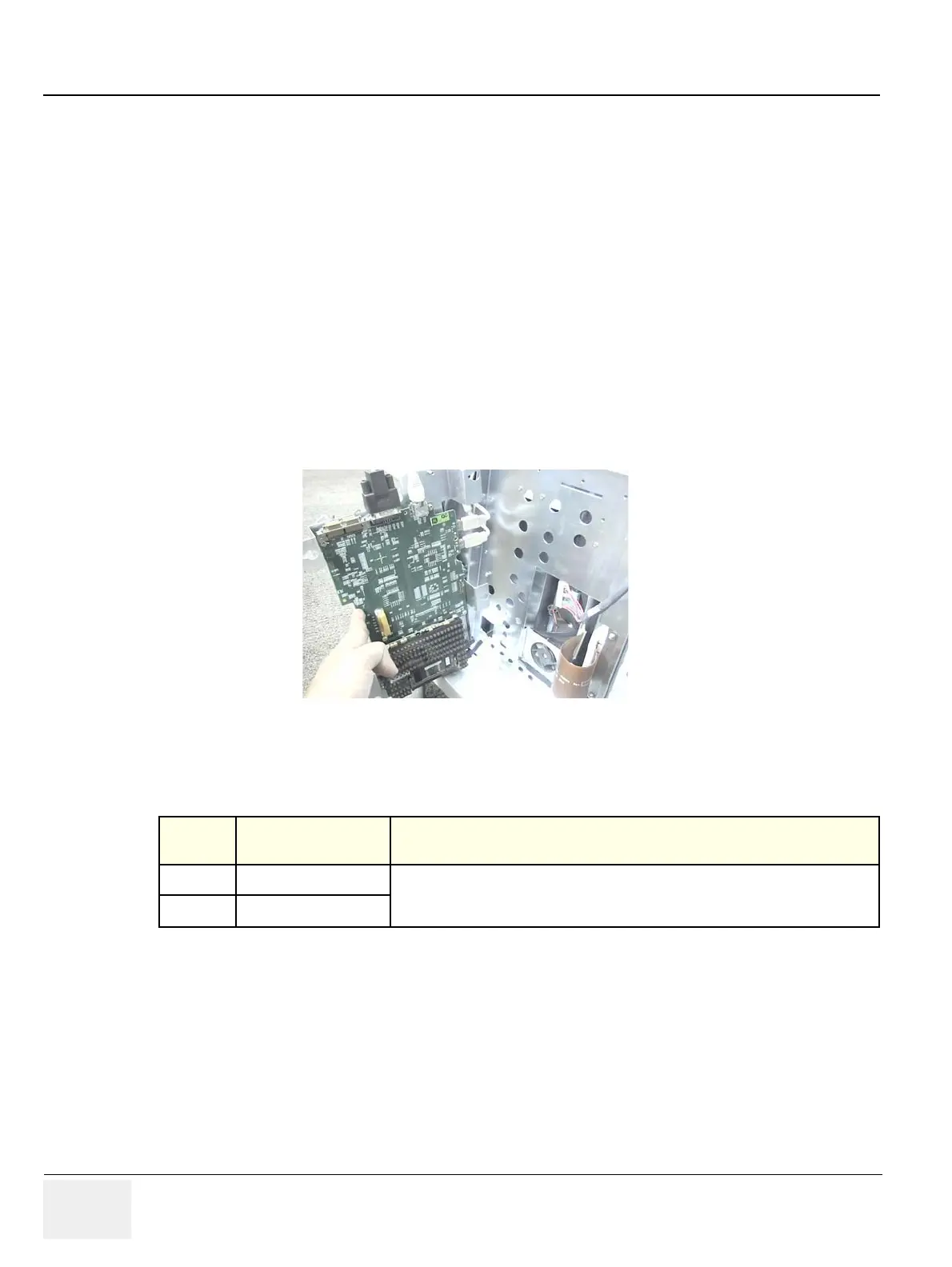

Figure 8-67 MST side FAN
8-5-3-5 Functional Checkout Procedure
See
Section
Functional Test Debrief Script
4-3-1 Power On/Boot Up
Service Manual Direction 5308917-100, Section 8-6-1. Equipment passes all required
tests and is ready for use.
4-3-2 Power Off/ Shutdown
To Next Page
