GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-35
8-4-3 Rear Cover (FRU No. 5315117)
Purpose: This is a description on how to remove and replace the Rear Cover.
8-4-3-1 Tools
• Common Phillips screwdrivers
8-4-3-2 Needed Manpower
• 1 persons, 15 minutes
8-4-3-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-3-4 Removal Procedure
1.) Remove RH-side cover from the system. Refer section 8-4-1 on page 32
2) Remove LH-side cover from the system.Refer section 8-4-2 on page 34
3) Remove the two screws (A,B) RH- side from the system.Refer Figure 8-39 on page 8-36

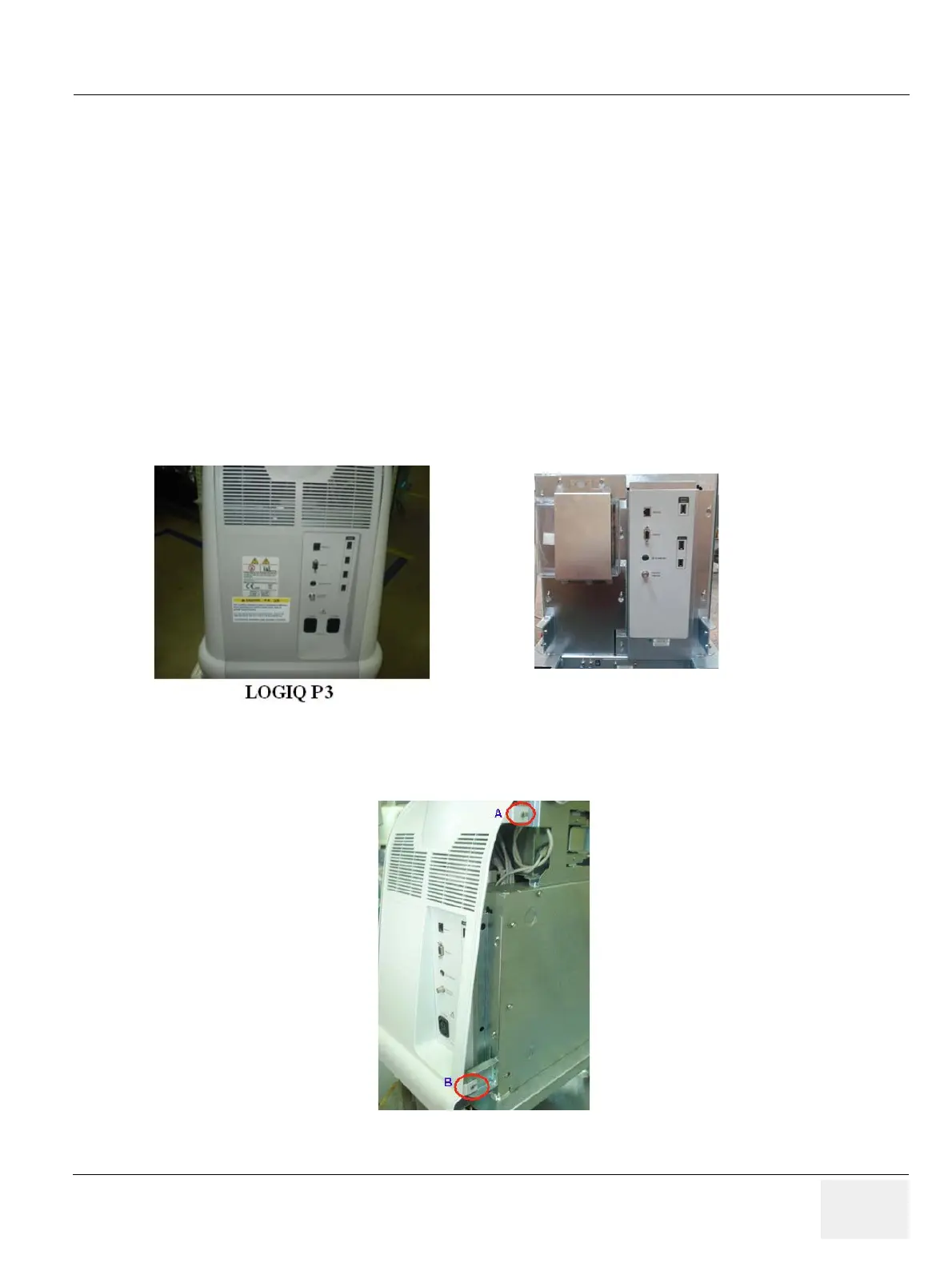

Figure 8-37 Rear cover
5) Loosen the two screws (A,B) LH- side from the system.Refer Figure 8-38 on page 8-35
Figure 8-38 Removing screws of rear cover
To Next Page
