IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-23

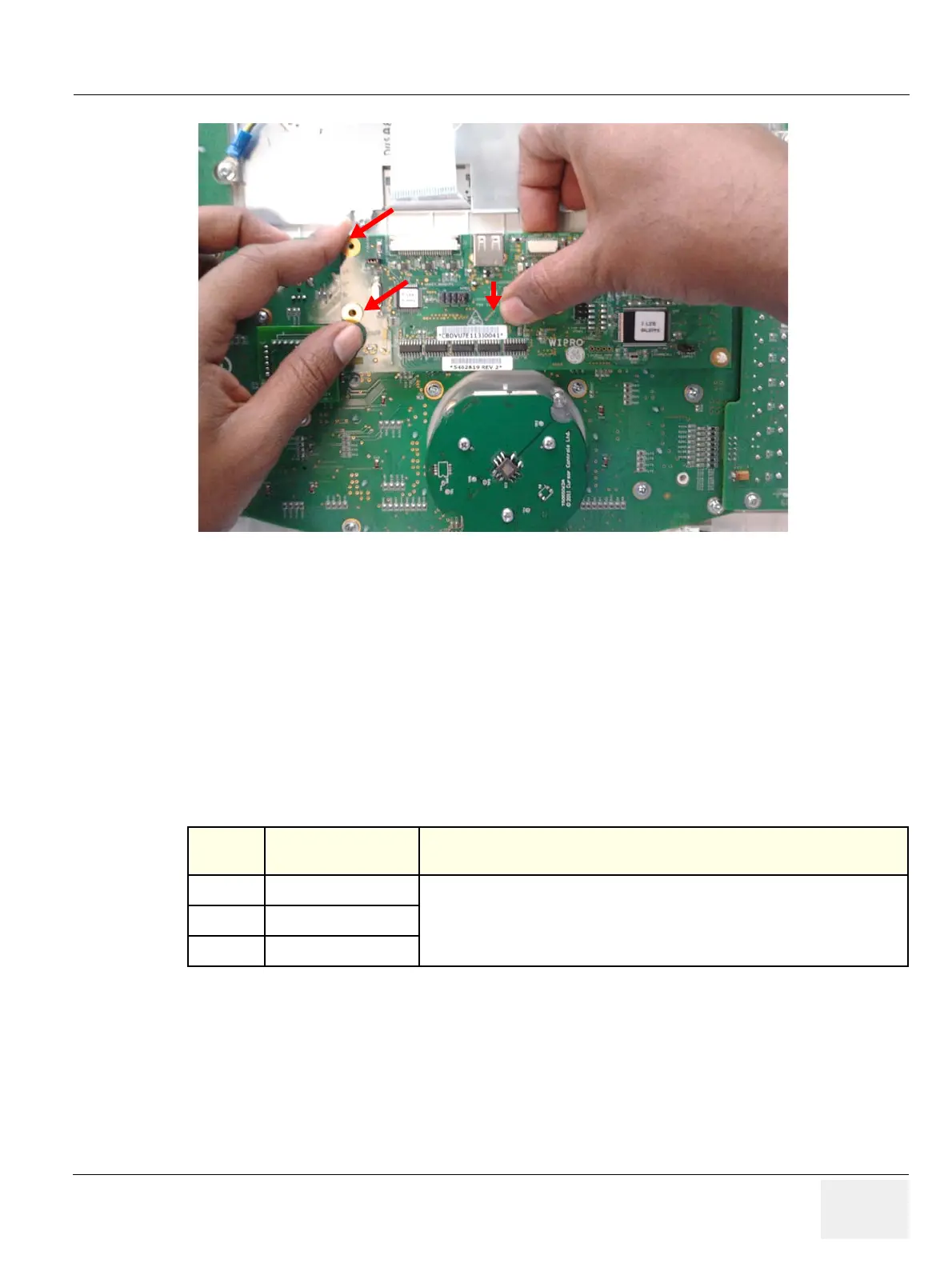

Figure 8-27 Controller board position
6.) Fix back the 4 screws that were removed in Step#3 above.
7.) Fix back all the cable connectors that were removed in Step#2 above. Ensure that the connectors
are fixed to their respective positions.
8.) Attach the keyboard top cover that was removed in Step#1 above.
8-2-10-1 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-2-10-2 Functional Checkout Procedure
See
Section Functional Test Debrief Script
4-3-1 Power On/Boot Up
Service Manual Direction 5308917-100, Section 8-2-7. Equipment passes all required
tests and is ready for use.
4-3-2 Power Off/ Shutdown
4-3-6 B Mode Checks
