6-2 Section 6-2 - Monitor Adjustments
Section 6-2
Monitor Adjustments
6-2-1 Adjustments Procedures
To adjust the brightness:
1. Contrast Indicator
2. Brightness Indicator
3. Dim Brightness Indicator
4. Light Button
5. Adjustment (-) Button
6. Toggle Button
7. Adjustment (+) Button
NOTE: Default Factory setting for Contrast & Bightness is 80 and Dim brightness 50 as shown in Fig A.
Dim brightness is the LCD lamp brightness control.
6-2-2 Monitor Calibration procedure.
1.Select Utility in A/N Keboard>Test patterns>Select the Brightness calibration and perform the monitor
calibration procedure as displayed in the monitor as shown in Fig B.

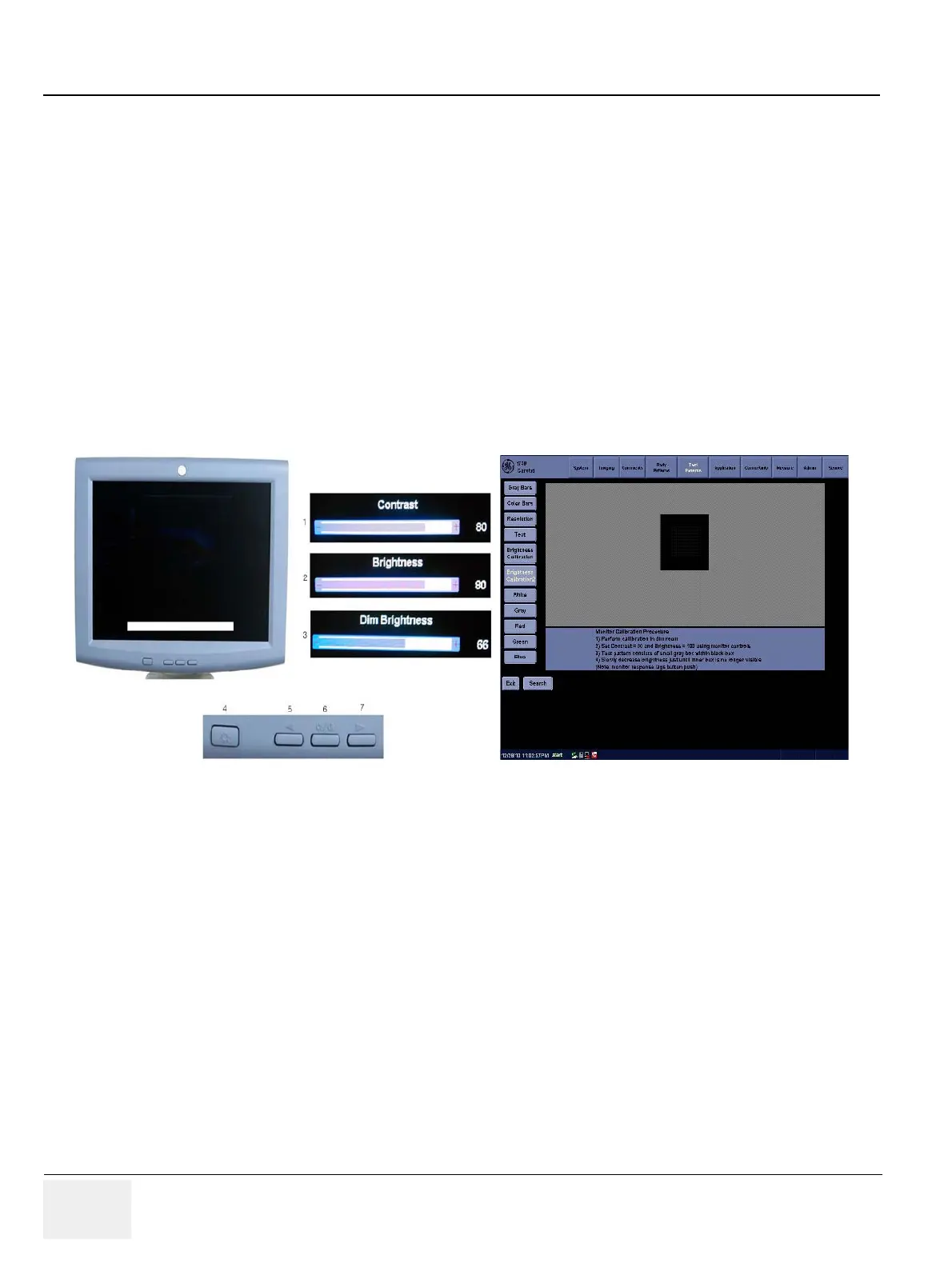

Figure 6-1 LCD Monitor
Fig. B
Fig. A
